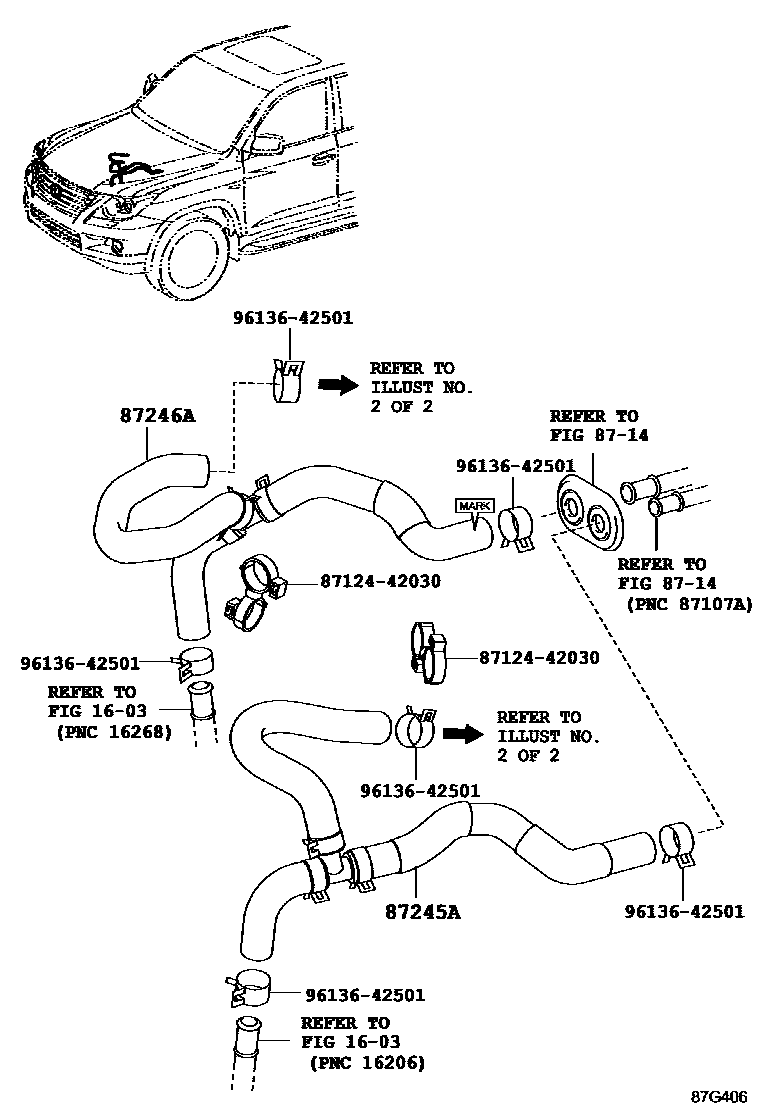

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR

1603

8714

87245HOSE, HEATER WATER, INLET

main87245-60B50iVDJ201¥390201509

NO.2

main99556-30100iVDJ201¥220201509

NO.1

87245AHOSE, HEATER WATER, INLET A

main87209-60C00iURJ201200711-201111

sub87209-60C01¥1,890

main87209-60C01iURJ201¥1,890201112-201509

main87209-60C21iVDJ201201509-201806

sub87209-60C22

main87209-60C22iVDJ201201807

87246AHOSE, HEATER WATER, OUTLET A

main87209-60C10iURJ201200711-200904

MARK=ORANGE

main87209-60C11iURJ201¥3,090200904-201111

MARK=WHITE

sub87209-60C12¥2,140

main87209-60C12iURJ201¥2,140201112-201509

main87209-60C31iVDJ201201509-201806

sub87209-60C32

main87209-60C32iVDJ201201807

8712442030CLAMP, HEATER

main87124-42030

9613642501

main96136-42501¥200

7 parts on this diagram · 4 diagrams in section
