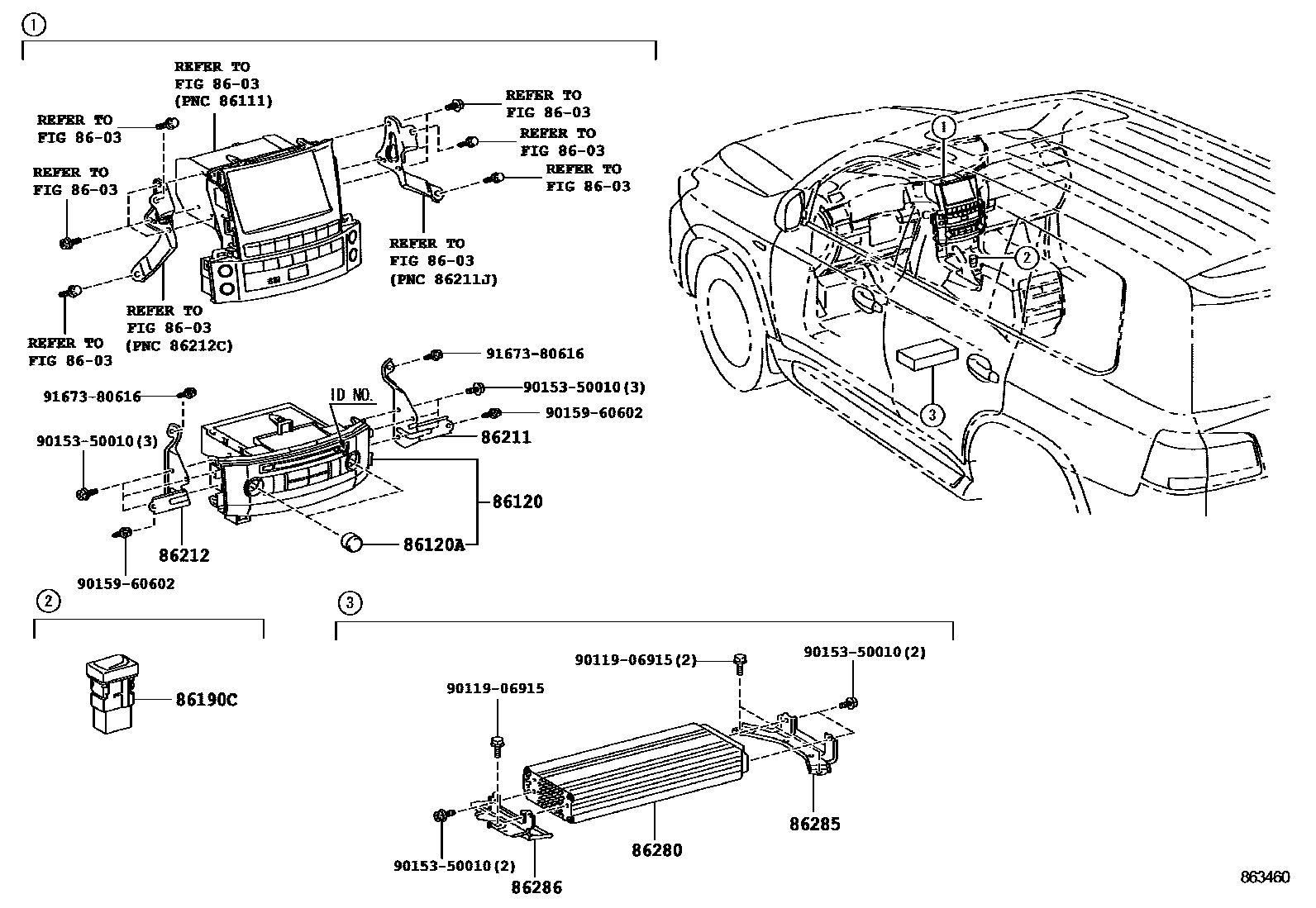

RADIO RECEIVER & AMPLIFIER & CONDENSER
8603
86120RECEIVER ASSY, RADIO
PIONEER,ID=P8607,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
PIONEER,ID=P8607
PIONEER,ID=P8607,EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
PIONEER,ID=P7519,TAIWAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+19SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
PIONEER,ID=P7519,TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
PIONEER,ID=P7521,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER
PIONEER,ID=P7521
PIONEER,ID=P7557,CHILE SPEC
PIONEER,ID=P7555,TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)
sub86120-60J11
PIONEER,ID=P8628,EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
PIONEER,ID=P8649,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
PIONEER,ID=P8649,EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
PIONEER,ID=P8649
86120AKNOB, RADIO RECEIVER SWITCH
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)
86190CADAPTER ASSY, STEREO JACK, NO.1
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
sub86280-60770
sub86280-0WA41
sub86280-0WD71
sub86280-60690
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER
86285BRACKET, AMPLIFIER, NO.1
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER
86286BRACKET, AMPLIFIER, NO.2
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER
9011906915
main90119-06915
9015350010
main90153-50010
9015960602
main90159-60602
9167380616
main91673-80616
13 parts on this diagram · 7 diagrams in section
