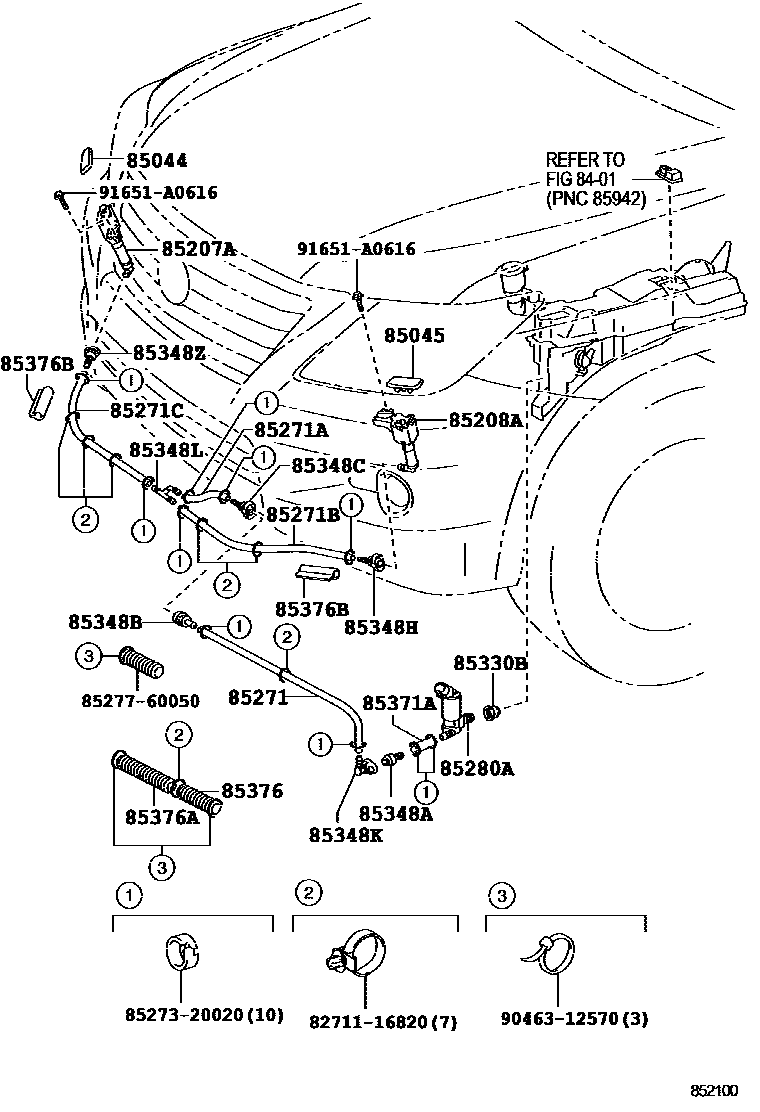

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
GRAY M.M.,1G8
BLACK,202
STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
BLUE M.M.,8U4
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
GRAY M.M.,1G8
BLACK,202
STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
BEIGE ME.,4T1
BLUE M.M.,8U4
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=850
L=900
85271AHOSE, HEADLAMP CLEANER, NO.2
L=140
L=190
85271BHOSE, HEADLAMP CLEANER, NO.3
L=670
L=1000
L=550
85271CHOSE, HEADLAMP CLEANER, NO.4
L=600
L=795
L=50
L=900
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=40
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527760050HOSE, HEADLAMP CLEANER, C
main85277-60050
9046312570
main90463-12570
91651A0616
main91651-A0616
27 parts on this diagram · 4 diagrams in section
