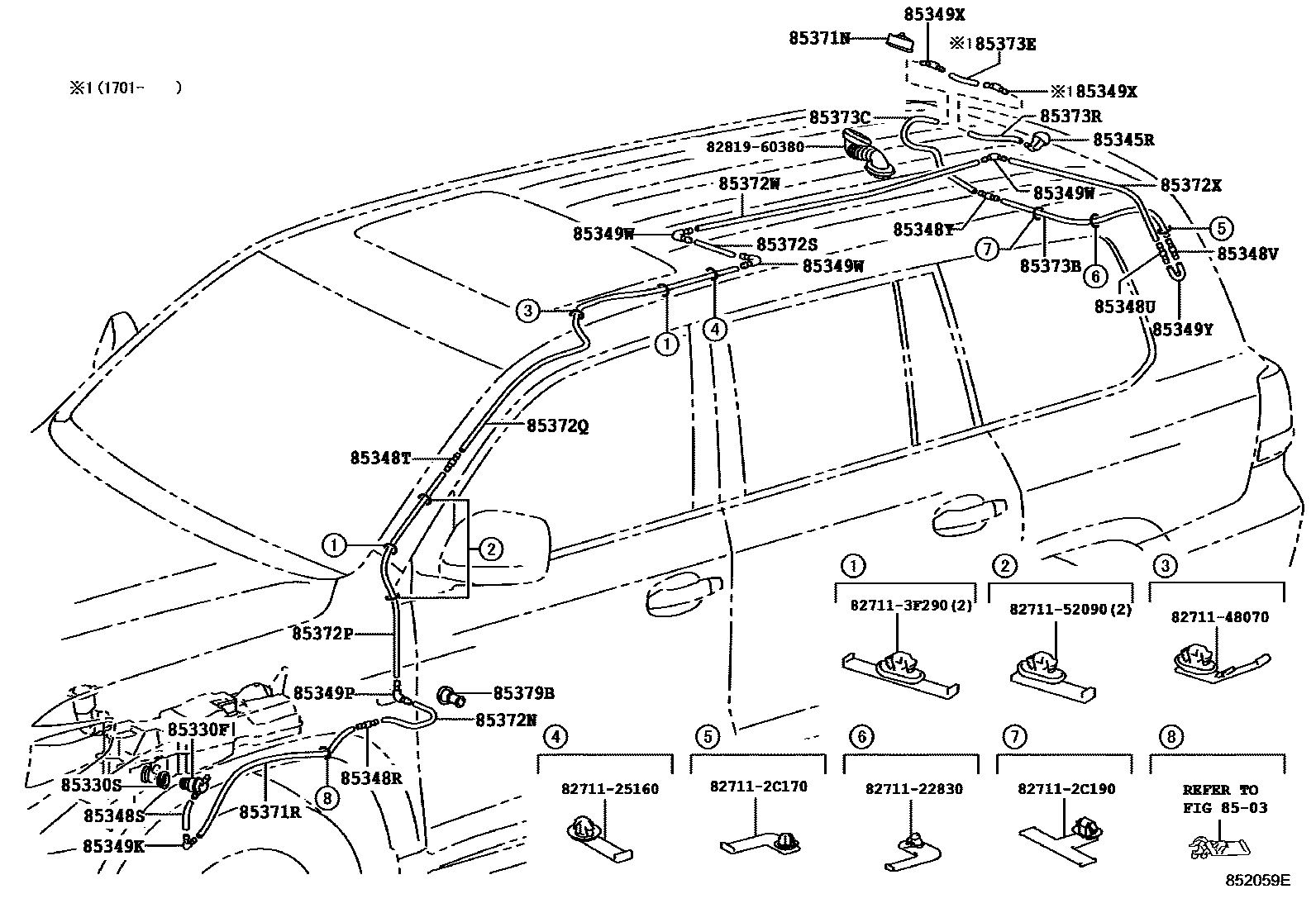

REAR WASHER
8503
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349WJOINT, REAR WASHER ELBOW, NO.4
MOON ROOF-WITH(REMOTE CONTROL)
85349XJOINT, REAR WASHER ELBOW, NO.6
85349YJOINT, REAR WASHER ELBOW, NO.5
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=610)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=220)
L=1450(*H,L=220),MOON ROOF-WITH(REMOTE CONTROL)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=700)
L=1450(*H,L=700),MOON ROOF-WITH(REMOTE CONTROL)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=1270),MOON ROOF-WITH(REMOTE CONTROL)
L=1450(*H,L=1270)
L=1450(*H,L=1340)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=100)
L=1450(*H,L=100),MOON ROOF-WITH(REMOTE CONTROL)
L=1640
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=340)
L=1550
L=1550,MOON ROOF-WITH(REMOTE CONTROL)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=340),MOON ROOF-WITH(REMOTE CONTROL)
L=1450(*H,L=490)
L=1450(*H,L=340)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1450(*H,L=420)
L=1450(*H,L=490)
L=1450(*H,L=490),MOON ROOF-WITH(REMOTE CONTROL)
85373CTUBE, REAR WASHER RUBBER
L=1450(*H,L=420)
L=1450(*H,L=420),MOON ROOF-WITH(REMOTE CONTROL)
85373ETUBE, REAR WASHER RUBBER
L=1450(*H,L=40)
L=1450(*H,L=40),MOON ROOF-WITH(REMOTE CONTROL)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=130)
L=1450(*H,L=130),MOON ROOF-WITH(REMOTE CONTROL)
85379BGROMMET, WASHER, A
8271122830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22830
8271125160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-25160
827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C170
827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C190
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48070
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8281960380GROMMET, WIRING HARNESS
main82819-60380
36 parts on this diagram · 2 diagrams in section
