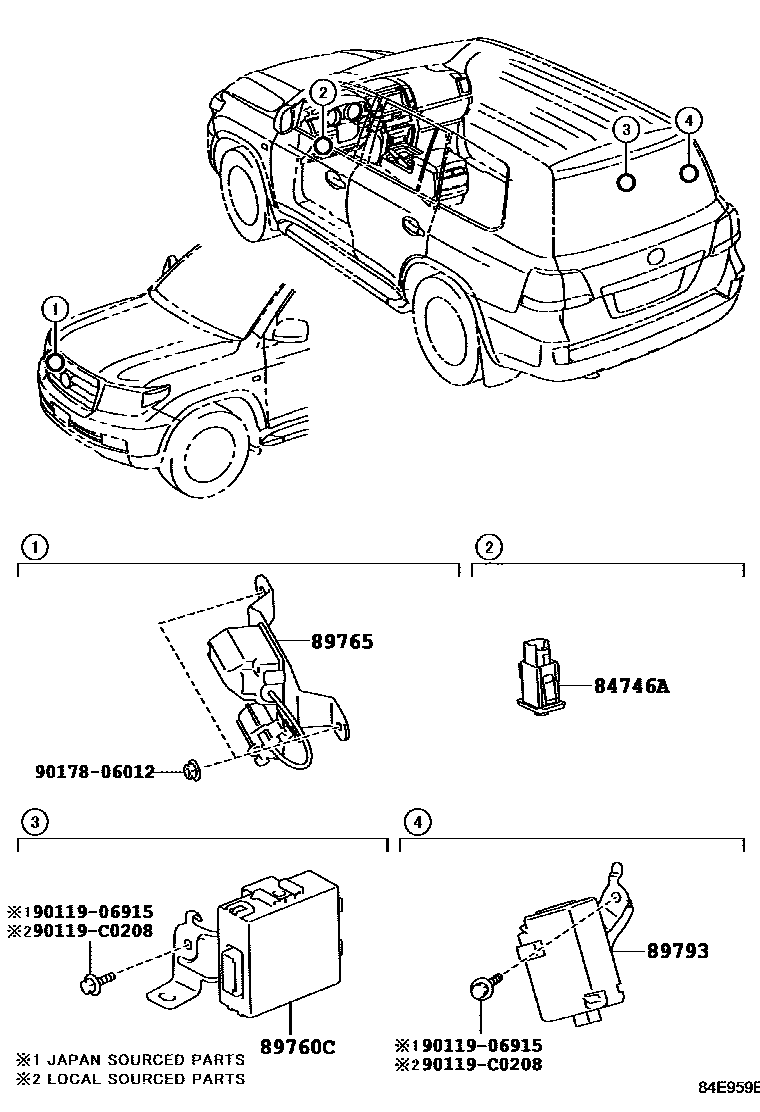

TIRE PRESSURE WARNING SYSTEM

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-50010i201301-201509

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-60070i201301-201408

main89760-60071i201408-201509

main89760-60100i201301-201408

CHILE SPEC

main89760-60120i201301-201509

TAIWAN SPEC

main89760-60240i201708-201709

MOROCCO SPEC

main89760-60241i201709-201908

MOROCCO SPEC

main89760-60250i201509-201908

VIETNAM SPEC

MOROCCO SPEC

AZERBAIJAN, GEORGIA, ARMENIA SPEC

AZERBAIJAN, GEORGIA, ARMENIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)

ARMENIA SPEC&&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)

SOUTH AMERICA SPEC

89765ANTENNA, TIRE PRESSURE, FRONT RH

main89765-60020i201301-201409

main89765-60021i201410-201908

89793ANTENNA, TIRE PRESSURE ROOF

main89793-60010i201301-201408

CHILE SPEC

main89793-60010i201301-201509

TAIWAN SPEC

main89793-60020i201301-201509

9011906915

90119C0208

9017806012

7 parts on this diagram · 2 diagrams in section
