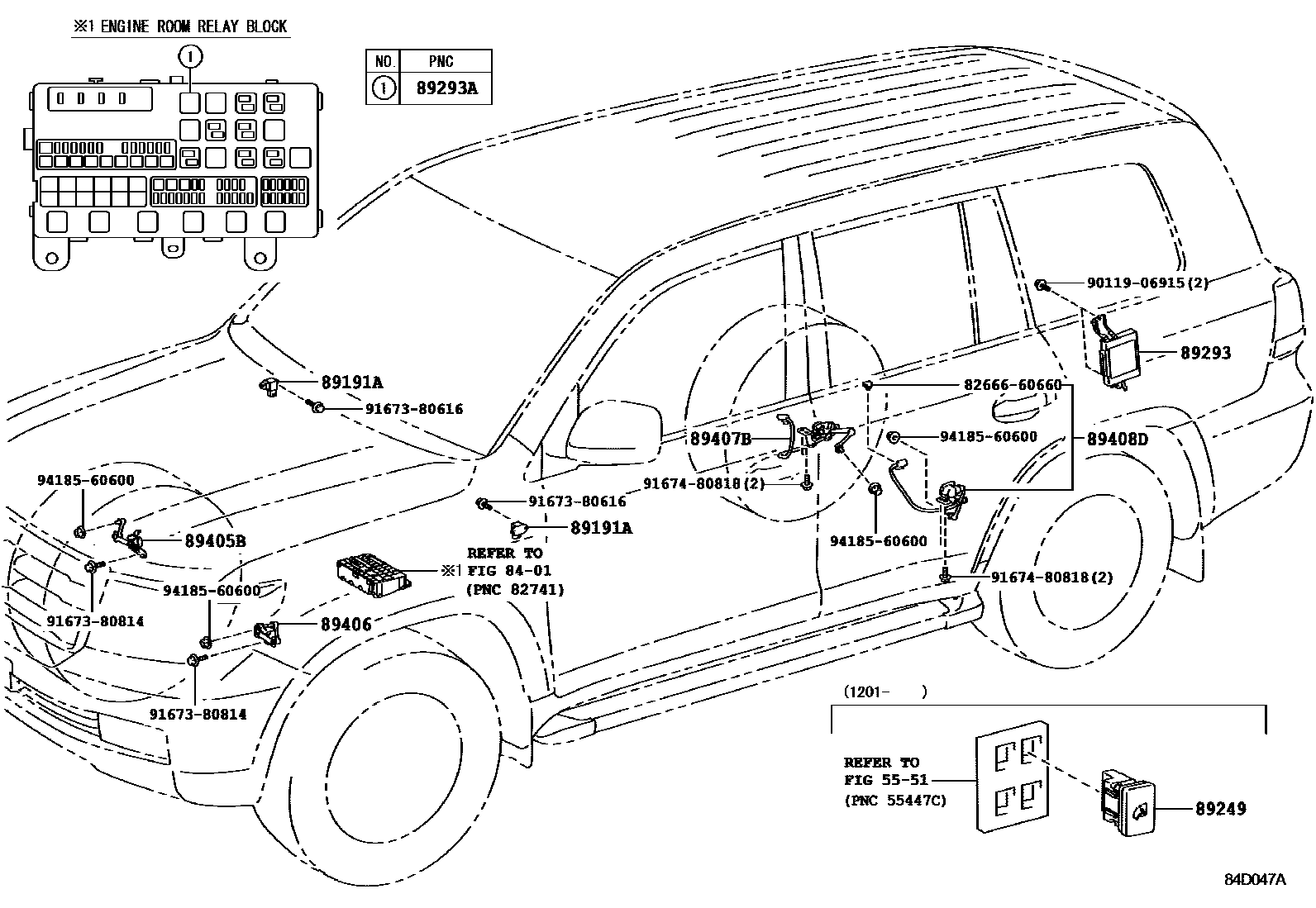

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

5551

8401

89191ASENSOR, ACCELERATION

main89191-22020iURJ201201201-201509

main89191-50020iURJ201200711-201201

89249SWITCH, ABSORBER CONTROL

main89249-60050iURJ201201201-201411

sub89249-60051

main89249-60051iURJ201201412-201509

89293COMPUTER, SUSPENSION CONTROL

main89293-60080iURJ201200711-200907

sub89293-60081

main89293-60081iURJ201200907-201201

main89293-60082iURJ201201201-201509

main89293-60083iURJ201,VDJ201201509

89293ARELAY, SUSPENSION CONTROL

main88263-21010iURJ201200711-201509

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-60020iURJ201200711-201509

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-60030iURJ201200711-201509

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-60030iURJ201200711-200805

sub89407-60031

main89407-60031iURJ201200806-201509

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-60020iURJ201200711-201201

main89408-60040iURJ201201201-201509

8266660660HOLDER, CONNECTOR

main82666-60660

9011906915

main90119-06915

9167380616

main91673-80616

9167380814

main91673-80814

9167480818

main91674-80818

9418560600

main94185-60600

16 parts on this diagram · 2 diagrams in section
