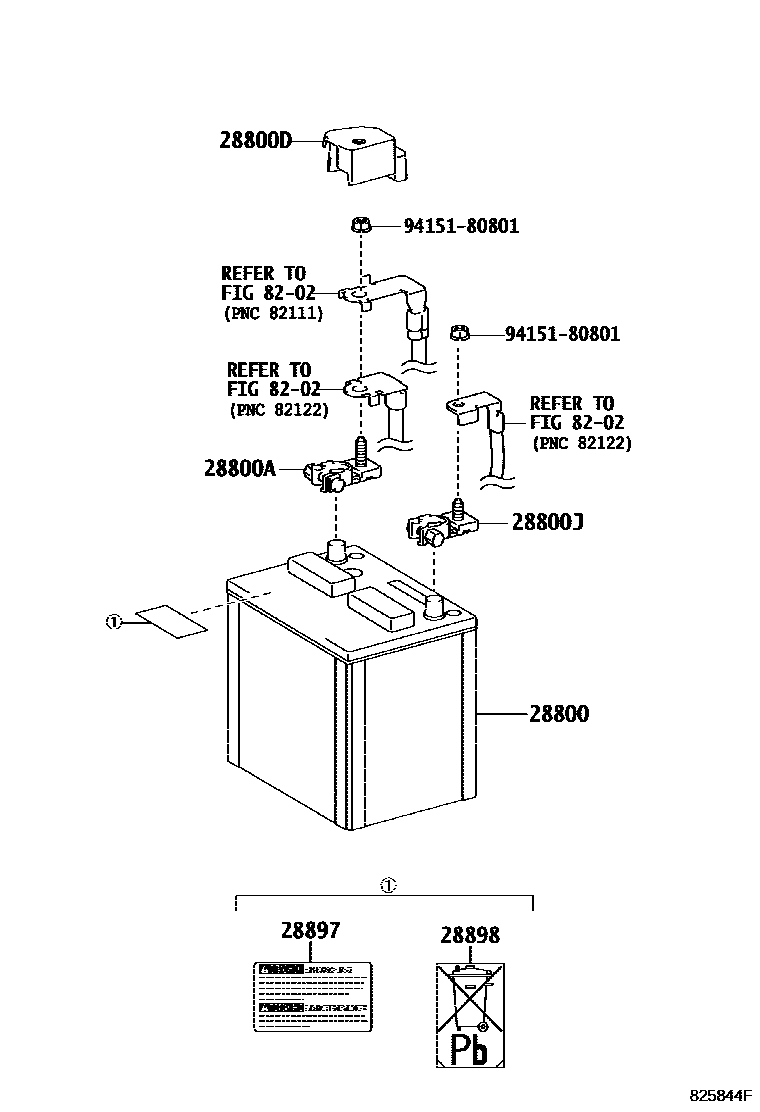

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-38200i1VDFTV..VDJ201201808

105D31L,FURUKAWA MAIN

sub28800-38201

main28800-38200i1VDFTV..VDJ201201808

105D31L,FURUKAWA

sub28800-38201

main28800-38210i1VDFTV..VDJ201201808

105D31R,FURUKAWA SUB

sub28800-38211

main28800-64251i3URFE..URJ201200711-201101

105D31L

sub28800-64905

main28800-64905i3URFE..URJ201201509-201808

105D31L,FURUKAWA MAIN

sub28800-38200

main28800-64905i3URFE..URJ201201101-201201

105D31L

sub28800-38200

main28800-64905i3URFE..URJ201201201-201808

105D31L,FURUKAWA

sub28800-38200

main28800-66013i3URFE..URJ201201205-201509

105D31L,GS YUASA

sub28800-66014

main28800-66013i3URFE..URJ201201509

105D31L,GS YUASA MAIN

sub28800-66014

main28800-67123i1VDFTV..VDJ201201509

105D31R,GS YUASA SUB

sub28800-67124

28800ATERMINAL, BATTERY POSITIVE

main82675-60020i3URFE..URJ201200711-201509

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60200i3URFE..URJ201200711-201907

sub82821-60201

main82821-60201i3URFE,1VDFTV..URJ201,VDJ201201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i3URFE..URJ201200711-201509

28897PLATE, BATTERY CAUTION

main28897-31040i3URFE..URJ201201201-201801

main28897-38070i3URFE..URJ201201802

WITHOUT(COLD AREA SPEC)

28898PLATE, BATTERY

main28898-46020i3URFE..URJ201200711-201201

8202

9415180801

main94151-80801

8 parts on this diagram · 2 diagrams in section
