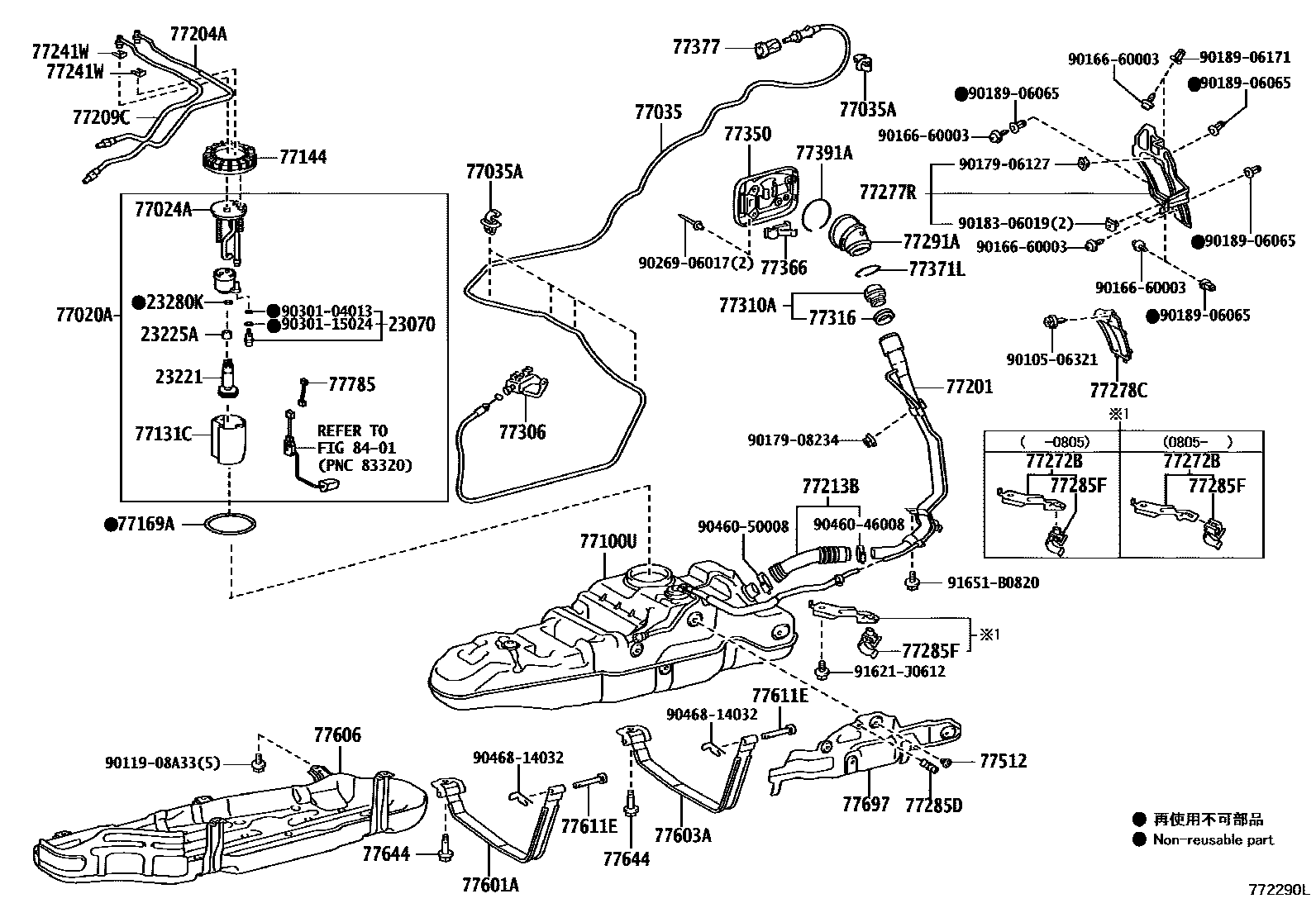

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK,W(FUEL SUB TANK) 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE, W/O(FUEL SUB TANK)0006 1FUEL TUBE,W(FUEL SUB TANK) 0007 1FUEL TUBE, W(FUEL SUB TANK) 0008 1FUEL TUBE,W(FUEL COOLER) 0009 1FUEL TUBE,W/O(FUEL COOLER)

23070VALVE ASSY, FUEL MAIN

main23070-38010i3URFE..URJ201200711-201509

23221PUMP, FUEL

main23220-38061i3URFE..URJ201202008

main23220-50270i3URFE..URJ201200711-200712

sub23220-50271

main23220-50271i3URFE..URJ201200712-202008

23225ASPACER, FUEL PUMP

main23225-23010i3URFE..URJ201200711-201509

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-08019i3URFE..URJ201200711-201509

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-60350iURJ201200711-200712

sub77020-60351

main77020-60351iURJ201200712-200811

sub77020-60352

main77020-60352iURJ201200812-201509

main77020-60540iURJ201201509-202008

main77020-60550iURJ201202008

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60210iURJ201200711-201507

sub77024-60211

main77024-60211iURJ201201508-202008

main77024-60242iVDJ201201509

main77024-60400iURJ201202008

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60140iURJ201200711-201509

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main90469-06005iURJ201200711-201509

77100UTANK SUB-ASSY, FUEL

main77001-60800iURJ201200711-200805

sub77001-60801

sub77205-60C01

main77001-60801iURJ201200805-202008

main77001-60811iVDJ201201509

main77001-60822iURJ201202008

77131CSUB-TANK, FUEL, NO.1

main77131-60120iURJ201200711-201509

main77131-60170iURJ201201509

main77131-60180iVDJ201201509

77144RETAINER, FUEL PUMP GAUGE

main77144-47020iURJ201200711-201509

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30050iVDJ201201509

main77169-47030iURJ201200711-201509

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60A70iURJ201200711-201506

sub77201-60C50

main77201-60B90iURJ201202008-202010

sub77201-60E80

sub77300-12020

sub77300-60050

main77201-60C50iURJ201201507-202008

sub77201-60E40

sub77300-12020

main77201-60C60iVDJ201201509-202010

sub77201-60E60

sub77300-12030

main77201-60E60iVDJ201202010

main77201-60E80iURJ201202010

77204ATUBE, FUEL TANK RETURN

main77204-60070iURJ201200711-201509

main77204-60110iVDJ201201509

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-60470iURJ201200711-201509

main77209-60480iVDJ201201509

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60310iURJ201201201-201509

FUEL TANK-WITH(SUB TANK)

main77213-60310iURJ201200711-201201

77241WCLIP, TUBE JOINT

main77241-33011iURJ201201201-201509

REAR NO.2 SEAT-WITHOUT

main77241-33011iURJ201201001-201201

main77241-33011iURJ201201509-202008

FUEL TANK-WITH(SUB TANK)

main77241-33011iVDJ201201509

NO.2:REFER ILLUST.

main77241-60310iVDJ201201509

NO.1:REFER ILLUST.

main77241-60320iURJ201200711-200912

77272BSUPPORT, BREATHER TUBE, NO.1

main77205-60C00iURJ201200711-200805

main77205-60C01iURJ201200805-201509

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60140iURJ201200711-201509

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-60020iURJ201200711-201509

77285BRACKET, FUEL TUBE

main77281-60400iVDJ201201509

77285DCLAMP, FUEL TUBE, NO.1

main77285-60840iURJ201200711-201509

main77285-60850iVDJ201201509

77285FCLAMP, FUEL TUBE, NO.1

main77197-60030iURJ201200711-200805

main77197-60031iURJ201200805-201509

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60120iURJ201200711-201509

main77291-60150iURJ201,VDJ201201509

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28060-A0iURJ201200711-201201

IVORY,TRIM0#

sub77306-28060

main77306-28060-B0iURJ201200711-201008

MD.GRAY,TRIM1#

sub77306-28060

main77306-28060-C0iURJ201200711-201201

BLACK,TRIM2#

sub77306-28060

main77306-58020-A1iURJ201201201-201509

IVORY,TRIM0#

sub77306-58020

main77306-58020-A1iURJ201,VDJ201201509

IVORY,TRIM02

sub77306-58020

main77306-58020-C0iURJ201,VDJ201201509

BLACK,TRIM05,06,2#,3#,4#,5#

sub77306-58020

main77306-58020-C0iURJ201201201-201509

BLACK,TRIM2#,3#,4#,5#

sub77306-58020

77310ACAP ASSY, FUEL TANK

main77300-12020iURJ201202010

main77300-12030iVDJ201202010

main77300-52030iURJ201,VDJ201200711-202010

77316GASKET, FUEL TANK CAP

main77316-52040iURJ201200711-201509

77350LID ASSY, FUEL FILLER OPENING

main77350-60090iURJ201200711-201509

main77350-60120iURJ201,VDJ201201509

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35040iURJ201200711-201509

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iURJ201200711-202101

main77371-60040iURJ201,VDJ201202102

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iURJ201200711-202102

77391ARING, FUEL INLET BOX

main77391-35020iURJ201200711-201509

main77391-60060iURJ201,VDJ201201509

77512BRACKET, FUEL TANK, REAR

main77512-35140iURJ201200711-201509

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60310iURJ201200711-201509

main77601-60390iURJ201,VDJ201201509

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-60110iURJ201200711-201509

main77602-60140iURJ201,VDJ201201509

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60170iURJ201200711-201509

77611EPIN, FUEL TANK BAND

main77653-35040iURJ201200711-201509

77644BOLT, FUEL TANK

main77644-35030iURJ201200711-201509

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-60010iURJ201200711-201509

77785HARNESS, FUEL PUMP

main77785-60010iURJ201200711-201803

sub77785-60011

main77785-60011iURJ201201804

8401

9010506321

main90105-06321

9011908A33

main90119-08A33

9016660003

main90166-60003

9017906127

main90179-06127

9017908234

main90179-08234

9018306019

main90183-06019

9018906065

main90189-06065

9018906171

main90189-06171

9026906017

main90269-06017

9030104013

main90301-04013

9030115024

main90301-15024

9046046008

main90460-46008

9046050008

main90460-50008

9046814032

main90468-14032

91621J0612

main91621-J0612

91651B0820

main91651-B0820

57 parts on this diagram · 9 diagrams in section
