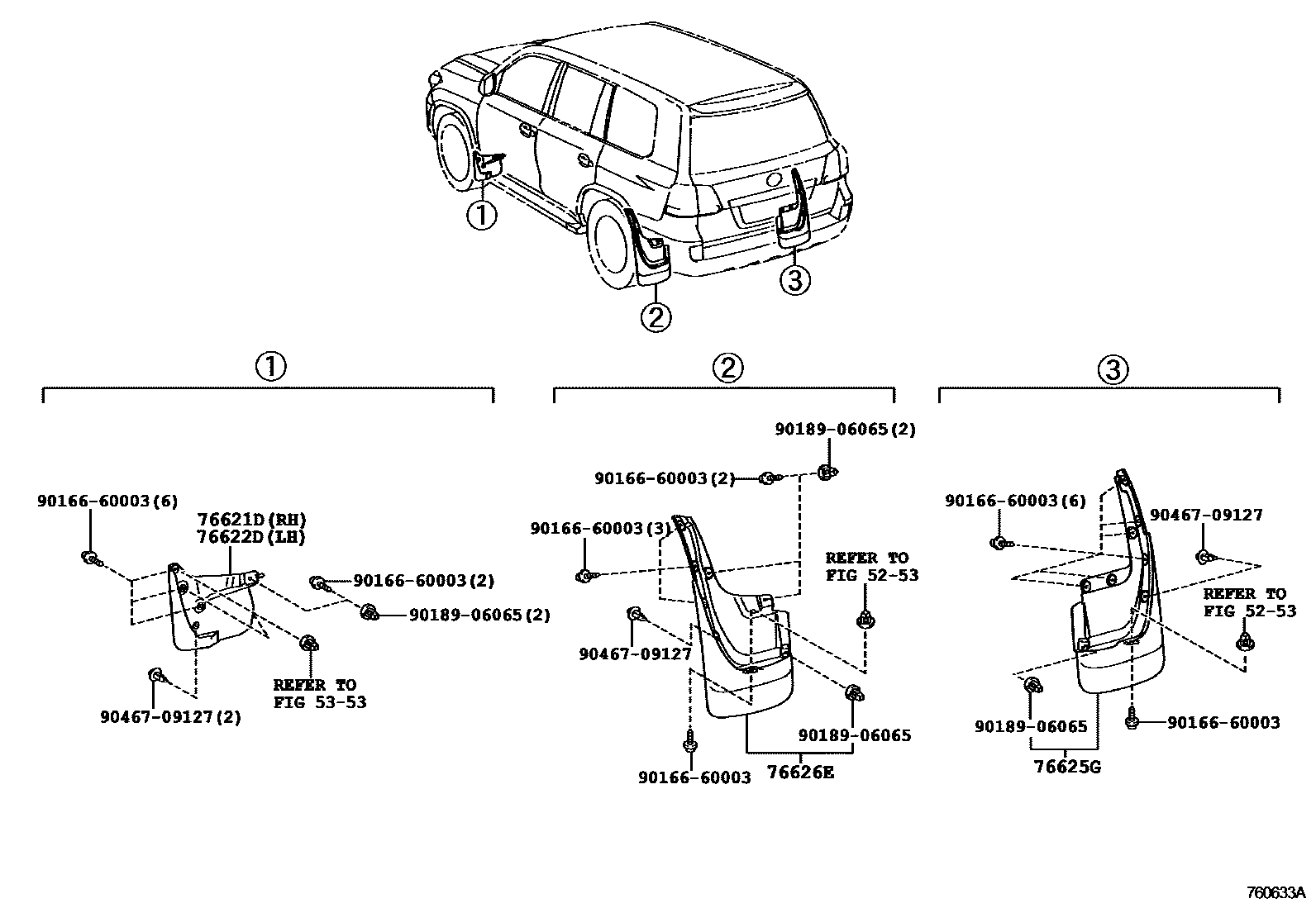

SPOILER & SIDE MUDGUARD

0001 1MUD GUARD 0002 1MUD GUARD 0003 1REAR SPOILER 0004 1REAR SPOILER

5253

5353

76621DMUDGUARD, FRONT FENDER, RH

main76621-60160iURJ201¥1,770200711-201509

main76621-60190iURJ201,VDJ201¥3,060201509

76622DMUDGUARD, FRONT FENDER, LH

main76622-60130iURJ201¥1,770200711-201509

main76622-60160iURJ201,VDJ201¥3,060201509

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-60200iURJ201¥5,400201201-201509

main76625-60240iURJ201¥1,770200711-201201

main76625-60360iURJ201,VDJ201¥4,670201509

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-60200iURJ201¥4,320201201-201509

main76626-60240iURJ201¥1,770200711-201201

main76626-60360iURJ201,VDJ201¥4,670201509

9016660003

main90166-60003¥60

9018906065

main90189-06065¥80

9046709127

main90467-09127¥180

9 parts on this diagram · 4 diagrams in section
