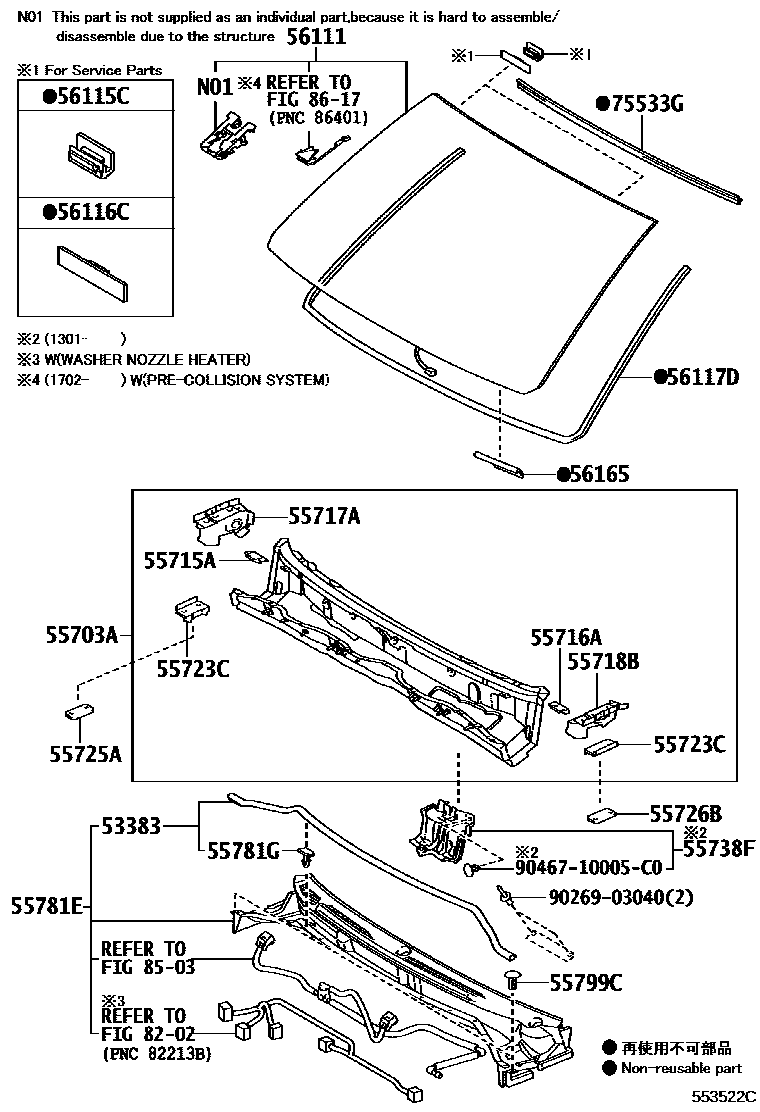

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60070iURJ201200711-201509

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-60290iURJ201200711-201212

main55703-60430iURJ201201301-201509

55715ABRACE, COWL TOP TO APRON, RH

main55715-60040iURJ201200711-201509

55716ABRACE, COWL TOP TO APRON, LH

main55716-60040iURJ201200711-201509

55717APANEL, COWL TOP SIDE, INNER RH

main55717-60050iURJ201200711-201509

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-60060iURJ201200711-201509

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-60020iURJ201200711-201509

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-60040iURJ201200711-201509

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-60040iURJ201200711-201509

55738FCOVER, FRONT PANEL, LH

main55738-60020iURJ201,VDJ201201301-201509

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60130iURJ201200711-201008

sub55708-60131

main55708-60131iURJ201201009-201301

main55708-60190iURJ201,VDJ201201509-201801

sub55708-60191

main55708-60191iURJ201,VDJ201201802

main55708-60200iURJ201201301-201509

sub55708-60360

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iURJ201200711-201808

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-60020iURJ201200711-201509

56111GLASS, WINDSHIELD

main56101-60906iURJ201200711-201201

*LAM,T=5.36,GREEN

sub56101-60925

main56101-60925iURJ201201201-201212

*LAM,T=5.36,GREEN

sub56101-60943

main56101-60938iURJ201201301-201307

*LAM,T=5.36,GREEN

sub56101-60958

main56101-60958iURJ201201307-201509

*LAM,T=5.36,GREEN

main56101-60986iURJ201,VDJ201201509-201908

sub56101-6A961

main56101-6A961iURJ201,VDJ201201908

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iURJ201200711-201509

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iURJ201200711-201509

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-60100iURJ201200711-201509

L=2914

sub56117-64010

main56117-60100iURJ201,VDJ201201509

L=2914,CHILE SPEC

sub56117-64010

main56117-60100iURJ201,VDJ201201509

L=2914,AZERBAIJAN, GEORGIA, ARMENIA SPEC

sub56117-64010

main56117-60100iURJ201,VDJ201201509

L=2914,PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

sub56117-64010

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-60010iURJ201200711-201509

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60050iURJ201200711-201310

sub75531-60070

main75531-60070iURJ201201311-201412

sub75531-60080

main75531-60080iURJ201201501-201509

8202

8503

8617

9026903040

main90269-03040

9046710005C0

main90467-10005C0

24 parts on this diagram · 1 diagram in section
