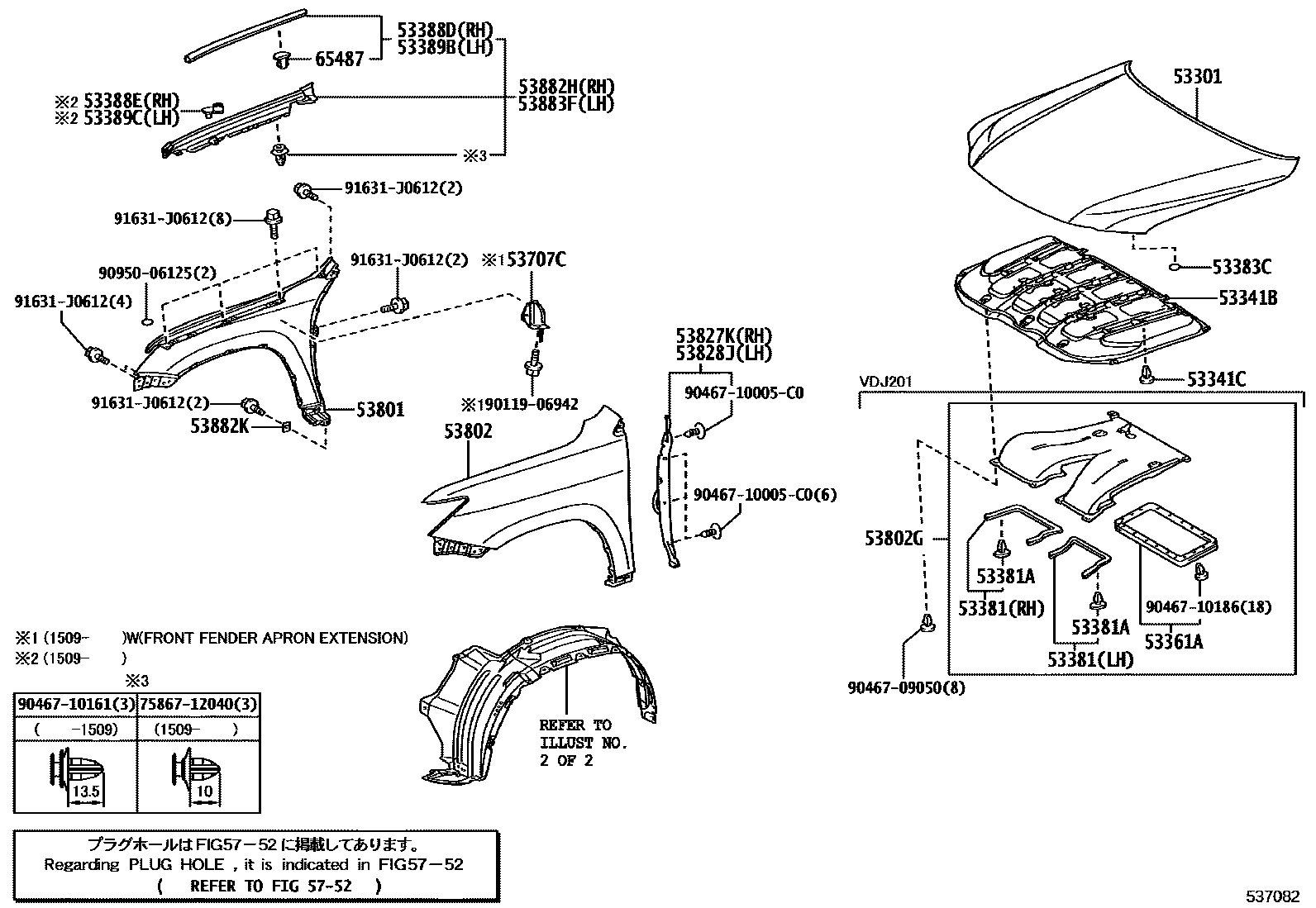

HOOD & FRONT FENDER
53341CCLIP(FOR HOOD INSULATOR)
53361AWEATHERSTRIP, HOOD
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383CSEAL, HOOD TO COWL TOP
53388DSEAL, HOOD TO FRONT FENDER, RH
53388ESEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53389CSEAL, HOOD TO FRONT FENDER, LH
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)
WITHOUT(COLD AREA SPEC)&EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(EGR) & WITHOUT(OBD)
WITHOUT(COLD AREA SPEC)&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53802GDUCT,COOLING FAN AIR
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53882HSEAL, FRONT FENDER MAIN, RH
53882KSEAL, FRONT FENDER
TAIWAN SPEC
53883FSEAL, FRONT FENDER MAIN, LH
5752
65487CLIP, CORNER PROTECTOR
7586712040MOULDING, FRONT PANEL
main75867-12040
9011906942
main90119-06942
9046709050
main90467-09050
9046710005C0
main90467-10005C0
9046710161
main90467-10161
9046710186
main90467-10186
9095006125
main90950-06125
91631J0612
main91631-J0612
30 parts on this diagram · 2 diagrams in section
