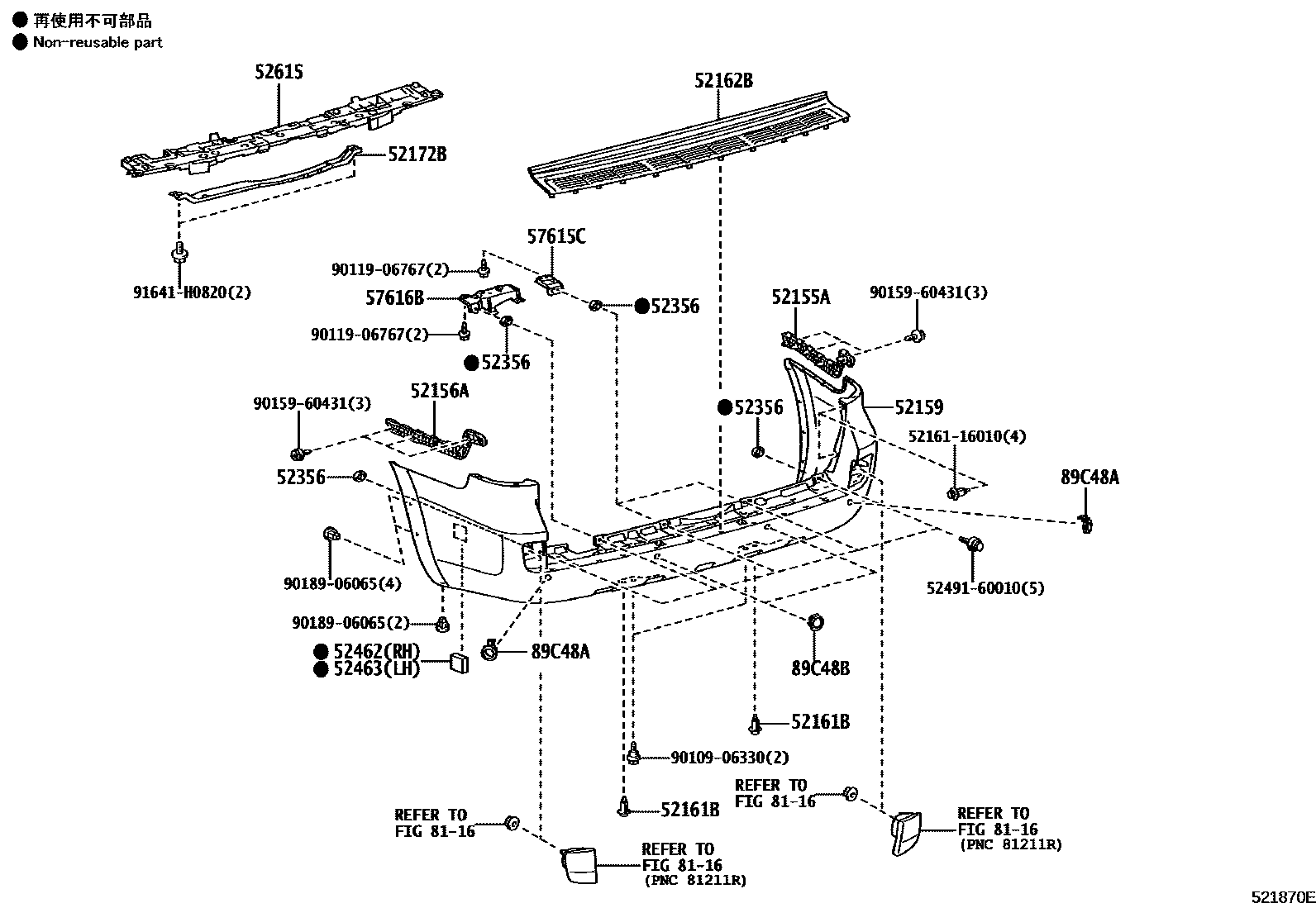

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52162BPLATE, REAR BUMPER, NO.1
52172BREINFORCEMENT, REAR BUMPER, NO.2
52356CUSHION, REAR BUMPER STEP
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52615ABSORBER, REAR BUMPER ENERGY
57615CBRACKET, REAR BUMPER ARM
57616BBRACKET, REAR BUMPER ARM
8116
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BLUE M.M.,8U4
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE),BLUE M.M.,8U4
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
5249160010BOLT, BUMPER PAD
main52491-60010
9010906330
main90109-06330
9011906767
main90119-06767
9015960431
main90159-60431
9018906065
main90189-06065
91641H0820
main91641-H0820
22 parts on this diagram · 3 diagrams in section
