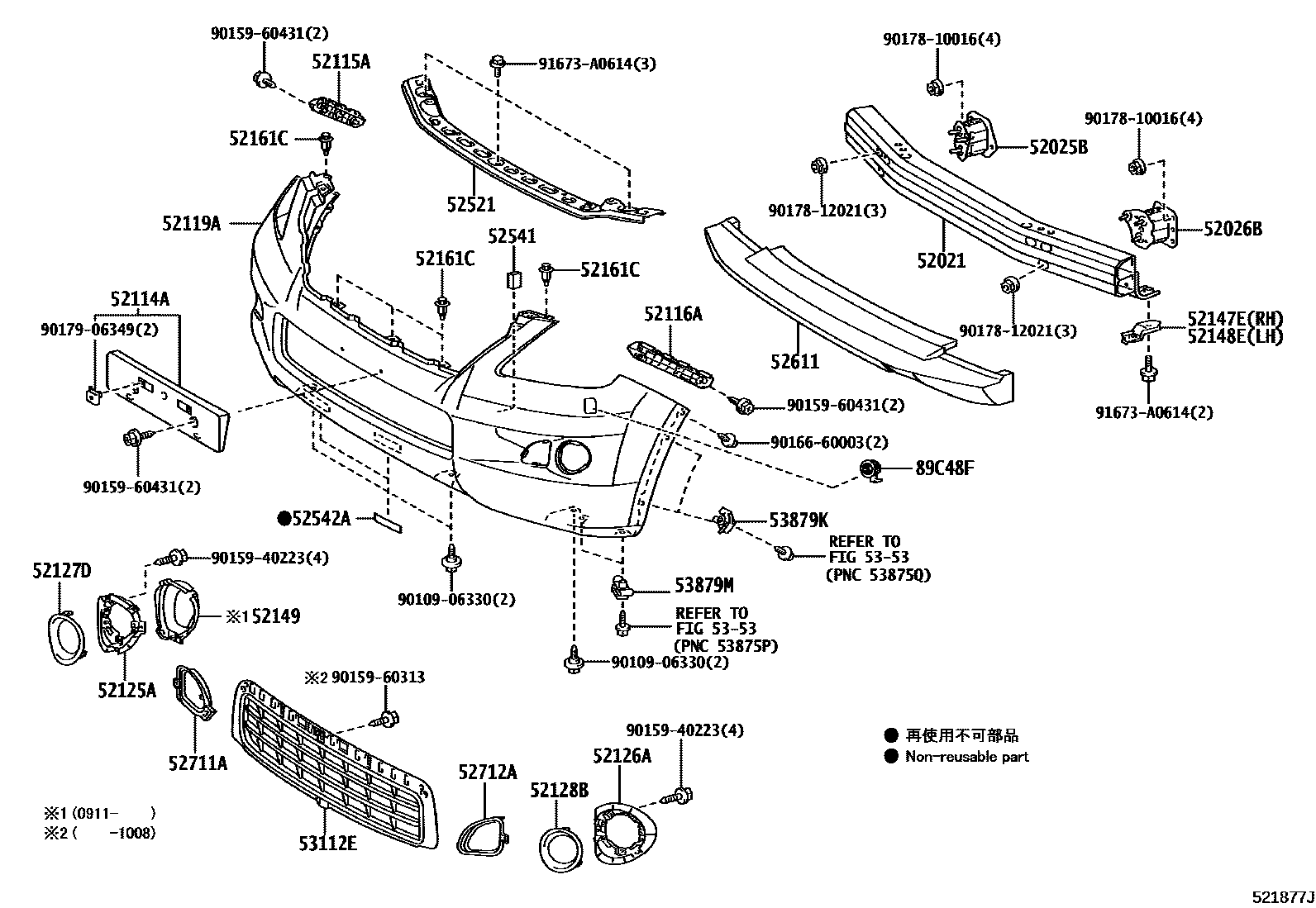

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60140i200711-201509

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60030i200711-201604

sub52025-60031

main52025-60031i201605

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60030i200711-201604

sub52026-60031

main52026-60031i201605

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-60070i200711-201201

main52114-60160i201201-201509

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60150i200711-201201

main52115-60180i201201-201509

main52115-60210i201509

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60190i200711-201201

main52116-60220i201201-201509

main52116-60260i201509

52119ACOVER, FRONT BUMPER

main52119-6A911i201008-201201

PAINT REQ.

main52119-6A913i200711-200803

PAINT REQ.

main52119-6A970i201201-201509

PAINT REQ.

main52119-6B973i201509

PAINT REQ.

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-60020i200711-200910

sub52125-60070

main52125-60070i200911-201201

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-60010i200711-201201

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-60050i200711-200803

main52127-60060i200803-201201

sub52127-60061

main52127-60140i201201-201407

sub52127-60141

main52127-60141i201408-201509

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-60050i200711-200803

main52128-60060i200803-201201

sub52128-60061

main52128-60150i201201-201407

sub52128-60151

main52128-60151i201408-201509

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-60070i200711-201509

main52147-60110i201509

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-60110i201509

main52148-60040i200711-201509

52149BRACKET, FRONT BUMPER, INNER

main52149-60080i200911-201201

main52149-60100i201201-201509

52161CPIECE, FRONT BUMPER

main52161-16010i200711-201509

sub52161-0K040

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60090i200711-201201

main52521-60140i201201-201509

main52521-60180i201509

52541PROTECTOR, FRONT BUMPER

main52541-60060i200711-201201

52542APROTECTOR, FRONT BUMPER, NO.2

main52542-60020i200711-201509

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60060i200711-201201

main52611-60100i201201-201509

main52611-60150i201509

52711AGARNISH, FRONT BUMPER

main52711-60040i200711-201201

main52711-60050i201201-201509

52712AGARNISH, FRONT BUMPER, LH

main52712-60010i200711-201201

main52712-60020i201201-201509

53112EGRILLE, RADIATOR, LOWER NO.1

main53102-60010i201201-201509

NO PAINT REQ.

main53112-60080i200711-201201

NO PAINT REQ.

5353

53879KRETAINER, FRONT FENDER LINER

main53879-58010i200711-201509

53879MRETAINER, FRONT FENDER LINER

main90467-05138i200711-201509

89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE

main89348-33060-A3i201008-201201

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),WHITE PEARL CS.,077

sub89348-33060

main89348-33060-A3i201008-201201

WHITE PEARL CS.,077

sub89348-33060

main89348-33060-A3i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),WHITE PEARL CS.,077

sub89348-33060

main89348-33060-B3i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),PREMIUM SILVER,1F2

sub89348-33060

main89348-33060-B3i201008-201201

PREMIUM SILVER,1F2

sub89348-33060

main89348-33060-B3i201008-201201

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),PREMIUM SILVER,1F2

sub89348-33060

main89348-33060-B6i201008-201201

GRAY M.M.,1G8

sub89348-33060

main89348-33060-B6i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GRAY M.M.,1G8

sub89348-33060

main89348-33060-B6i201008-201201

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),GRAY M.M.,1G8

sub89348-33060

main89348-33060-C0i201008-201201

BLACK,202

sub89348-33060

main89348-33060-C4i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),STARLIGHT BLACK GF.,217

sub89348-33060

main89348-33060-C4i201008-201201

STARLIGHT BLACK GF.,217

sub89348-33060

main89348-33060-C4i201008-201201

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),STARLIGHT BLACK GF.,217

sub89348-33060

main89348-33060-D3i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK.RED MC.CS.,3R7

sub89348-33060

main89348-33060-D3i201008-201201

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),DK.RED MC.CS.,3R7

sub89348-33060

main89348-33060-D3i201008-201201

DK.RED MC.CS.,3R7

sub89348-33060

main89348-33060-E4i201008-201201

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH),BEIGE ME.,4T1

sub89348-33060

main89348-33060-E4i201008-201201

BEIGE ME.,4T1

sub89348-33060

main89348-33060-E4i201008-201201

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BEIGE ME.,4T1

sub89348-33060

main89348-60010i201509

main89348-71010-A2i201201-201509

WHITE PEARL CS.,077

sub89348-71010

main89348-71010-C0i201201-201509

BLACK,202

sub89348-71010

main89348-71010-C4i201201-201509

STARLIGHT BLACK GF.,217

sub89348-71010

main89348-71010-D1i201301-201408

GARNET RED MC.,3S0

sub89348-71010

main89348-71010-D4i201201-201301

DK.RED MC.CS.,3R7

sub89348-71010

main89348-71010-E1i201201-201509

SLEEK ECRU ME.,4U7

sub89348-71010

main89348-71010-P0i201201-201301

PREMIUM SILVER,1F2

sub89348-71010

main89348-71010-P1i201201-201509

MERCURY GRAY MC.,1H9

sub89348-71010

main89348-71010-P3i201301-201509

PLATINUM SILVER ME.,1J4

sub89348-71010

9010906330

main90109-06330

9015940223

main90159-40223

9015960313

main90159-60313

9015960431

main90159-60431

9016660003

main90166-60003

9017810016

main90178-10016

9017812021

main90178-12021

9017906349

main90179-06349

91673A0614

main91673-A0614

35 parts on this diagram · 3 diagrams in section
