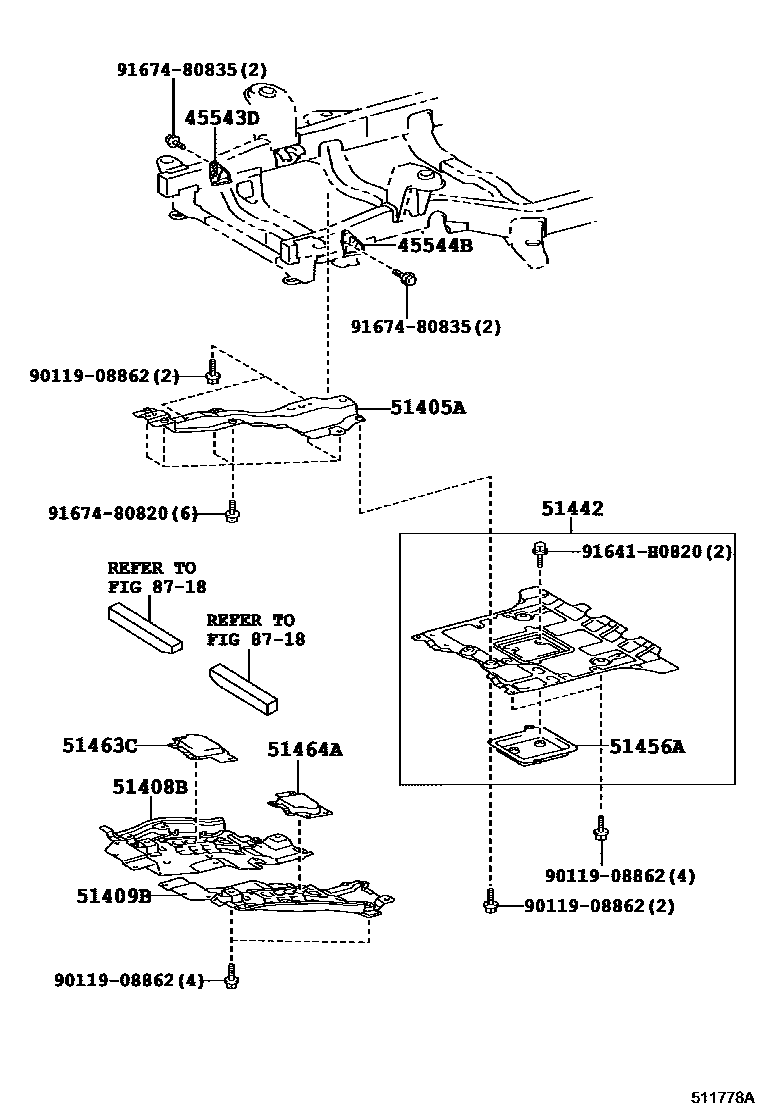

SUSPENSION CROSSMEMBER & UNDER COVER

45543DPROTECTOR, STEERING RACK BOOT, RH

main45543-60020iURJ201200711-201509

45544BPROTECTOR, STEERING RACK BOOT, LH

main45544-60020iURJ201200711-201509

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60200iURJ201200711-201201

sub51405-60250

main51405-60250iURJ201201201-201509

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-60050iURJ201200711-201509

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-60050iURJ201200711-201201

sub51409-60100

main51409-60100iURJ201201201-201509

51442COVER, ENGINE UNDER, NO.2

main51420-60090iURJ201200711-201509

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-60070iURJ201200711-201509

51463CSILENCER, ENGINE UNDER COVER, RH

main51477-60010iURJ201200711-201509

51464ASILENCER, ENGINE UNDER COVER, LH

main51478-60040iURJ201200711-201509

8718

9011908862

main90119-08862

91641H0820

main91641-H0820

9167480820

main91674-80820

9167480835

main91674-80835

14 parts on this diagram · 1 diagram in section
