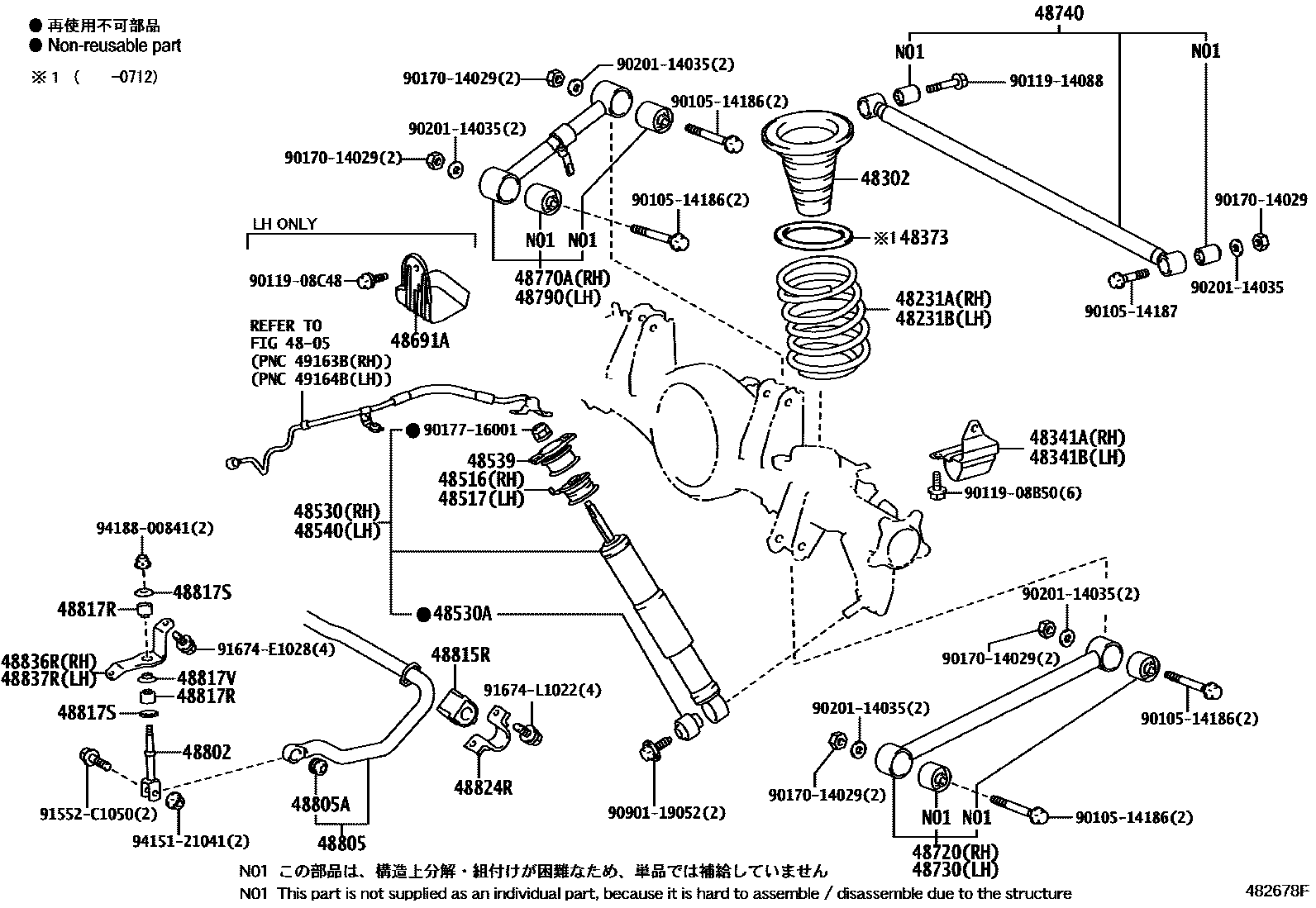

REAR SPRING & SHOCK ABSORBER
4805
48302SPRING SUB-ASSY, HOLLOW
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48373SPACER, REAR SPRING
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60180
MARK 48530-60450,FOR EGYPT SPEC
MARK 48530-60460,FOR EGYPT SPEC
48530ABUSH(FOR REAR SHOCK ABSORBER)
48539BRACKET, ACTUATOR SUPPORT, RR
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60180
MARK 48530-60450,FOR EGYPT SPEC
MARK 48530-60460,FOR EGYPT SPEC
48691AINSULATOR, UPPER ARM BUSH, HEAT
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48802LINK SUB-ASSY, STABILIZER
48805BAR SUB-ASSY, REAR STABILIZER
48805ABUSH(FOR REAR STABILIZER BAR)
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48824RBRACKET, STABILIZER(FOR REAR)
48836RBRACKET, REAR STABILIZER END, RH
48837RBRACKET, REAR STABILIZER END, LH
9010514186
main90105-14186
9010514187
main90105-14187
9011908B50
main90119-08B50
9011908C48
main90119-08C48
9011914088
main90119-14088
9017014029
main90170-14029
9017716001
main90177-16001
9020114035
main90201-14035
9090119052
main90901-19052
91552C1050
main91552-C1050
91674E1028
main91674-E1028
91674L1022
main91674-L1022
9415121041
main94151-21041
9418800841
main94188-00841
43 parts on this diagram · 1 diagram in section
