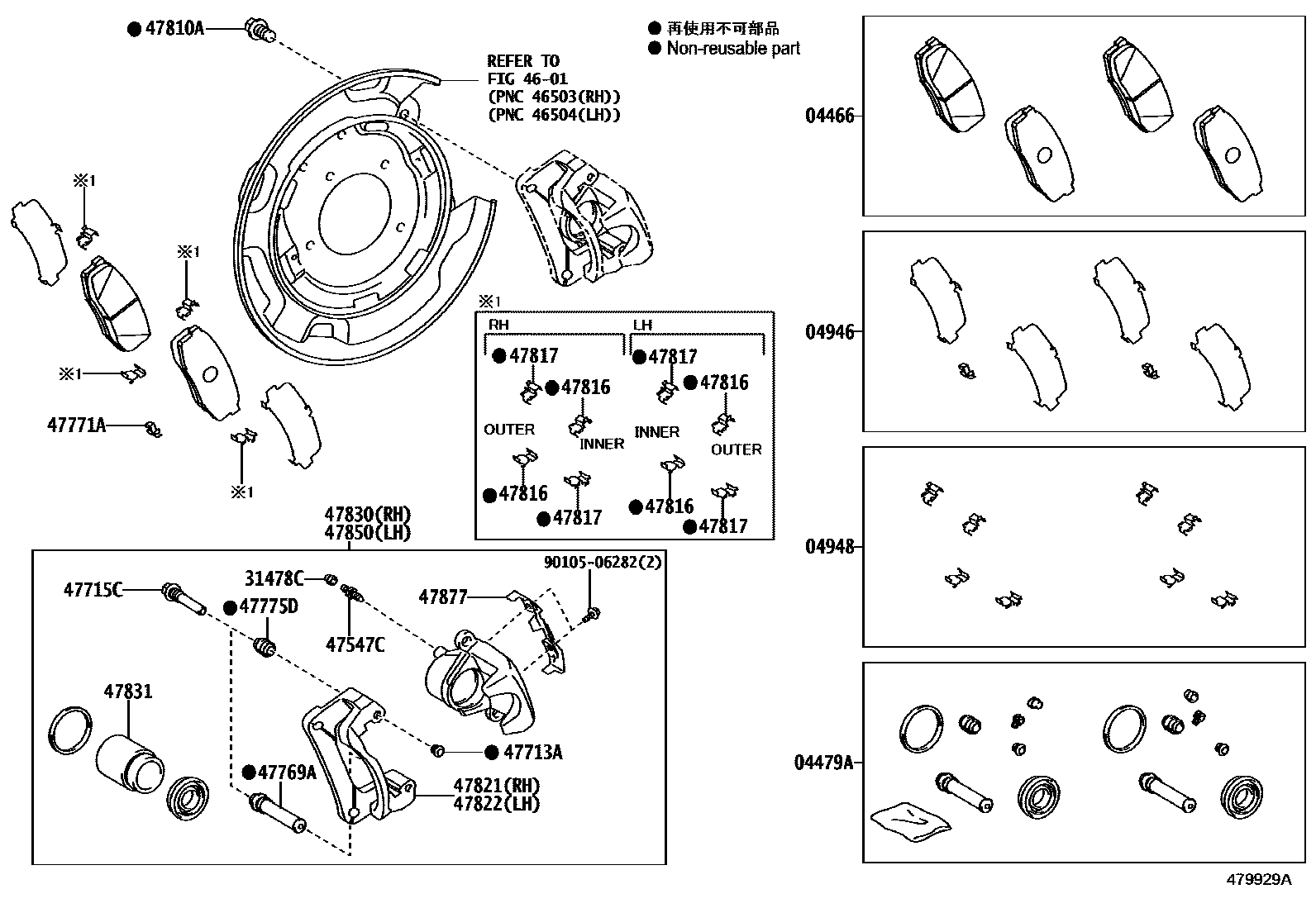

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK ADVICS PS558H
MARK ADVICS VC044
MARK ADVICS VC107
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)
47821MOUNTING, REAR DISC BRAKE CYLINDER, RH
47822MOUNTING, REAR DISC BRAKE CYLINDER, LH
47830CYLINDER ASSY, DISC BRAKE, REAR RH
47831PISTON, REAR DISC BRAKE
47850CYLINDER ASSY, DISC BRAKE, REAR LH
47877PROTECTOR, REAR DISC BRAKE DUST BOOT
9010506282
main90105-06282
22 parts on this diagram · 1 diagram in section
