DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
sub04423-33060
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATION PRESSUREWARNING-WITH(1 ANTENNA)
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1ANTENNA)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
sub04423-33060
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATION PRESSUREWARNING-WITH(1 ANTENNA)
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1ANTENNA)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
42601WHEEL, DISC
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,TYPE Y:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D11
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60D12
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
sub42611-60E21
18X8J, #,TYPE Y:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATIONPRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
18X8J, #,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
18X8J, #,TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA),TYPE Y:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-30071
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATION PRESSUREWARNING-WITH(1 ANTENNA)
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1ANTENNA)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
sub42607-30071
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATION PRESSUREWARNING-WITH(1 ANTENNA)
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1ANTENNA)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
4260BCOVER SUB-ASSY, WHEEL HUB
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATION PRESSUREWARNING-WITH(1 ANTENNA)
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1ANTENNA)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATION PRESSUREWARNING-WITH(1 ANTENNA)
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1ANTENNA)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
42611WCAP, TIRE VALVE (FOR SPARE)
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED&TIRE INFLATION PRESSUREWARNING-WITH(1 ANTENNA)
TIRE & DISC WHEEL-275/50R21, 8.5J, ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH(1ANTENNA)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
TIRE INFLATION PRESSURE WARNING-WITH(1 ANTENNA)
42652TIRE
42652ATIRE (FOR SPARE)

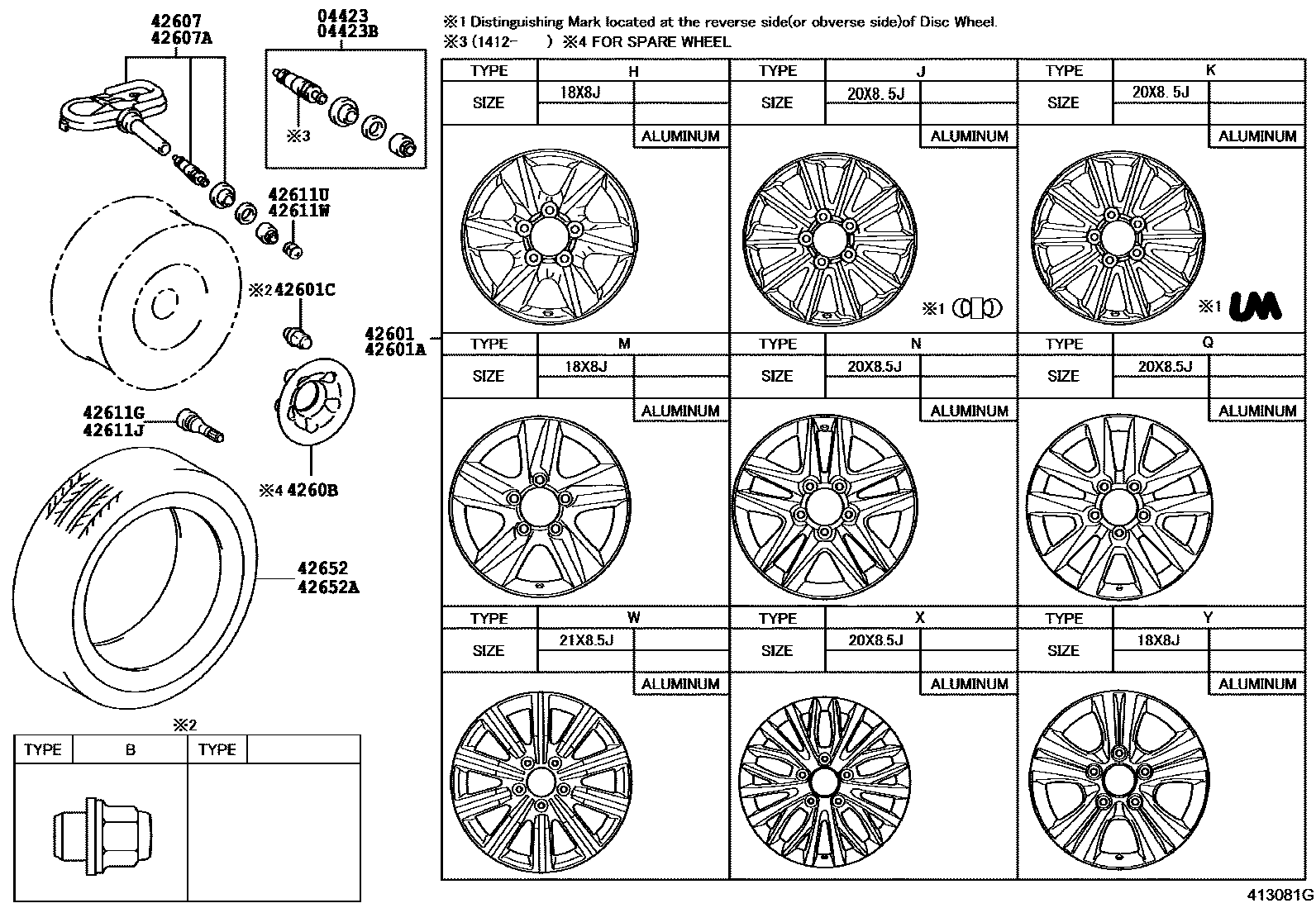

14 parts on this diagram · 4 diagrams in section
