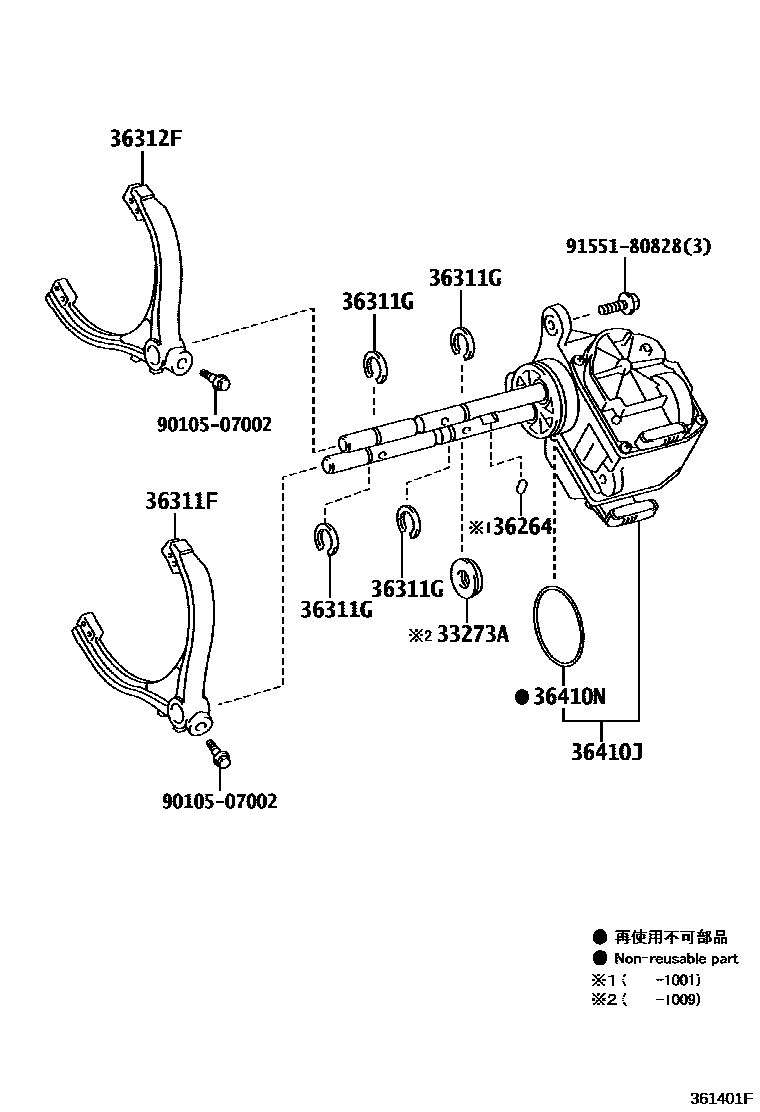

TRANSFER LEVER & SHIFT ROD
33273AWASHER, SHIFT LEVER SHAFT HOUSING, NO.1
36264PIN OR ROLLER, SHIFT INTER-LOCK
L=14.7,OD=6
36311FFORK, TRANSFER GEAR SHIFT, NO.1
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36410JACTUATOR ASSY, TRANSFER SHIFT
TAIWAN SPEC
UKRAINE SPEC
CHILE SPEC
sub36410-60112
ARMENIA SPEC&
UKRAINE SPEC
CHILE SPEC
AZERBAIJAN, GEORGIA, ARMENIA SPEC
MOROCCO SPEC
SOUTH AMERICA SPEC
VIETNAM SPEC
TAIWAN SPEC
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC
36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)
9010507002
main90105-07002
9155180828
main91551-80828
9 parts on this diagram · 1 diagram in section
