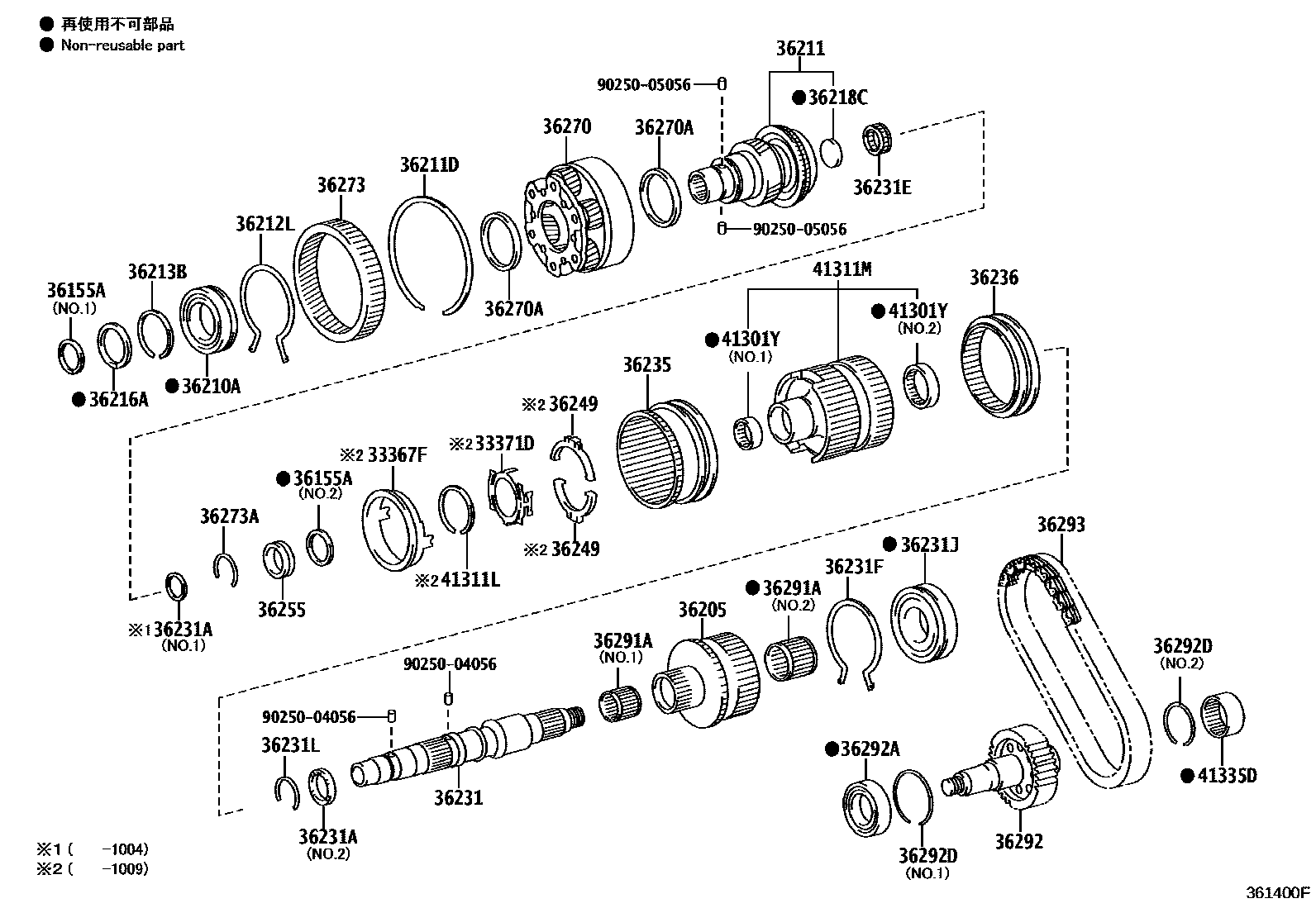

TRANSFER GEAR
33367FRING, SYNCHRONIZER, NO.1
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
36155ARING, TRANSFER OIL SEAL
NO.1
NO.2
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
T=2.0
36212LRING, SHAFT SNAP
T=2.4
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.13,MARK C
T=2.18,MARK D
T=2.23,MARK E
T=2.28,MARK F
T=2.33,MARK G
T=2.38,MARK H
T=2.43,MARK J
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36218CPLUG, TRANSFER INPUT SHAFT
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
T=7.0,NO.2
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.4
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231LRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)
T=3.0
36236SLEEVE, FRONT DRIVE CLUTCH
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
NO.1
NO.2
36292DRING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET)
T=1.0,NO MARK,NO.2
T=1.8,MARK B,NO.1
36293CHAIN, TRANSFER FRONT DRIVE
41301YBEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE)
NO.1
NO.2
41311LRING, SHAFT SNAP(FOR CENTER DIFFERENTIAL CASE)
T=1.0
9025004056
main90250-04056
9025005056
main90250-05056
36 parts on this diagram · 1 diagram in section
