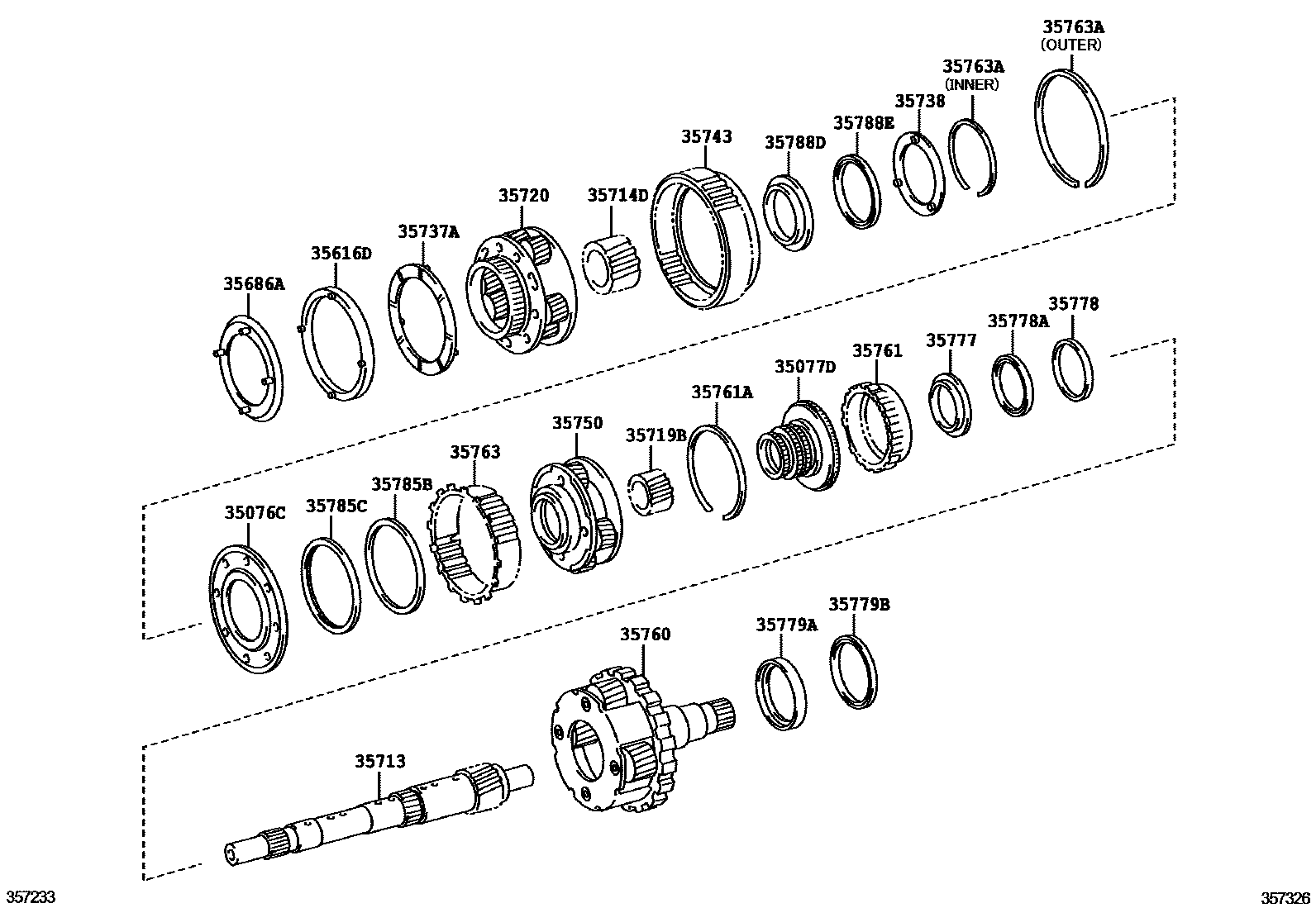

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
(L)
(J)
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35713SHAFT, INTERMEDIATE
(L)
(J)
35737WASHER, PLANETARY CARRIER THRUST
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
(L)
(J)
35761GEAR, REAR PLANETARY RING
(L)
(L)
(J)
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
(J)
(L)
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
INNER
OUTER
35777RACE, THRUST BEARING, NO.7
(L)
(J)
35778RACE, THRUST BEARING, NO.8
(L)
(J)
35778ABEARING, THRUST NEEDLE ROLLER
(J)
(L)
35779ARACE, THRUST BEARING, NO.9
(L)
(J)
35779BBEARING, THRUST NEEDLE ROLLER
(J)
(L)
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
27 parts on this diagram · 2 diagrams in section
