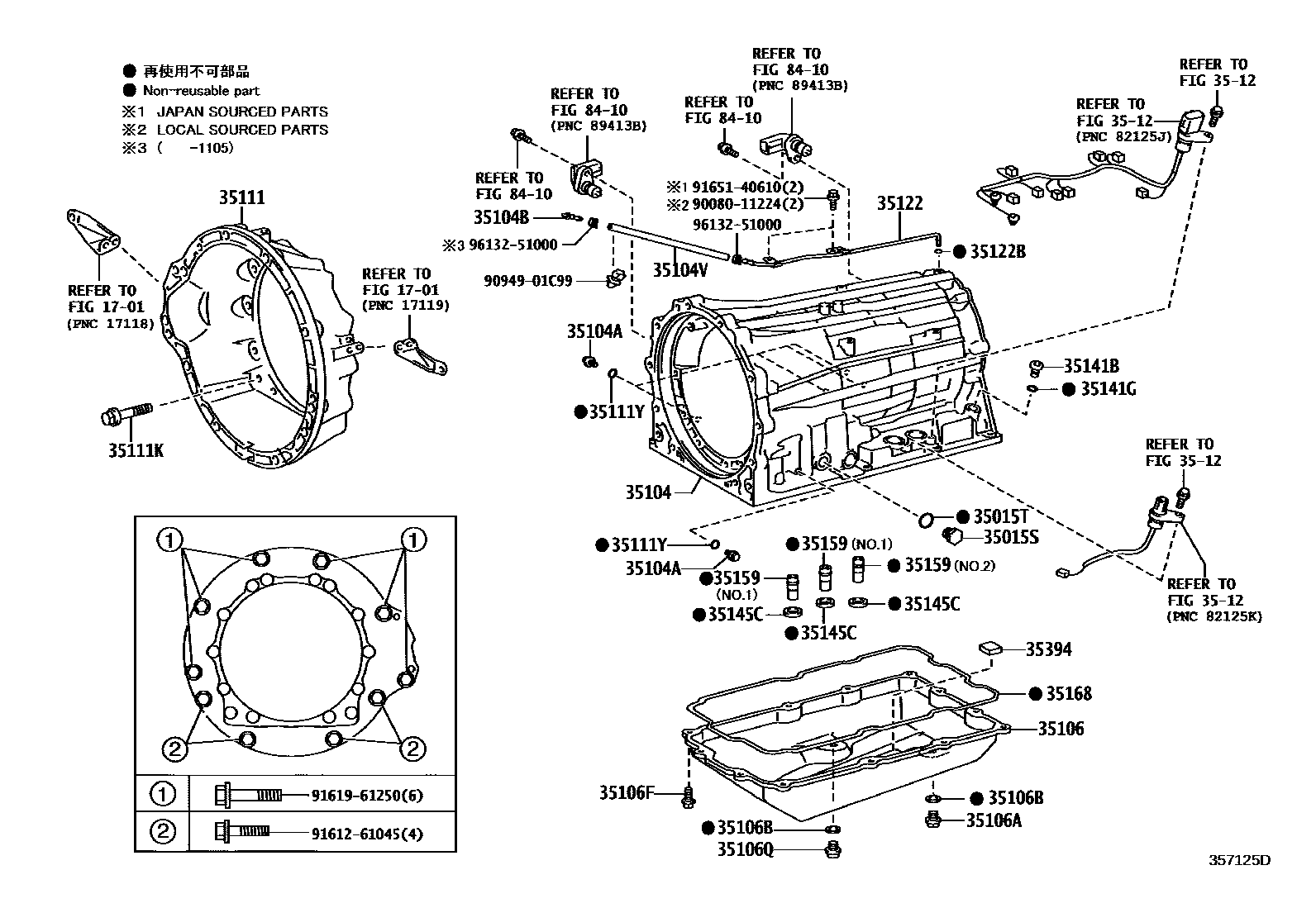

TRANSMISSION CASE & OIL PAN (ATM)
1701
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
35015TRING, O(FOR TRANSMISSION CASE ADAPTER)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
(L)
(J)
35104APLUG, AUTOMATIC TRANSMISSION CASE
(J)
(L)
35104BPLUG, BREATHER, NO.1 (ATM)
35104VHOSE (FOR BREATHER PLUG)
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
(L)
(J)
35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
(L)
(J)
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111HOUSING, AUTOMATIC TRANSMISSION
(L)
(J)
35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
*8-1.25PX35-30,NO.1
*8-1.25PX30-27.5,NO.2
*10-1.5PX35-30
*10-1.5PX35-30,(J)
*10-1.5PX35-29.3,(L)
*10-1.5PX35-29.3
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
3512
35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)
35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35145CGASKET, TRANSAXLE CASE
35159GASKET, BRAKE DRUM
(L),NO.2
NO.2
(L),NO.1
NO.1
(J),NO.2
NO.2
(J),NO.1
NO.1
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
8410
9008011224
main90080-11224
9094901C99
main90949-01C99
9161261045
main91612-61045
9161961250
main91619-61250
9165140610
main91651-40610
9613251000
main96132-51000
31 parts on this diagram · 3 diagrams in section
