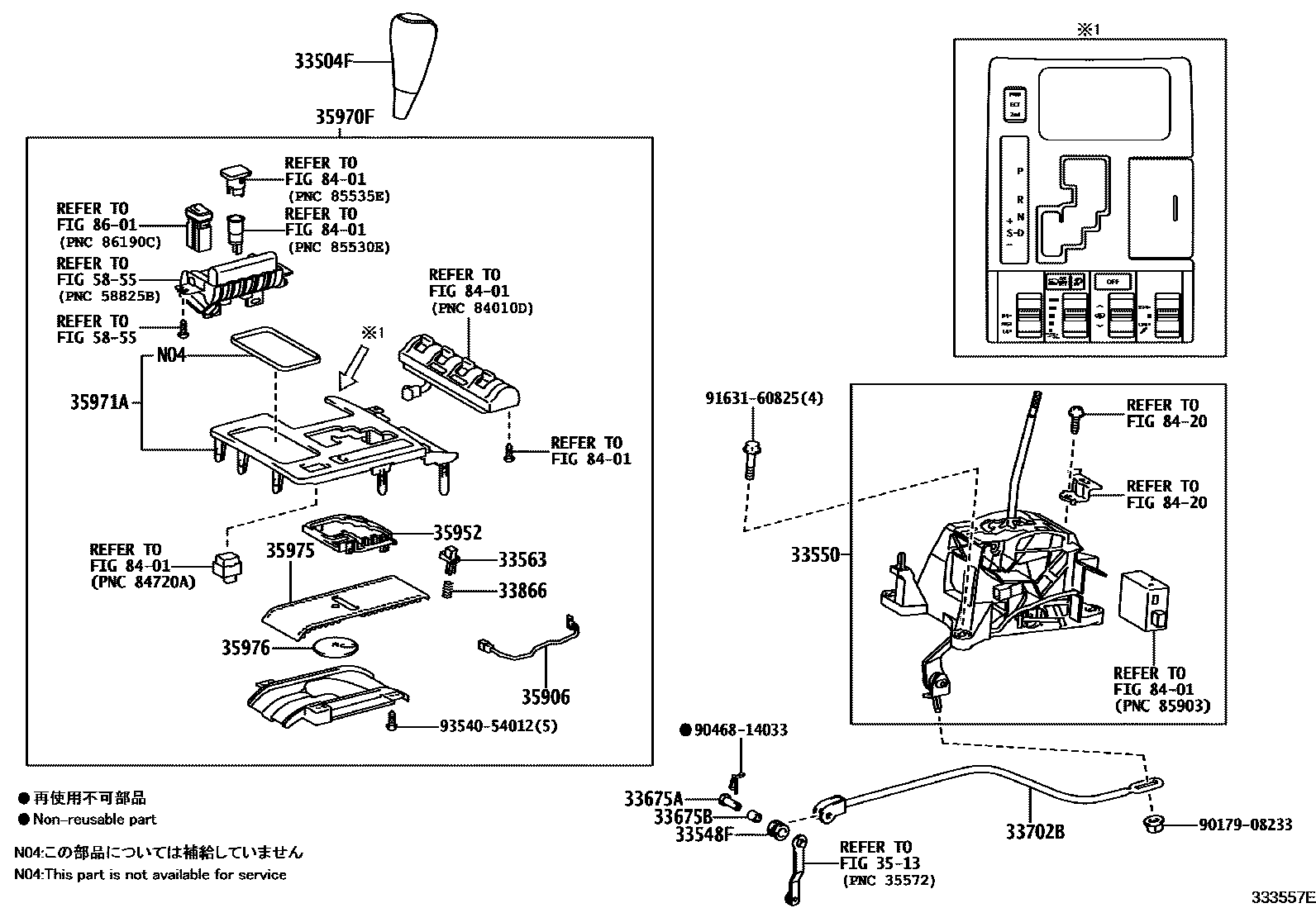

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
BLACK,TRIM0#,2#,3#,4#,5#
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33563BUTTON, SHIFT LOCK RELEASE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33866SPRING, SHIFT LOCK RELEASE
3513
35906WIRE SUB-ASSY, INDICATOR LAMP
35952LENS, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
5855
8401
8420
8601
9017908233
main90179-08233
9046814033
main90468-14033
9163160825
main91631-60825
9354054012
main93540-54012
23 parts on this diagram · 3 diagrams in section
