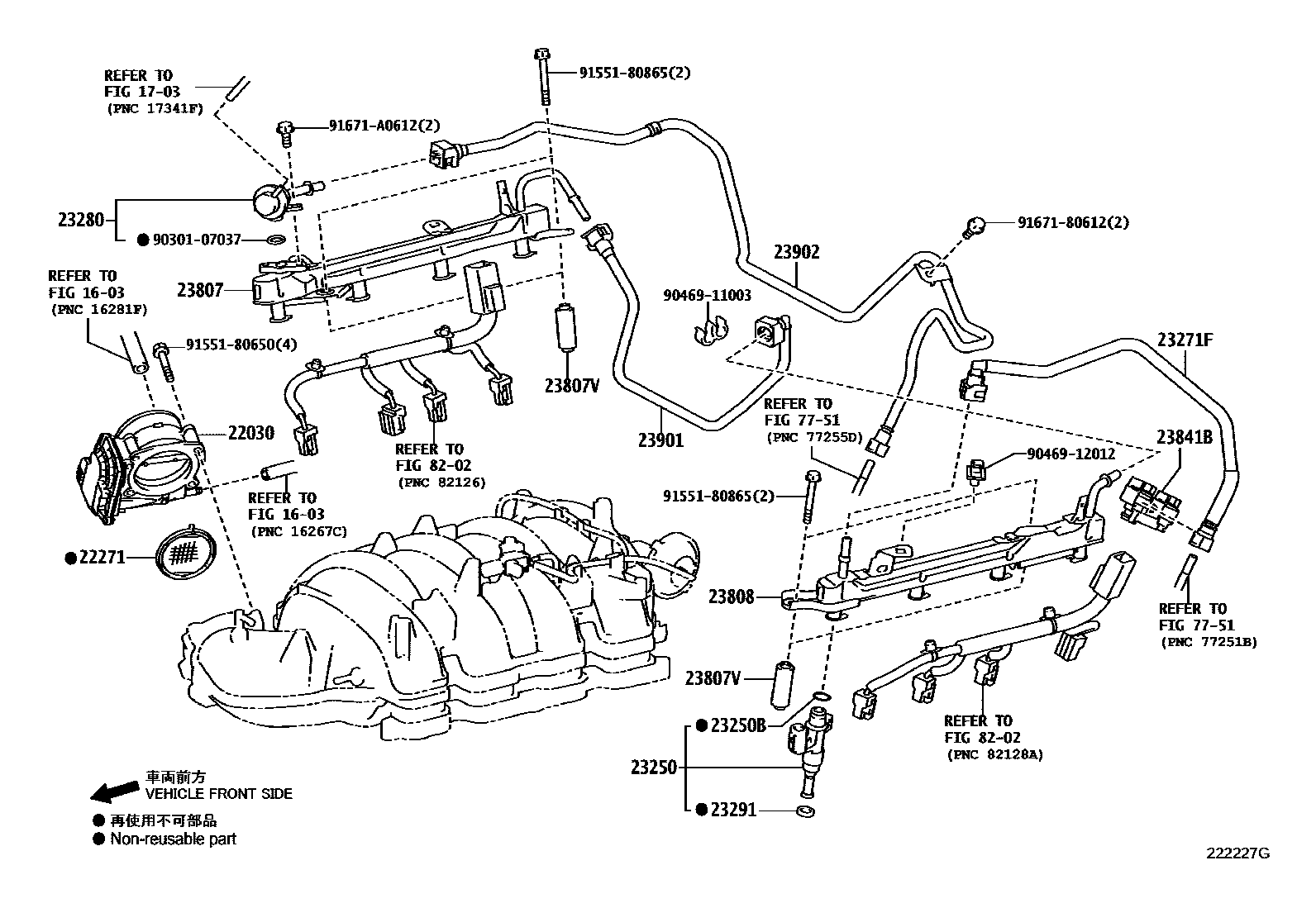

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-38020i3URFE..URJ201¥58,000200711-201509

22271GASKET, THROTTLE BODY

main22271-38010i3URFE..URJ201200711-201509

23250INJECTOR ASSY, FUEL

main23209-39165i3URFE..URJ201¥13,900200711-201509

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i3URFE..URJ201¥140200711-201509

23271FHOSE, FUEL

main23271-38050i3URFE..URJ201¥1,860200711-201509

23280REGULATOR ASSY, FUEL PRESSURE

main23280-38010i3URFE..URJ201200711-201203

sub23280-38011¥6,600

main23280-38011i3URFE..URJ201¥6,600201203-201509

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i3URFE..URJ201¥240200711-201509

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-38030i3URFE..URJ201200711-200903

main23814-38031i3URFE..URJ201200903-201204

sub23814-38032¥11,800

main23814-38032i3URFE..URJ201¥11,800201204-201509

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-38020i3URFE..URJ201¥300200711-201509

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23815-38010i3URFE..URJ201200711-201204

sub23815-38011¥11,800

main23815-38011i3URFE..URJ201¥11,800201204-201509

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-50020i3URFE..URJ201¥250200711-201509

23901TUBE SUB-ASSY, FUEL

main23901-38010i3URFE..URJ201200711-200903

main23901-38011i3URFE..URJ201¥4,630200903-201509

23902TUBE SUB-ASSY, FUEL

main23902-38010i3URFE..URJ201200711-200903

main23902-38011i3URFE..URJ201¥7,600200903-201509

7751

8202

9030107037

main90301-07037¥140

9046911003

main90469-11003¥120

9046912012

main90469-12012¥210

9155180650

main91551-80650¥80

9155180865

main91551-80865¥100

9167180612

main91671-80612¥60

91671A0612

main91671-A0612¥60

24 parts on this diagram · 2 diagrams in section
