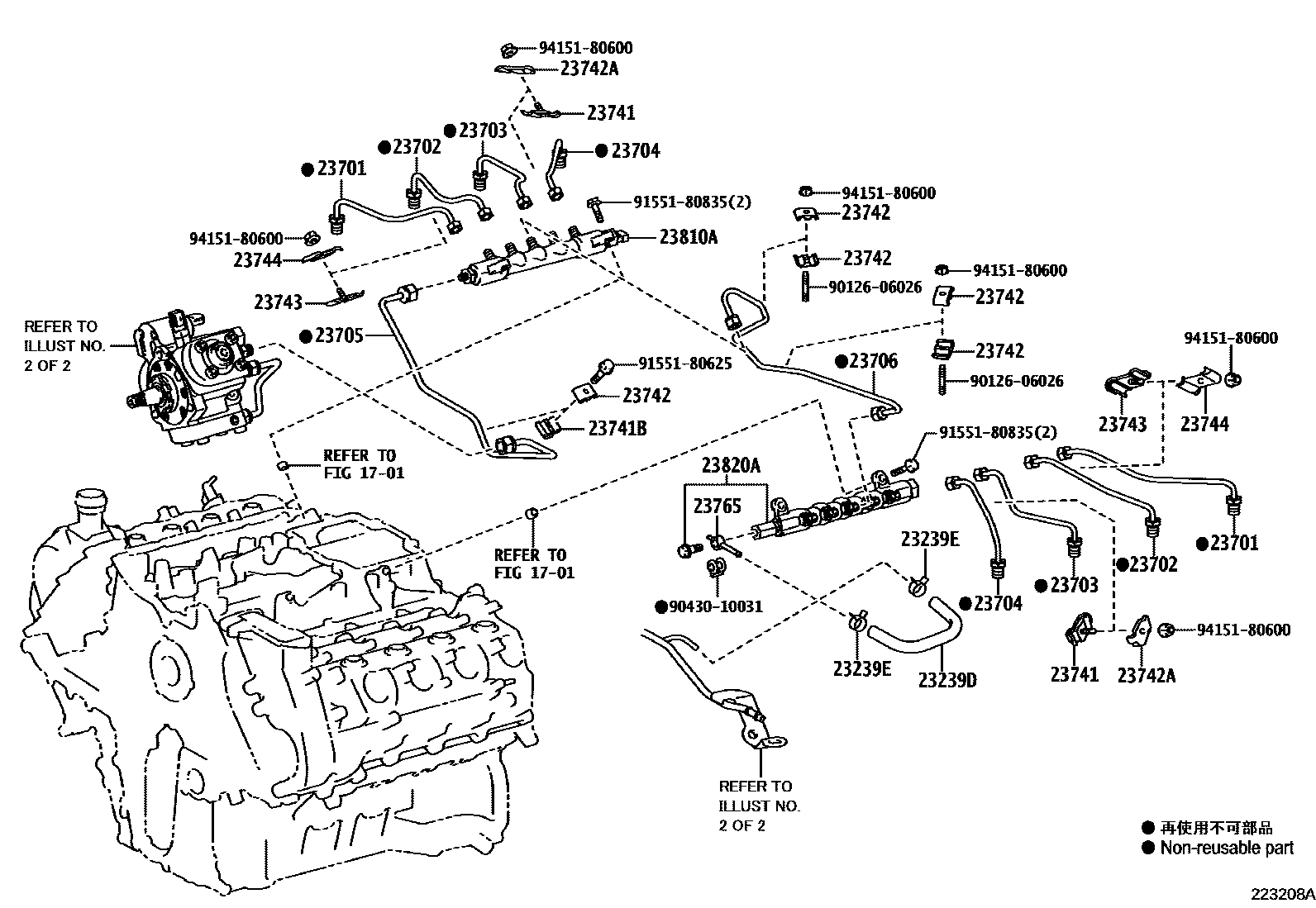

INJECTION PUMP ASSEMBLY
1701
23239DHOSE, FUEL, NO.1
23239ECLIP, FUEL HOSE, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23705PIPE SUB-ASSY, INJECTION, NO.5
23706PIPE SUB-ASSY, INJECTION, NO.6
23741CLAMP, INJECTION PIPE, NO.1
23741BCLAMP, INJECTION PIPE
23742CLAMP, INJECTION PIPE, NO.2
23742ACLAMP, INJECTION PIPE, NO.3
23743CLAMP, INJECTION PIPE, NO.3
23744CLAMP, INJECTION PIPE, NO.4
23765PIPE, NOZZLE LEAKAGE, NO.5
23810ARAIL ASSY, COMMON
23820ARAIL ASSY, COMMON
9012606026
main90126-06026
9043010031
main90430-10031
9155180625
main91551-80625
9155180835
main91551-80835
9415180600
main94151-80600
23 parts on this diagram · 6 diagrams in section
