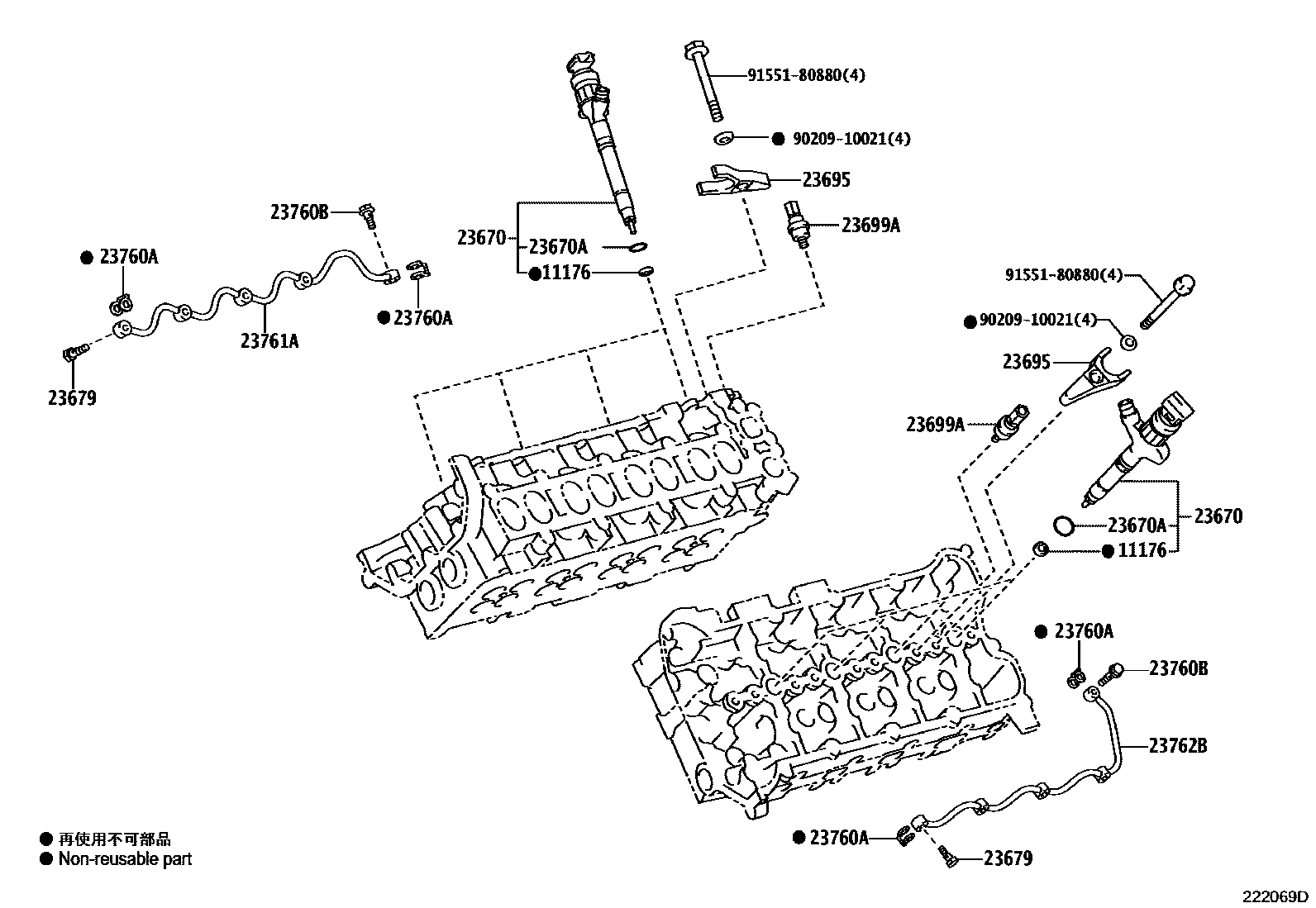

INJECTION NOZZLE

0001 1EXCEPT EUROPE STEP5 0002 1EUROPE STEP5

11176SEAT, INJECTION NOZZLE

main11176-26020i1VDFTV..VDJ201201509

23670INJECTOR ASSY

main23670-59045i1VDFTV..VDJ201201509

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017i1VDFTV..VDJ201201509

23679SCREW, INJECTOR FOLLOW

main23679-51010i1VDFTV..VDJ201201509

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-26020i1VDFTV..VDJ201201509

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-26030i1VDFTV..VDJ201201509

23760AGASKET

main90904-30008i1VDFTV..VDJ201201509

AZERBAIJAN, GEORGIA, ARMENIA SPEC

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main90401-08016i1VDFTV..VDJ201201509

AZERBAIJAN, GEORGIA, ARMENIA SPEC

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-51020i1VDFTV..VDJ201201509

23762BPIPE, NOZZLE LEAKAGE, NO.2

main23762-51020i1VDFTV..VDJ201201509

9020910021

main90209-10021

9155180880

main91551-80880

12 parts on this diagram · 2 diagrams in section
