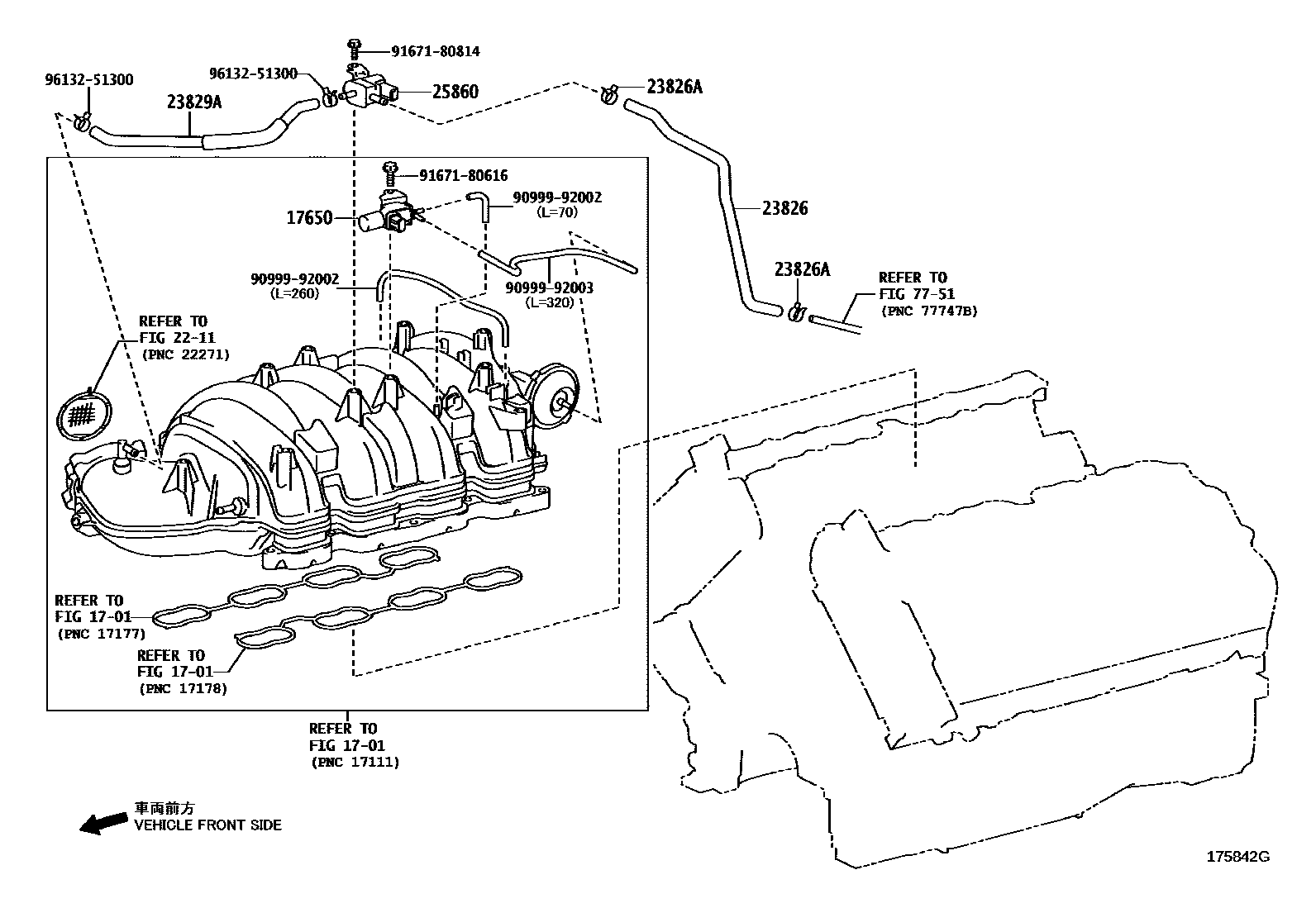

VACUUM PIPING

0001 1 0002 1W(VACUUM PUMP) 0003 1W/O(VACUUM PUMP)

1701

17650VALVE ASSY, VACUUM SWITCHING

main25860-38010i3URFE..URJ201200711-201509

2211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-38010i3URFE..URJ201200711-201509

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i3URFE..URJ201200711-201509

23829AHOSE, FUEL VAPOR FEED

main23829-38010i3URFE..URJ201200711-201509

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i3URFE..URJ201200711-201509

main25860-51010i1VDFTV..VDJ201201509

7751

9099992002

main90999-92002

9099992003

main90999-92003

9167180616

main91671-80616

9167180814

main91671-80814

9613251300

main96132-51300

13 parts on this diagram · 3 diagrams in section
