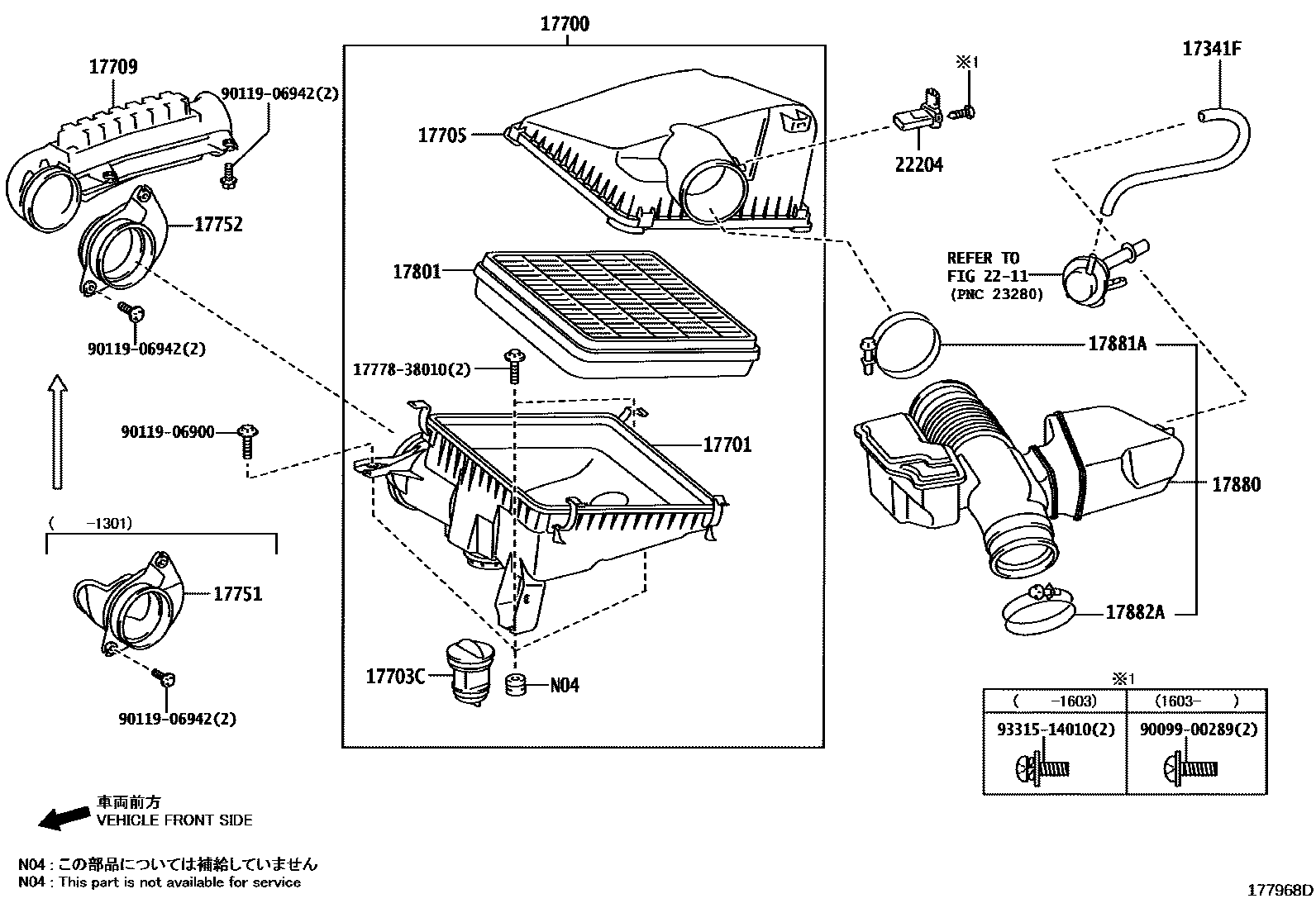

AIR CLEANER
17341FHOSE, AIR, NO.1
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17703CCAP SUB-ASSY, DUST
17705CAP SUB-ASSY, AIR CLEANER
17709INLET SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
1777838010BOLT, AIR CLEANER SET
main17778-38010
9009900289
9011906900
9011906942
9331514010
20 parts on this diagram · 3 diagrams in section
