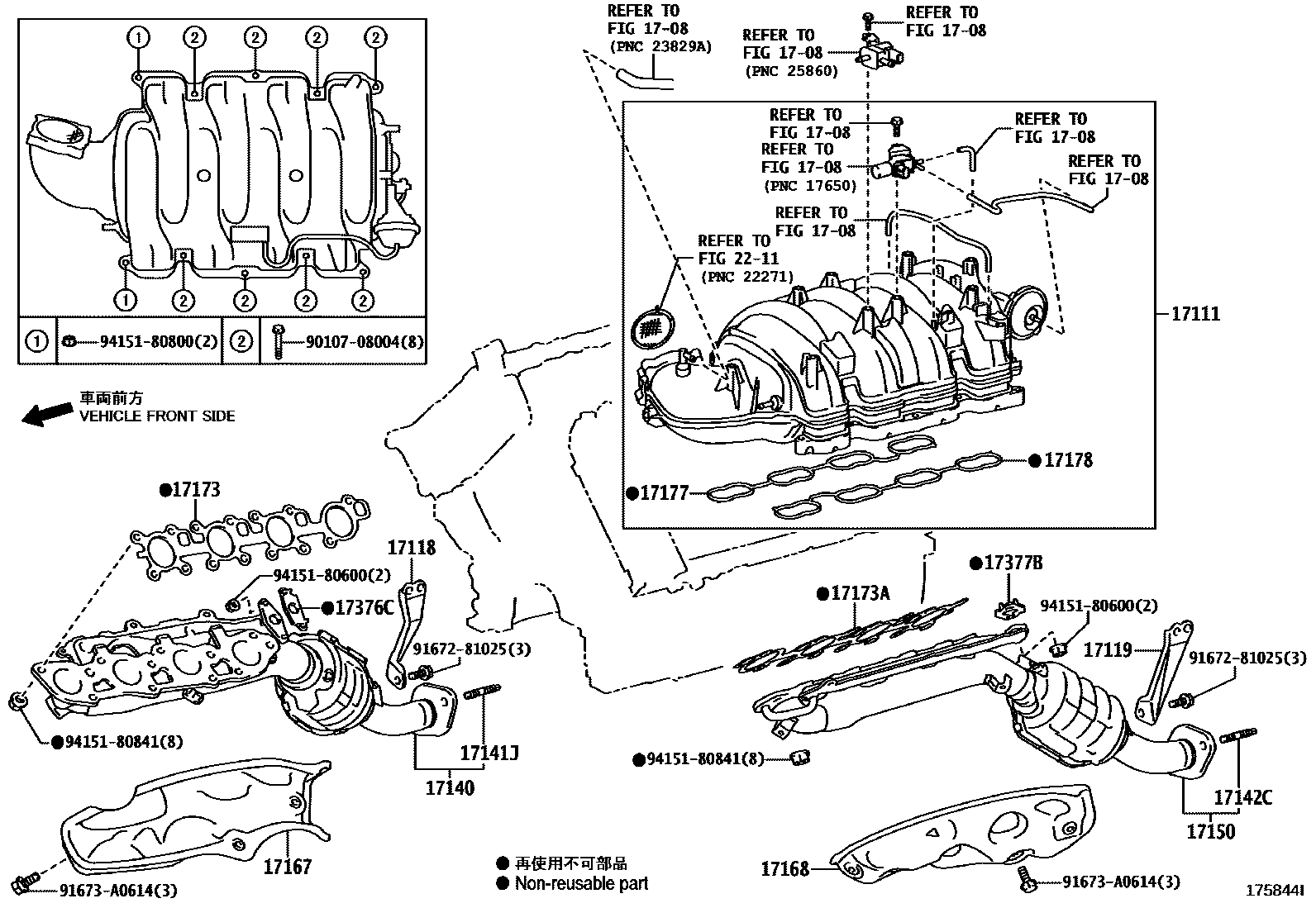

MANIFOLD
1708
17119STAY, MANIFOLD, NO.2
17140MANIFOLD ASSY, EXHAUST, RH
*114=*388
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17142CASE, EXHAUST MANIFOLD, NO.2
17142CBOLT, STUD(FOR EXHAUST MANIFOLD, LH)
17150MANIFOLD ASSY, EXHAUST, LH
*114=TOYOTA/L38020/Y
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17376CGASKET, AIR TUBE
17377BGASKET, AIR TUBE, NO.2
2211
9010708004
main90107-08004
9167281025
main91672-81025
91673A0614
main91673-A0614
9415180600
main94151-80600
9415180800
main94151-80800
9415180841
main94151-80841
25 parts on this diagram · 7 diagrams in section
