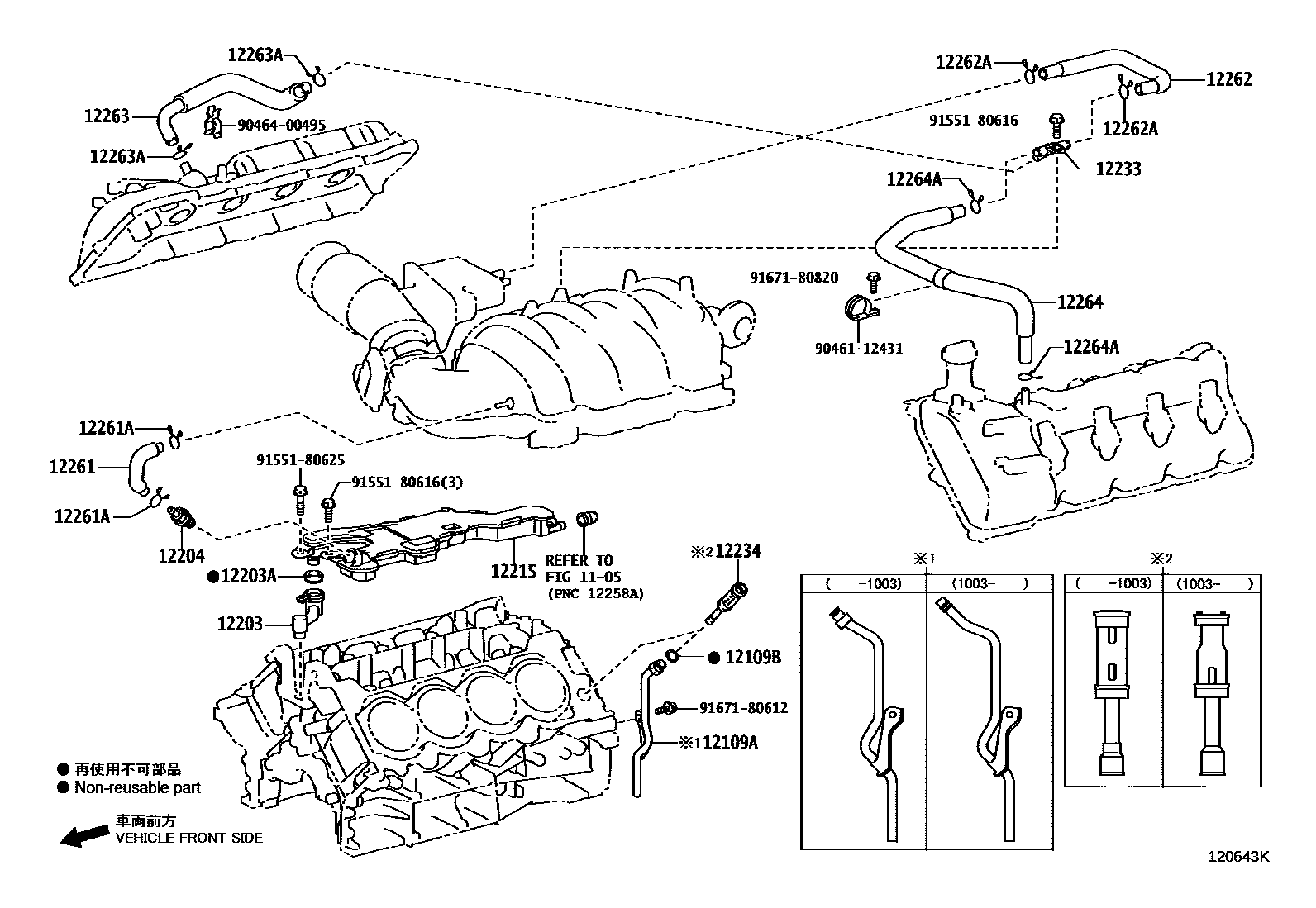

VENTILATION HOSE
1105
12109APIPE SUB-ASSY, OIL DRAIN
12109BRING, O(FOR OIL DRAIN PIPE)
12203PIPE SUB-ASSY, VENTILATION
12203AGASKET(FOR VENTILATION PIPE)
12204VALVE SUB-ASSY, VENTILATION
12215SEPARATOR, CASE
12233CONNECTOR, VENTILATION NO.1
12234CONNECTOR, VENTILATION NO.2
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
12264HOSE, VENTILATION, NO.4
12264ACLIP(FOR VENTILATION HOSE)
9046112431
main90461-12431
9046400495
main90464-00495
9155180616
main91551-80616
9155180625
main91551-80625
9167180612
main91671-80612
9167180820
main91671-80820
23 parts on this diagram · 3 diagrams in section
