HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR 0003 1COOL BOX(CHINA SPEC) 0004 1O-LING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iUZJ100200208-200505

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60190iUZJ100200208-200505

88502CASE SUB-ASSY, COOLING UNIT

main88502-60090iUZJ100200505

FRONT,NO.1

main88502-60100iUZJ100200208-200505

NO.2

main88502-60120iUZJ100200505

88510UNIT ASSY, COOLER

main88510-6A100iUZJ100200208-200505

88515VALVE, COOLER EXPANSION

main88515-60120iUZJ100200208-200404

main88515-60190iUZJ100200404-200505

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-60080iUZJ100200208-200505

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26022iUZJ100200208-200505

88561COVER, COOLER UNIT

main88899-60120iUZJ100200208-200505

88578BPACKING, COOLING UNIT, NO.1

main88578-60130iUZJ100200208-200505

NO.1

main88578-60140iUZJ100200505

NO.2

main88578-60150iUZJ100200208-200505

NO.3

main88578-60160iUZJ100200505

NO.4

88625THERMISTOR, COOLER, NO.1

main88625-47011iUZJ100200208-200505

88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER

main88710-6A210iUZJ100200208-200505

88891SCOVER, COOLER, NO.1

main88891-60040iUZJ100200208-200307

main88891-60080iUZJ100200307-200505

88897UPIPE, ASPIRATOR

main88897-60050iUZJ100200208-200505

88899KPLATE, COVER

main88899-60220iUZJ100200208-200505

NO.1

main88899-60240iUZJ100200505

NO.2

8857847040PAKING, COOLER AIR DUCT

main88578-47040

8862633010CASE, BLOWER DRIVE SHAFT BEARING

main88626-33010

9009900279

main90099-00279

9009900968

main90099-00968

9009904497

main90099-04497

9015960198

main90159-60198

9017906314

main90179-06314

9162640616

main91626-40616

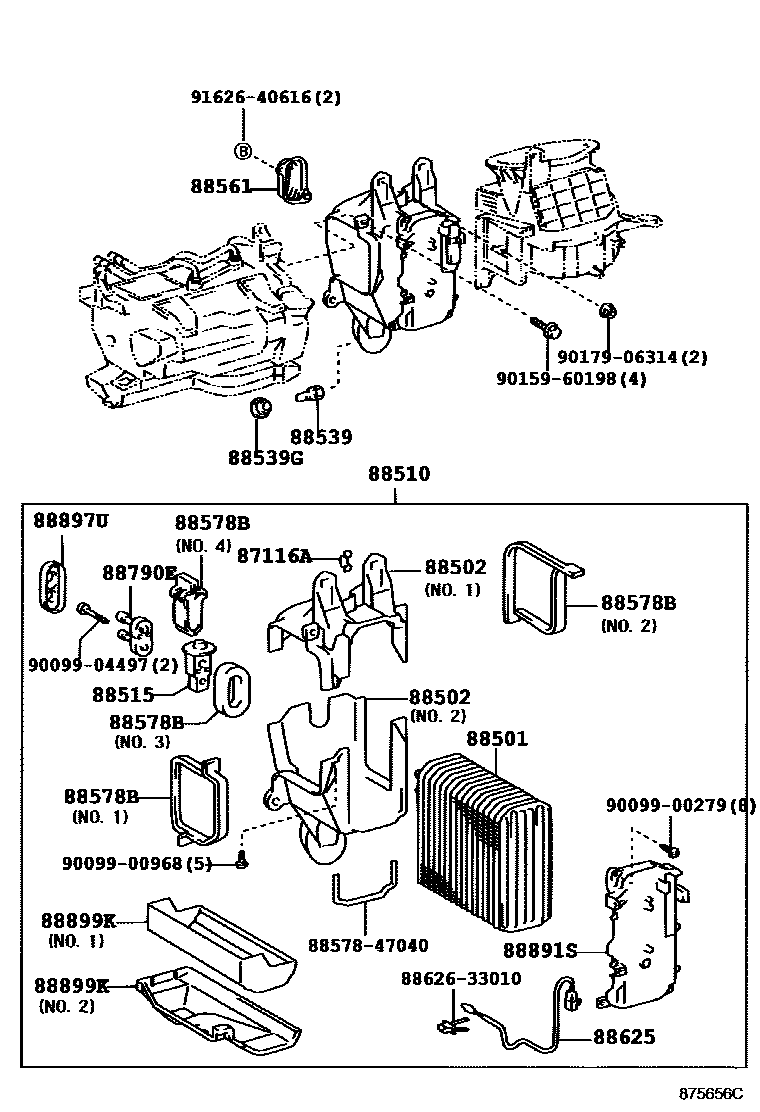

22 parts on this diagram · 4 diagrams in section
