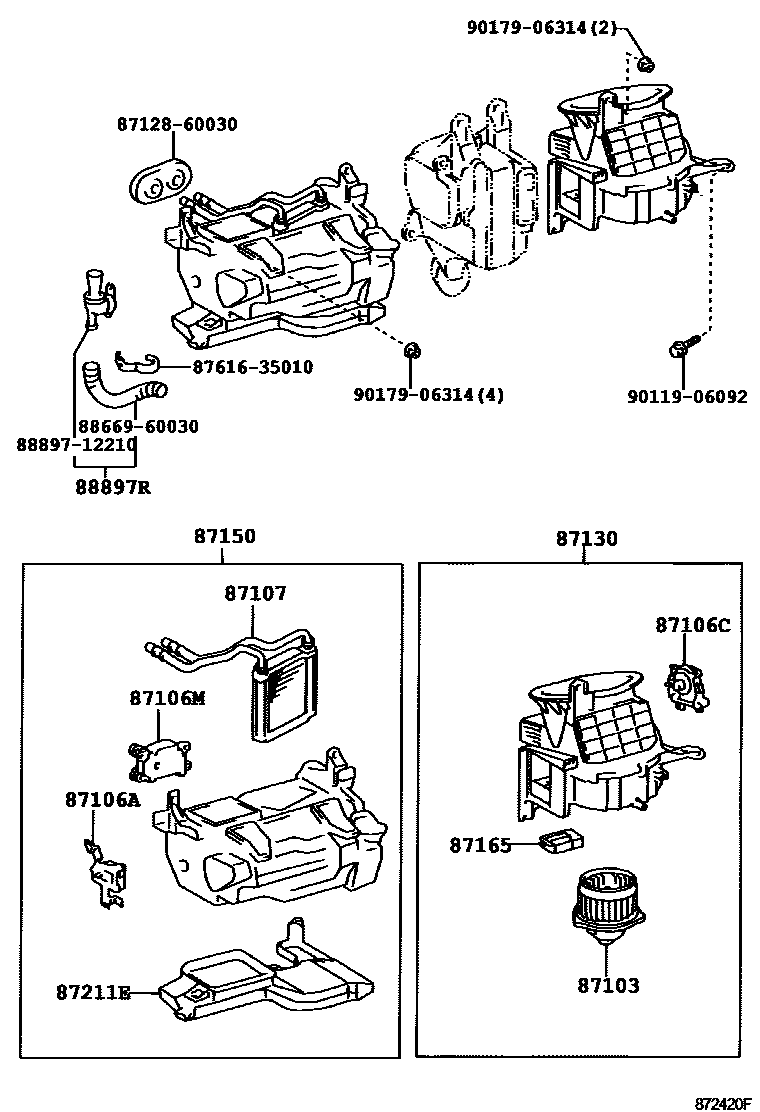

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1REAR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-60220iUZJ100200505

CHINA SPEC

main87103-60250iUZJ100200208-200505

87106ASERVO SUB-ASSY, DAMPER

main87106-60111iUZJ100200208-200505

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-60190iUZJ100200208-200505

main87106-60200iUZJ100200505

CHINA SPEC

87106MSERVO SUB-ASSY, DAMPER, NO.2

main87106-60120iUZJ100200208-200505

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-60361iUZJ100200208-200505

87130BLOWER ASSY, HEATER, FRONT

main87130-60353iUZJ100200208-200505

main87130-60382iUZJ100200505

CHINA SPEC

87150RADIATOR ASSY, HEATER

main87150-60673iUZJ100200208-200307

sub87150-60674

main87150-60674iUZJ100200307-200505

87165CONTROL, BLOWER MOTOR, NO.1

main87165-60020iUZJ100200208-200505

main87165-60030iUZJ100200505

CHINA SPEC

87211EDUCT, AIR

main87211-60310iUZJ100200208-200505

88897RASPIRATOR

main88897-60040iUZJ100200208-200402

main88897-60130iUZJ100200402-200505

8712860030GROMMET, HEATER

main87128-60030

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

8866960030HOSE, COOLER AIR

main88669-60030

8889712210VALVE, COOLER MAGNET

main88897-12210

9011906092

main90119-06092

9017906314

main90179-06314

16 parts on this diagram · 2 diagrams in section
