EPC Data

MIRROR

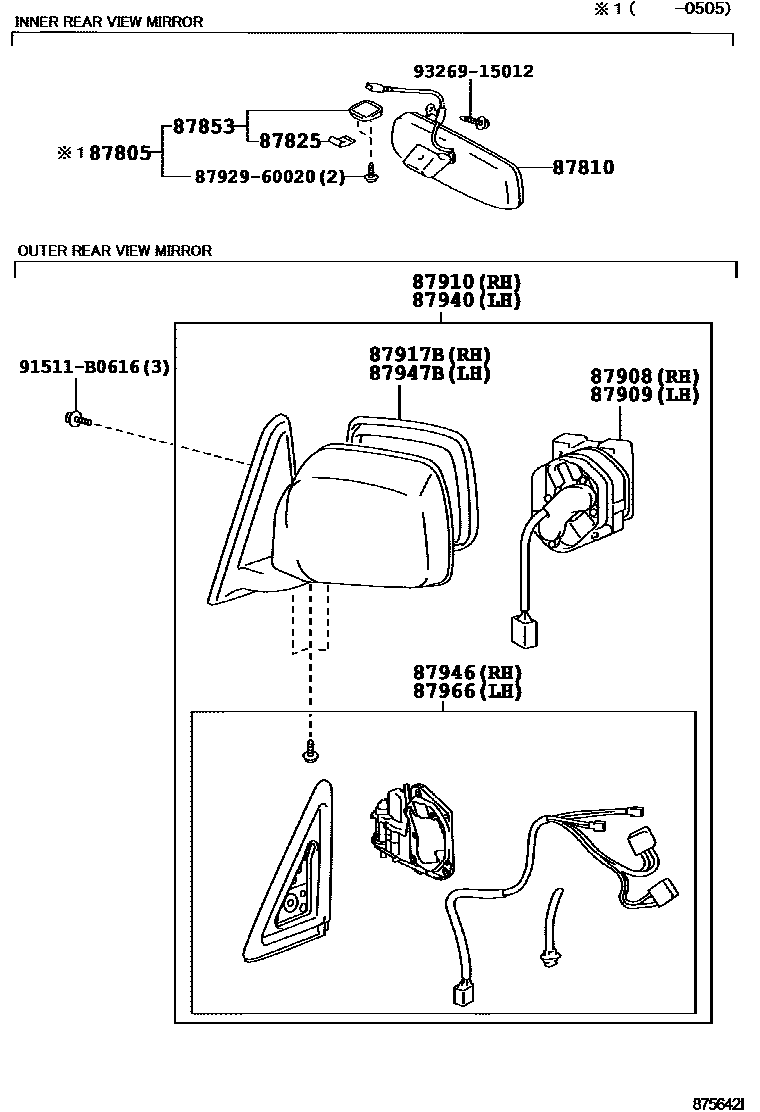

Parts diagram
87805BASE SUB-ASSY, INNER REAR VIEW MIRROR
main87805-60010i200208-200505
87810MIRROR ASSY, INNER REAR VIEW
main87810-60180-A1i200208-200505
IVORY,TRIM0#
sub87810-60180
sub87810-60181
main87810-60180-A1i200505-200610
W(COMPASS),IVORY,TRIM0#
sub87810-60180
sub87810-60181
main87810-60180-B1i200208-200505
STONE,TRIM1#
sub87810-60180
sub87810-60181
main87810-60180-B1i200505-200610
W(COMPASS),STONE,TRIM1#
sub87810-60180
sub87810-60181
main87810-60181-A1i200611-200708
W(COMPASS),IVORY,TRIM0#
sub87810-60181
main87810-60181-B1i200611-200708
W(COMPASS),STONE,TRIM1#
sub87810-60181
main87810-60220-A0i200505-200610
IVORY,TRIM0#
sub87810-60221
main87810-60220-B0i200505-200610
STONE,TRIM1#
sub87810-60221
main87810-60221-A0i200611-200708
IVORY,TRIM0#
sub87810-60221
main87810-60221-B0i200611-200708
STONE,TRIM1#
sub87810-60221
87825SPRING, INNER REAR VIEW MIRROR SETTING
main87825-60010i200208-200211
87853BASE, INNER REAR VIEW MIRROR
main87853-60010i200208-200505
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-60840i200208-200601
sub87908-60841
main87908-60841i200602-200609
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-60730i200208-200601
sub87909-60731
main87909-60731i200602-200609
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-6A440-A0i200208-200505
WHITE PEARL CS.,070
sub87910-6A441
main87910-6A440-A1i200505-200609
WHITE PEARL CS.,062
sub87910-6A441
main87910-6A440-B0i200505-200609
SILVER ME.,1F7
sub87910-6A441
main87910-6A440-C0i200208-200609
BLACK,202
sub87910-6A441
main87910-6A440-E0i200208-200609
BEIGE PEARL CS.,4R2
sub87910-6A441
main87910-6A440-G0i200505-200609
OLIVE M.M.,6T7
sub87910-6A441
main87910-6A441-A1i200610-200708
WHITE PEARL CS.,062
sub87910-6A441
main87910-6A441-B0i200610-200708
SILVER ME.,1F7
sub87910-6A441
main87910-6A441-C0i200610-200708
BLACK,202
sub87910-6A441
main87910-6A441-E0i200610-200708
BEIGE PEARL CS.,4R2
sub87910-6A441
main87910-6A441-G0i200610-200708
OLIVE M.M.,6T7
sub87910-6A441
87917BMIRROR, OUTER REAR VIEW, RH
main87931-6A440i200208-200609
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-6A310-A0i200208-200505
WHITE PEARL CS.,070
sub87940-6A311
main87940-6A310-A1i200505-200609
WHITE PEARL CS.,062
sub87940-6A311
main87940-6A310-B0i200505-200609
SILVER ME.,1F7
sub87940-6A311
main87940-6A310-C0i200208-200609
BLACK,202
sub87940-6A311
main87940-6A310-E0i200208-200609
BEIGE PEARL CS.,4R2
sub87940-6A311
main87940-6A310-G0i200505-200609
OLIVE M.M.,6T7
sub87940-6A311
main87940-6A311-A1i200610-200708
WHITE PEARL CS.,062
sub87940-6A311
main87940-6A311-B0i200610-200708
SILVER ME.,1F7
sub87940-6A311
main87940-6A311-C0i200610-200708
BLACK,202
sub87940-6A311
main87940-6A311-E0i200610-200708
BEIGE PEARL CS.,4R2
sub87940-6A311
main87940-6A311-G0i200610-200708
OLIVE M.M.,6T7
sub87940-6A311
87946RETRACTOR, OUTER MIRROR, RH
main87946-6A440i200505-200708
87947BMIRROR, OUTER REAR VIEW, LH
main87961-60730i200208-200505
main87961-6A310i200505-200609
87966RETRACTOR, OUTER MIRROR, LH
main87966-6A310i200505-200708
8792960020RETAINER, OUTER REAR VIEW MIRROR, LH
main87929-60020
91511B0616
main91511-B0616
9326915012
main93269-15012

15 parts on this diagram · 1 diagram in section
