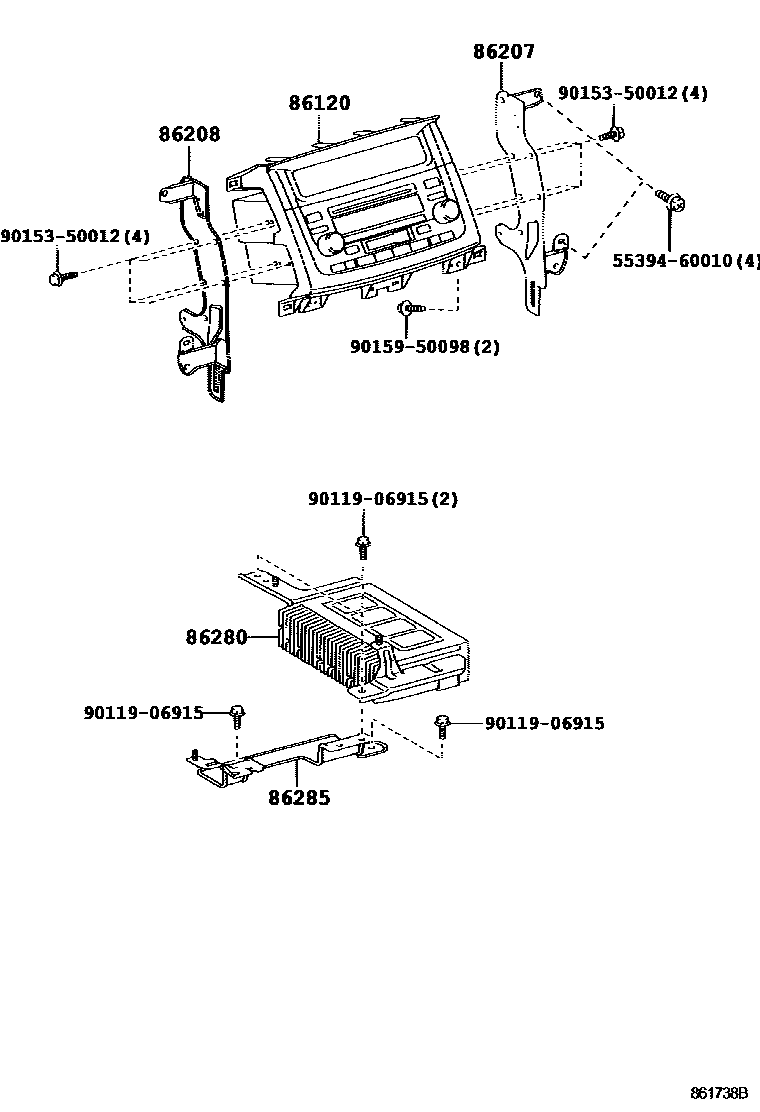

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-60580iUZJ100200208-200308

PIONEER,ID=P3916,TYPE D:REFER TO ILLUSTRATION

sub86120-60581

main86120-60581iUZJ100200308-200505

PIONEER,ID=P3930,TYPE D:REFER TO ILLUSTRATION

main86120-60750iUZJ100200505

PIONEER,ID=P2734,TYPE E:REFER ILLUST.

main86120-60760iUZJ100200505

PIONEER,ID=P3946,TYPE D:REFER ILLUST.

86207BRACKET SUB-ASSY, RADIO RECEIVER, RH

main86207-60030iUZJ100200208-200505

main86207-60041iUZJ100200505

W(EMV & NAVIGATION SYSTEM)

86208BRACKET SUB-ASSY, RADIO RECEIVER, LH

main86208-60030iUZJ100200208-200505

main86208-60041iUZJ100200505

W(EMV & NAVIGATION SYSTEM)

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W052iUZJ100200505-200509

sub86280-0W053

main86280-0W053iUZJ100200510

main86280-60360iUZJ100200208-200308

sub86280-60361

main86280-60361iUZJ100200308-200505

86285BRACKET, AMPLIFIER, NO.1

main86285-60020iUZJ100200208-200308

main86285-60021iUZJ100200308-200505

5539460010BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-60010

9011906915

main90119-06915

9015350012

main90153-50012

9015950098

main90159-50098

9 parts on this diagram · 5 diagrams in section
