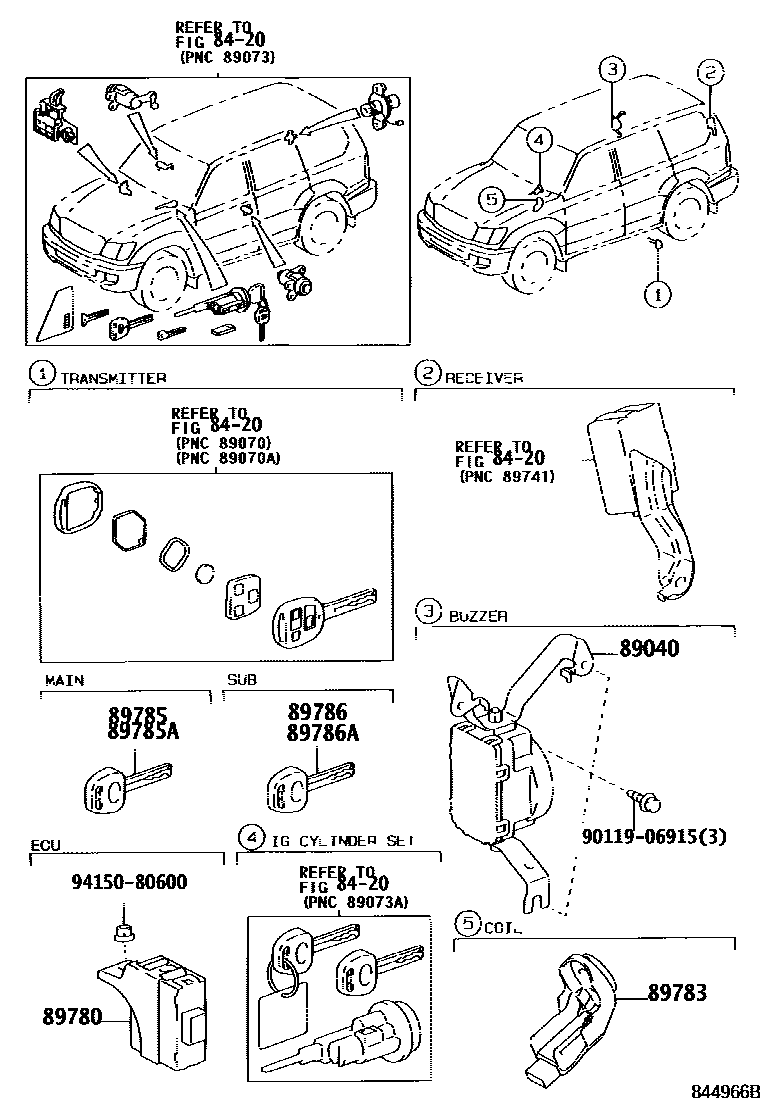

ANTI-THEFT DEVICE

8420

89040SIREN ASSY, THEFT WARNING

main89040-60010iUZJ100200208-200505

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-60230iUZJ100200208-200505

89783AMPLIFIER, TRANSPONDER KEY

main89783-35030iUZJ100200208-200505

sub89783-35031

main89783-60110iUZJ100200505

sub89783-60111

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-60180iUZJ100200208-200505

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-60140iUZJ100200208-200505

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60150iUZJ100200208-200505

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-60200iUZJ100200505

9011906915

main90119-06915

9415080600

main94150-80600

10 parts on this diagram · 1 diagram in section
