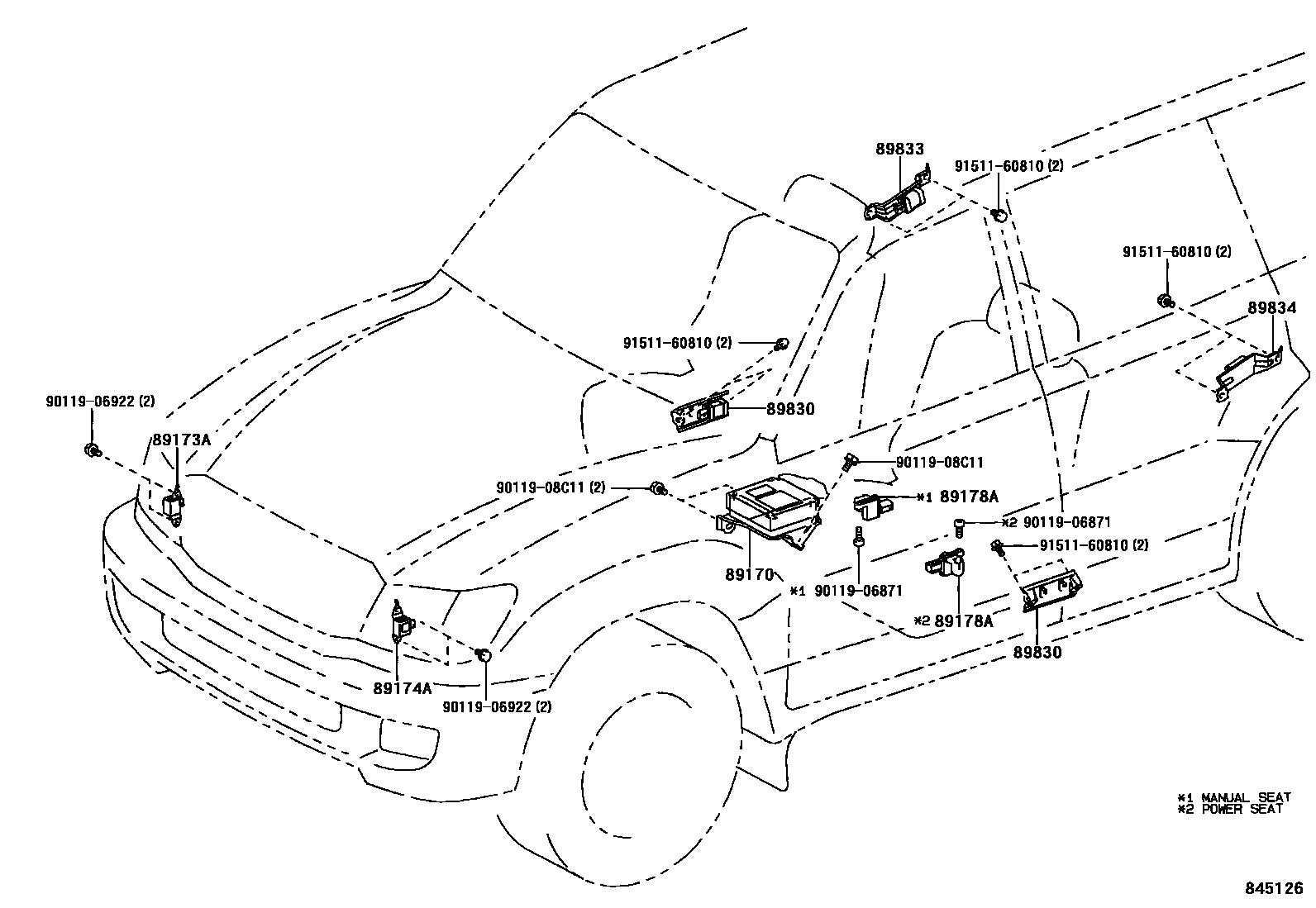

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-60170iUZJ100200208-200605

sub89170-60171

main89170-60171iUZJ100200605

sub89170-60172

89173ASENSOR, AIRBAG, FRONT RH

main89173-69105iUZJ100200208-200505

89174ASENSOR, AIRBAG, FRONT LH

main89174-69105iUZJ100200208-200505

89178ASENSOR, SEAT POSITION AIRBAG

main89178-0W010iUZJ100200208-200505

89830SENSOR ASSY, SIDE AIRBAG

main89830-60010iUZJ100200208-200505

89833SENSOR, AIRBAG, REAR RH

main89833-60030iUZJ100200208-200505

89834SENSOR, AIRBAG, REAR LH

main89834-60010iUZJ100200208-200505

9011906871

main90119-06871

9011906922

main90119-06922

9011908C11

main90119-08C11

9151160810

main91511-60810

11 parts on this diagram · 1 diagram in section
