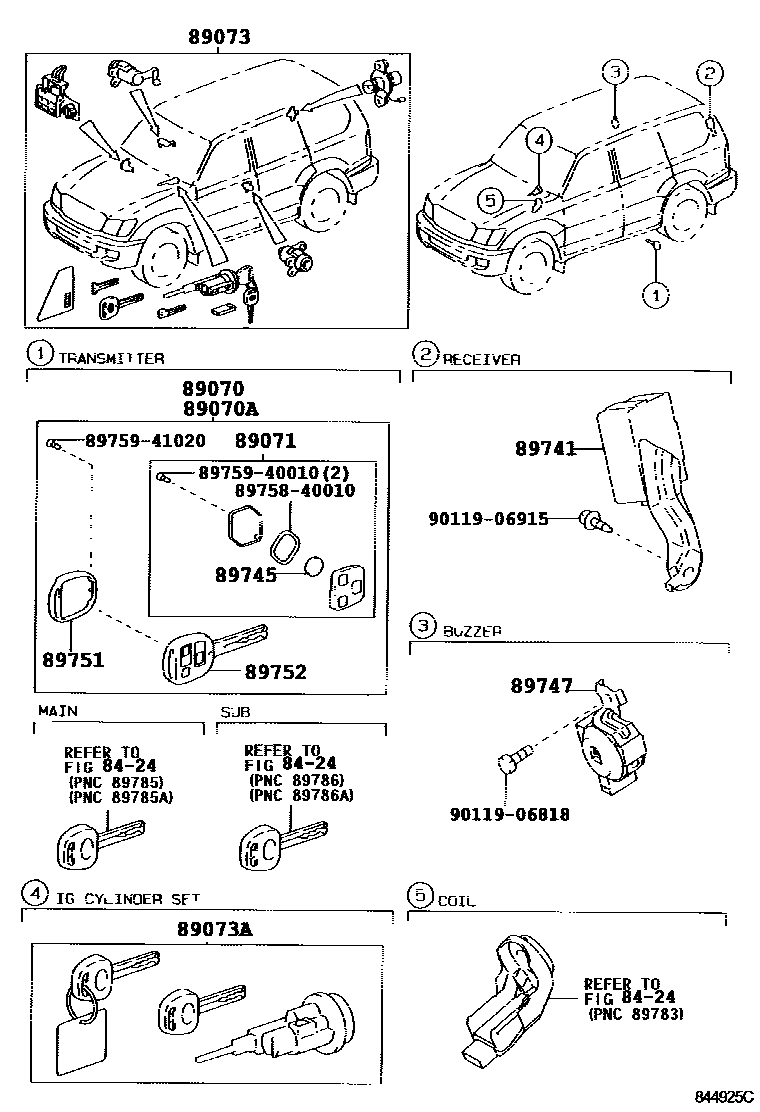

WIRELESS DOOR LOCK

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-4D010i200505-200512

CHINA SPEC

sub89070-4D011

main89070-4D011i200601-200705

CHINA SPEC

sub89070-4D012

main89070-4D012i200706

CHINA SPEC

sub89070-4D013

main89070-60830i200208-200512

sub89070-60831

main89070-60831i200601

sub89070-60832

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-4D220i200505-200512

CHINA SPEC

sub89070-4D221

main89070-4D221i200601-200705

CHINA SPEC

sub89070-4D222

main89070-4D222i200706

CHINA SPEC

sub89070-4D223

main89070-6A010i200208-200512

sub89070-6A011

main89070-6A011i200601

sub89070-6A012

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-48210i200505

CHINA SPEC

main89071-50251i200208-200505

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-6C490i200208-200604

sub69005-6C491

main69005-6C491i200605

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main69057-60520i200208-200604

sub69057-60521

main69057-60521i200605

89741RECEIVER, DOOR CONTROL

main89741-60390i200208-200505

main89741-60460i200505

CHINA SPEC

89745BATTERY, TRANSMITTER

main89745-40010i200208-200505

89747BUZZER, WIRELESS DOOR LOCK

main89747-60010i200208-200505

89751COVER, TRANSMITTER HOUSING

main89751-24050i200208-200512

sub89751-24051

main89751-24051i200601

sub89751-24052

main89751-48080i200505-200512

CHINA SPEC

sub89751-48081

main89751-48081i200601-200706

CHINA SPEC

sub89751-48082

main89751-48082i200706

CHINA SPEC

sub89751-48083

89752CASE, TRANSMITTER HOUSING

main89752-48070i200208-200708

CUT KEY

main89752-48110i200208-200708

BLANK KEY

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906818

main90119-06818

9011906915

main90119-06915

16 parts on this diagram · 1 diagram in section
