ABS & VSC

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iUZJ100200208-200505

88263ARELAY, SKID CONTROL

main88263-24020iUZJ100200208-200505

88263ERELAY, SKID CONTROL NO.2

main88263-24030iUZJ100200208-200505

88263GRELAY, SKID CONTROL

main89633-24010iUZJ100200208-200505

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60390iUZJ100200208-200505

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-60400iUZJ100200208-200505

89183ASENSOR, YAWRATE

main89180-60070iUZJ100200208-200505

89540COMPUTER ASSY, SKID CONTROL

main89540-60390iUZJ100200208-200308

sub89540-60430

main89540-60430iUZJ100200308-200505

89542SENSOR, SPEED, FRONT RH

main89542-60040iUZJ100200208-200708

89543SENSOR, SPEED, FRONT LH

main89543-60010iUZJ100200208-200708

89545SENSOR, SPEED, REAR RH

main89545-60030iUZJ100200208-200708

89546SENSOR, SPEED, REAR LH

main89546-60030iUZJ100200208-200708

9011908571

main90119-08571

91621J0814

main91621-J0814

9165160612

main91651-60612

91651B0616

main91651-B0616

91651G0814

main91651-G0814

9415080600

main94150-80600

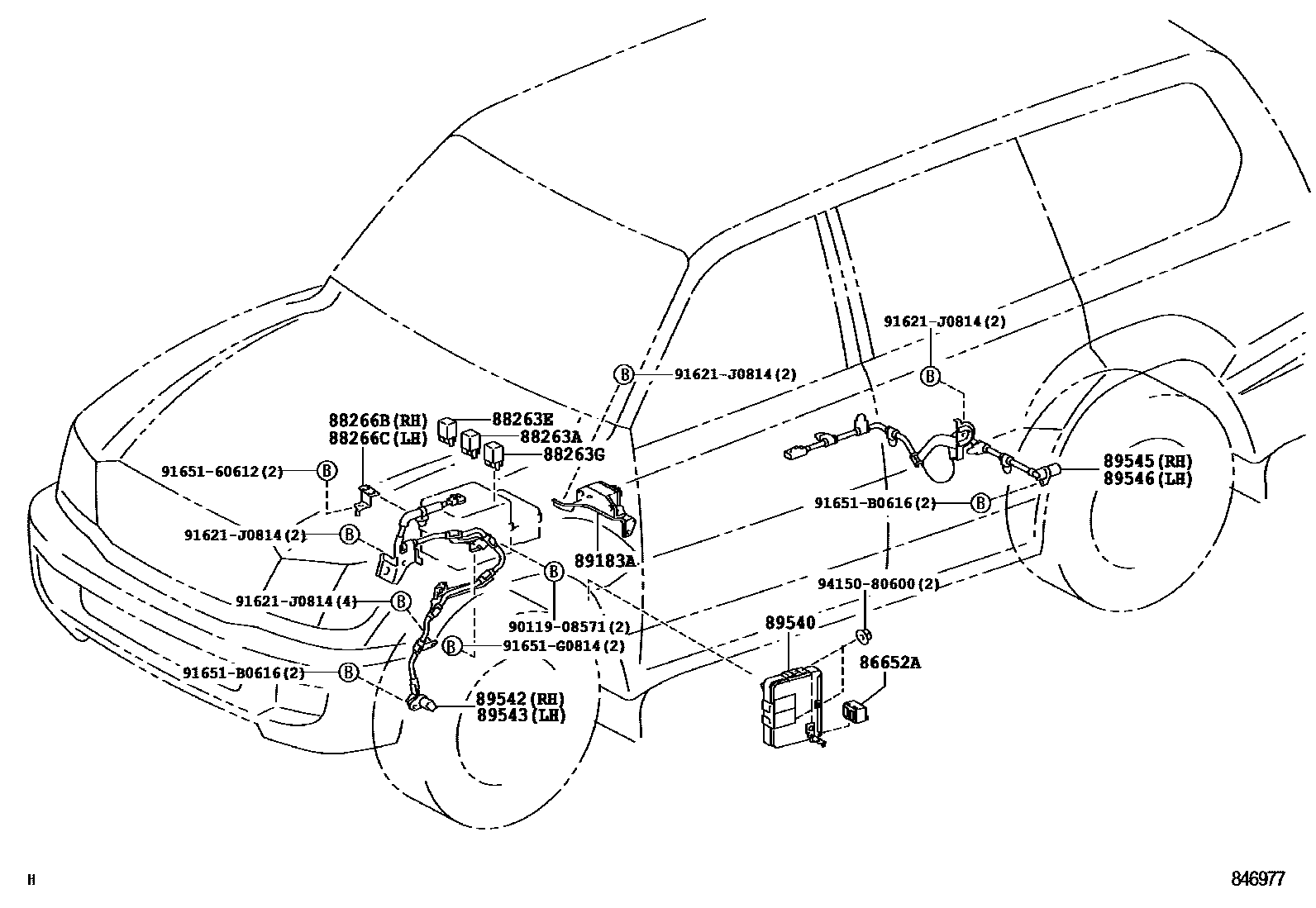

18 parts on this diagram · 1 diagram in section
