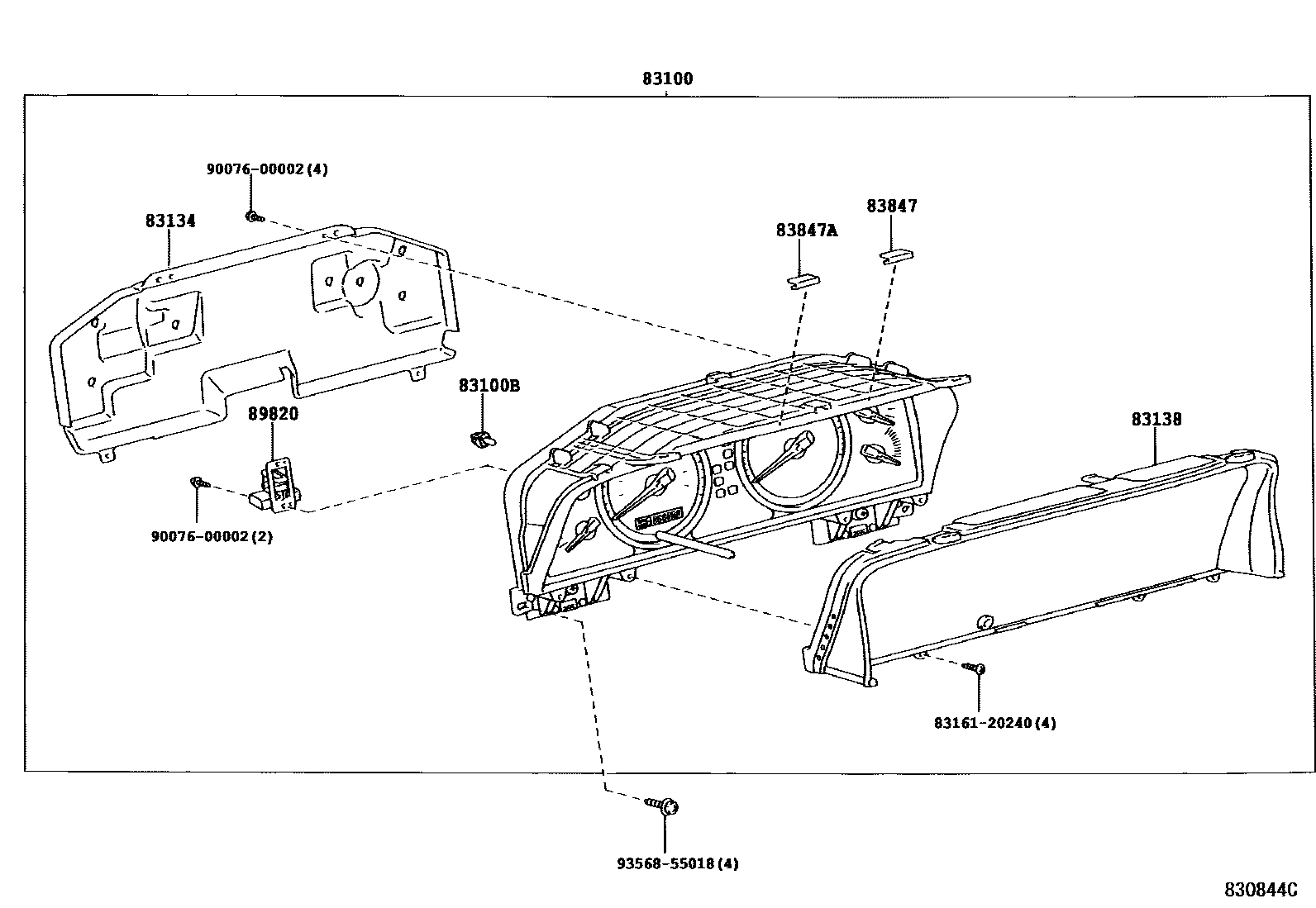

METER

0001 1 0002 1

83100METER ASSY, COMBINATION

main83800-6D801iUZJ100200505

CHINA SPEC

main83800-6D820iUZJ100200208-200505

83100BBULB, COMBINATION METER, NO.1

main90010-06032iUZJ100200505

14V 0.84W,W(SOCKET)

83134COVER, COMBINATION METER, NO.1

main83821-6D870iUZJ100200208-200505

83138GLASS, SPEEDOMETER

main83852-6D660iUZJ100200208-200505

83847CUSHION, COMBINATION SPEEDOMETER, NO.1

main83847-6D870iUZJ100200208-200505

83847ACUSHION, COMBINATION SPEEDMETER

main83848-6D870iUZJ100200208-200505

89820SENSOR ASSY, INCLINATION

main89820-60030iUZJ100200208-200505

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

9007600002

main90076-00002

9356855018

main93568-55018

10 parts on this diagram · 2 diagrams in section
