WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1SEAT 0008 1FLOOR,LUGGAGE 0009 1ROOF,BACK DOOR 0010 1BRACKET & CLAMP 0011 1BRACKET & CLAMP 0012 1CABLE BOND 0013 1CONNECTOR

82111WIRE, ENGINE ROOM MAIN

main82111-6A024iUZJ100¥37,200200208-200505

main82111-6A025iUZJ100¥37,200200505-200609

sub82111-6A026¥37,200

main82111-6A026iUZJ100¥37,200200609

82112WIRE, ENGINE ROOM, NO.2

main82112-60444iUZJ100¥168,000200208-200407

main82112-60445iUZJ100200407-200505

main82112-60600iUZJ100¥169,000200505-200607

CHINA SPEC

main82112-60601iUZJ100200607-200701

CHINA SPEC

sub82112-60602

main82112-60602iUZJ100200702

CHINA SPEC

82114WIRE, ENGINE ROOM, NO.4

main82114-60090iUZJ100¥5,100200505

82210CFUSIBLE LINK

main90982-08283iUZJ100¥440200208-200505

30A,TERM.:FEMALE,PNK

main90982-08284iUZJ100¥590200208-200505

40A,TERM.:FEMALE,GRN

main90982-08285iUZJ100¥440200208-200505

50A,FEMALE,RED,32VDC

main90982-08291iUZJ100¥630200208-200505

80A,BLACK

82261AWIRE, ALTERNATOR

main82261-60061iUZJ100¥16,200200208-200407

main82261-60141iUZJ100¥16,200200407-200505

main82261-60142iUZJ100¥16,200200505

82666BHOLDER, CONNECTOR NO.3

main82666-60060iUZJ100¥320200208-200505

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24110iUZJ100¥380200208-200505

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iUZJ100¥390200208-200708

8401

9011906005

main90119-06005¥80

91511B0614

main91511-B0614¥90

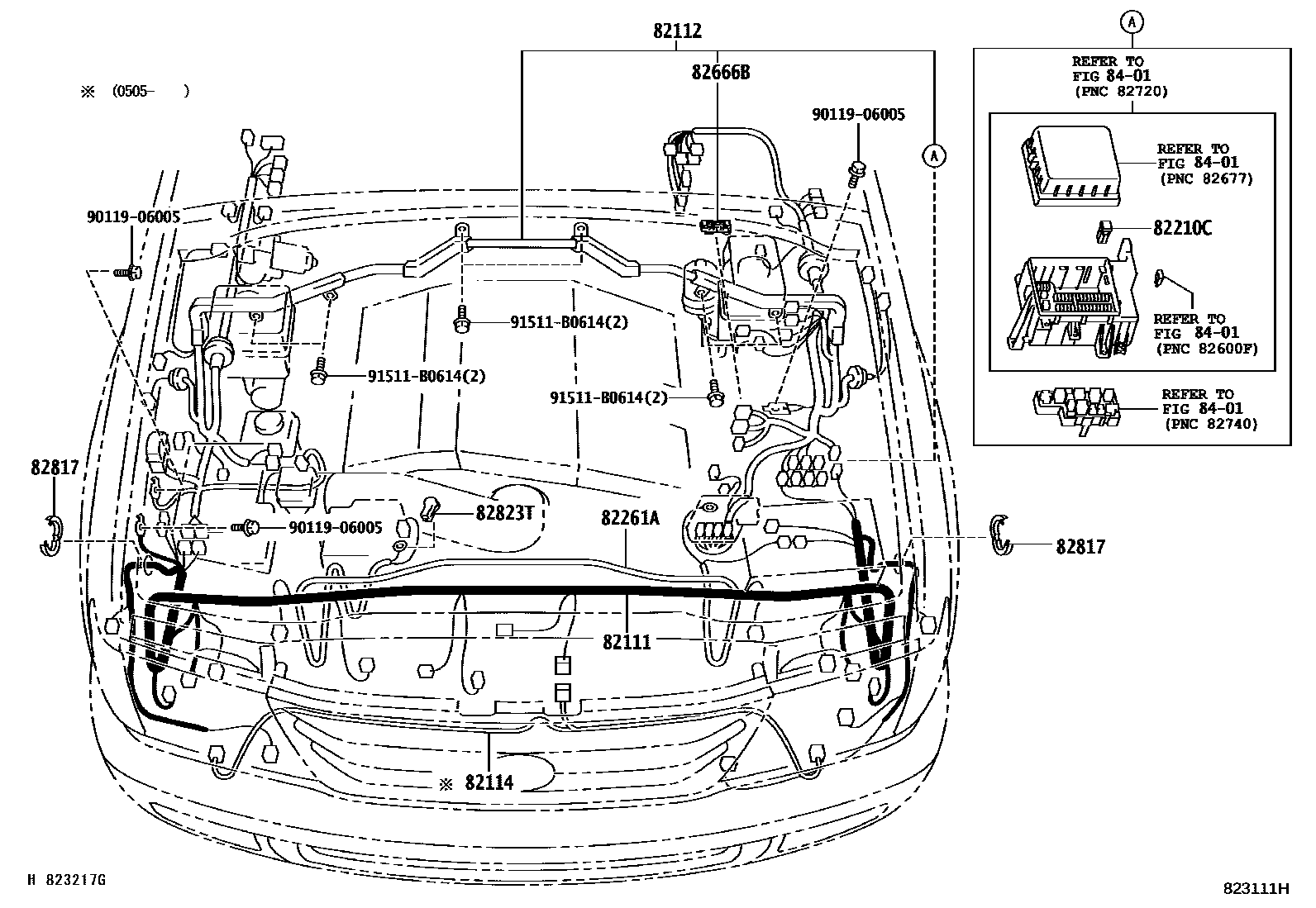

11 parts on this diagram · 13 diagrams in section
