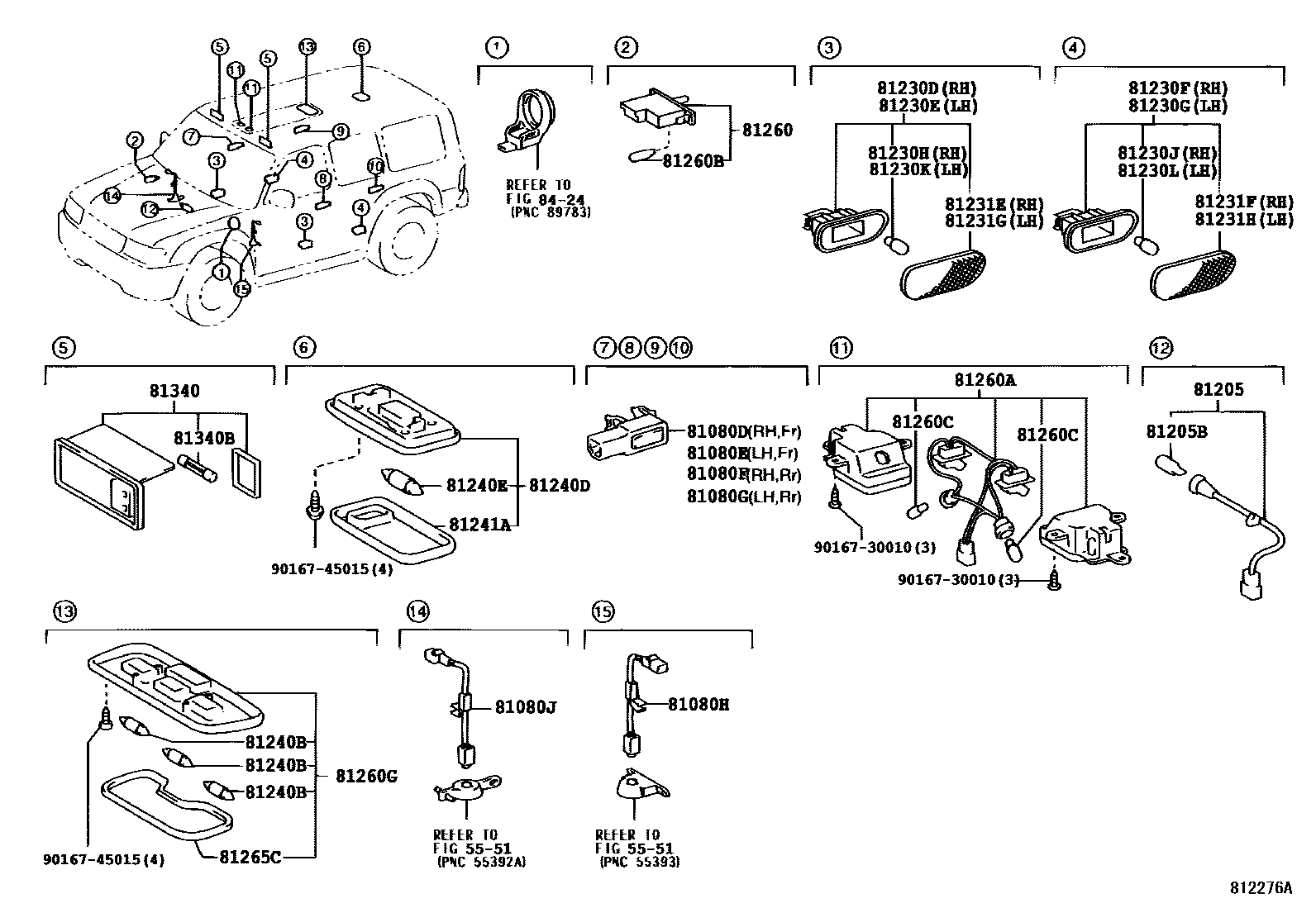

INTERIOR LAMP
5551
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230FLAMP ASSY, REAR DOOR COURTESY, RH
81230GLAMP ASSY, REAR DOOR COURTESY, LH
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
12V 3.8W
81230JBULB(FOR REAR DOOR COURTESY LAMP RH)
12V 3.8W
81230KBULB(FOR REAR DOOR COURTESY LAMP LH)
12V 3.8W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
12V 3.8W
81231ELENS (FOR FRONT DOOR COURTESY LAMP, RH)
81231FLENS (FOR REAR DOOR COURTESY LAMP, RH)
81231GLENS (FOR FRONT DOOR COURTESY LAMP, LH)
81231HLENS (FOR REAR DOOR COURTESY LAMP, LH)
81240BBULB, ROOM LAMP, NO.1
12V 8W
81240DLAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
81240EBULB, ROOM LAMP, NO.2
12V 8W
81241ALENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM0#
STONE,TRIM1#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 5W
81260GLAMP ASSY, MAP, NO.2
IVORY,TRIM0#
STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
81265CLENS, MAP LAMP, NO.1
81340LAMP ASSY, VANITY
IVORY,TRIM0#,RH
STONE,TRIM1#,RH
IVORY,TRIM0#,LH
STONE,TRIM1#,LH
81340BBULB (FOR VANITY LAMP)
12V 1.5W
8424
9016730010
main90167-30010
9016745015
main90167-45015
36 parts on this diagram · 1 diagram in section
