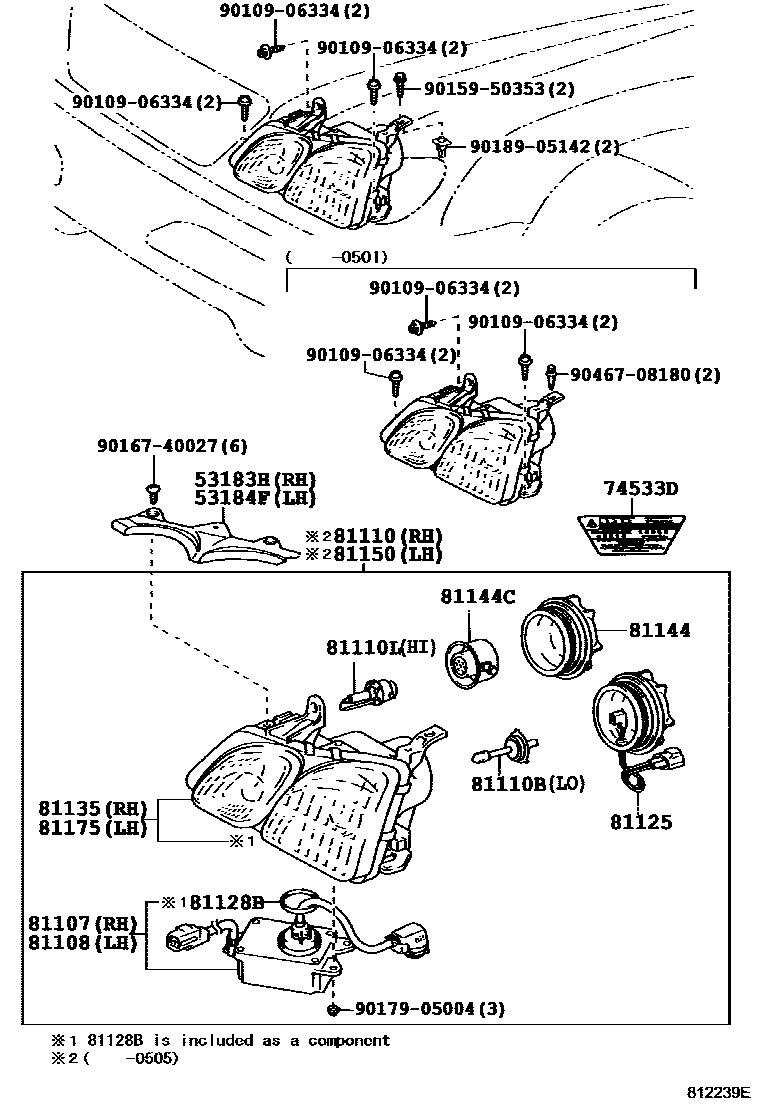

HEADLAMP

53183HSEAL, HEADLAMP COVER, RH

main53183-60090iUZJ100200208-200505

53184FSEAL, HEADLAMP COVER, LH

main53184-60080iUZJ100200208-200505

74533DLABEL, HEADLAMP VOLTAGE CAUTION

main74533-60010iUZJ100200208-200505

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81018-60010iUZJ100200208-200505

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81018-60010iUZJ100200208-200505

81110HEADLAMP ASSY, RH

main81110-6A250iUZJ100200208-200505

sub81110-6A251

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13017iUZJ100200208-200611

12V 55W,*HAL *WH

81110LBULB, DISCHARGE HEADLAMP

main90981-20005iUZJ100200208-200611

85V 35W

81125CORD, HEADLAMP

main81125-6A080iUZJ100200208-200505

81128BPACKING, HEADLAMP (FOR BALLAST)

main81132-3A430iUZJ100200208-200505

81135UNIT ASSY, HEADLAMP, RH

main81145-6A250iUZJ100200208-200611

sub81145-6A251

main81145-6A251iUZJ100200612

81144COVER, HEADLAMP, NO.1

main81135-30870iUZJ100200208-200611

main90075-66006iUZJ100200612

81144CCOVER, HEADLAMP SOCKET

main90075-99129iUZJ100200208-200505

81150HEADLAMP ASSY, LH

main81150-6A080iUZJ100200208-200505

sub81150-6A081

81175UNIT ASSY, HEADLAMP, LH

main81185-6A080iUZJ100200208-200611

sub81185-6A081

main81185-6A081iUZJ100200612

9010906334

main90109-06334

9015950353

main90159-50353

9016740027

main90167-40027

9017905004

main90179-05004

9018905142

main90189-05142

9046708180

main90467-08180

21 parts on this diagram · 1 diagram in section
