MOULDING
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75085AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH
75086MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH
75531MOULDING, WINDSHIELD, OUTER UPPER
NO PAINT REQ.
75543CMOULDING, WINDSHIELD, OUTSIDE NO.2 RH
75544AMOULDING, WINDSHIELD, OUTSIDE NO.2 LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75573BMOULDING, BACK WINDOW, OUTSIDE
75594BPAD, QUARTER GARNISH, RH
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75671MOULDING, QUARTER BELT, RH
75672MOULDING, QUARTER BELT, LH
75801MOULDING SUB-ASSY, BACK DOOR, OUTSIDE
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
7539630260CLIP, OUTSIDE MOULDING, NO.2
main75396-30260
7681760010CLIP, BACK DOOR OUTSIDE GARNISH
main76817-60010
9015940258
main90159-40258
9015960576
main90159-60576
9016450044
main90164-50044
9016660003
main90166-60003
9018306016
main90183-06016
9018905072
main90189-05072
9018906196
main90189-06196
9018906211
main90189-06211
9026904053
main90269-04053
9046711114
main90467-11114
9046711117
main90467-11117
9046712071
main90467-12071
9046712074
main90467-12074

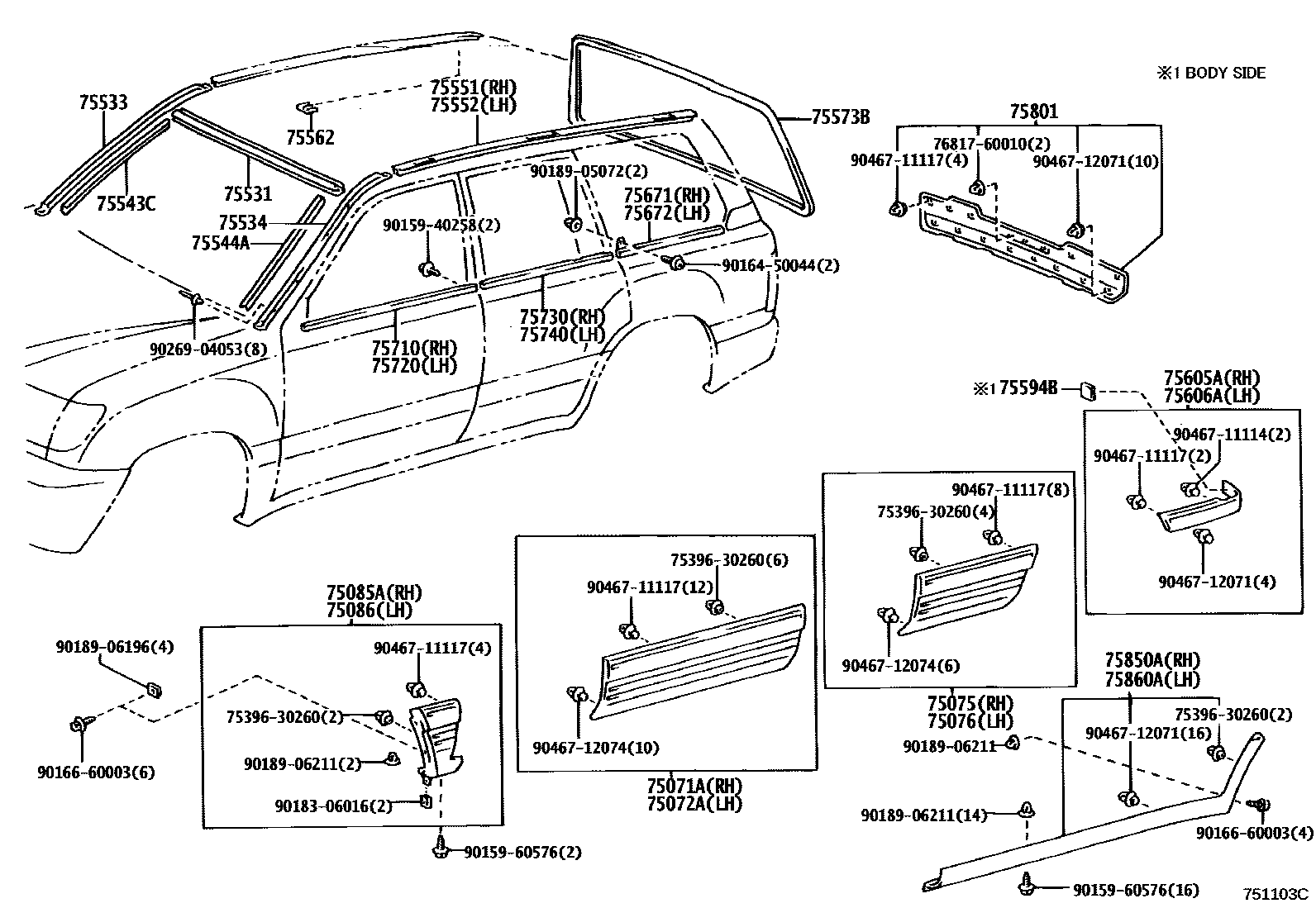

42 parts on this diagram · 1 diagram in section
