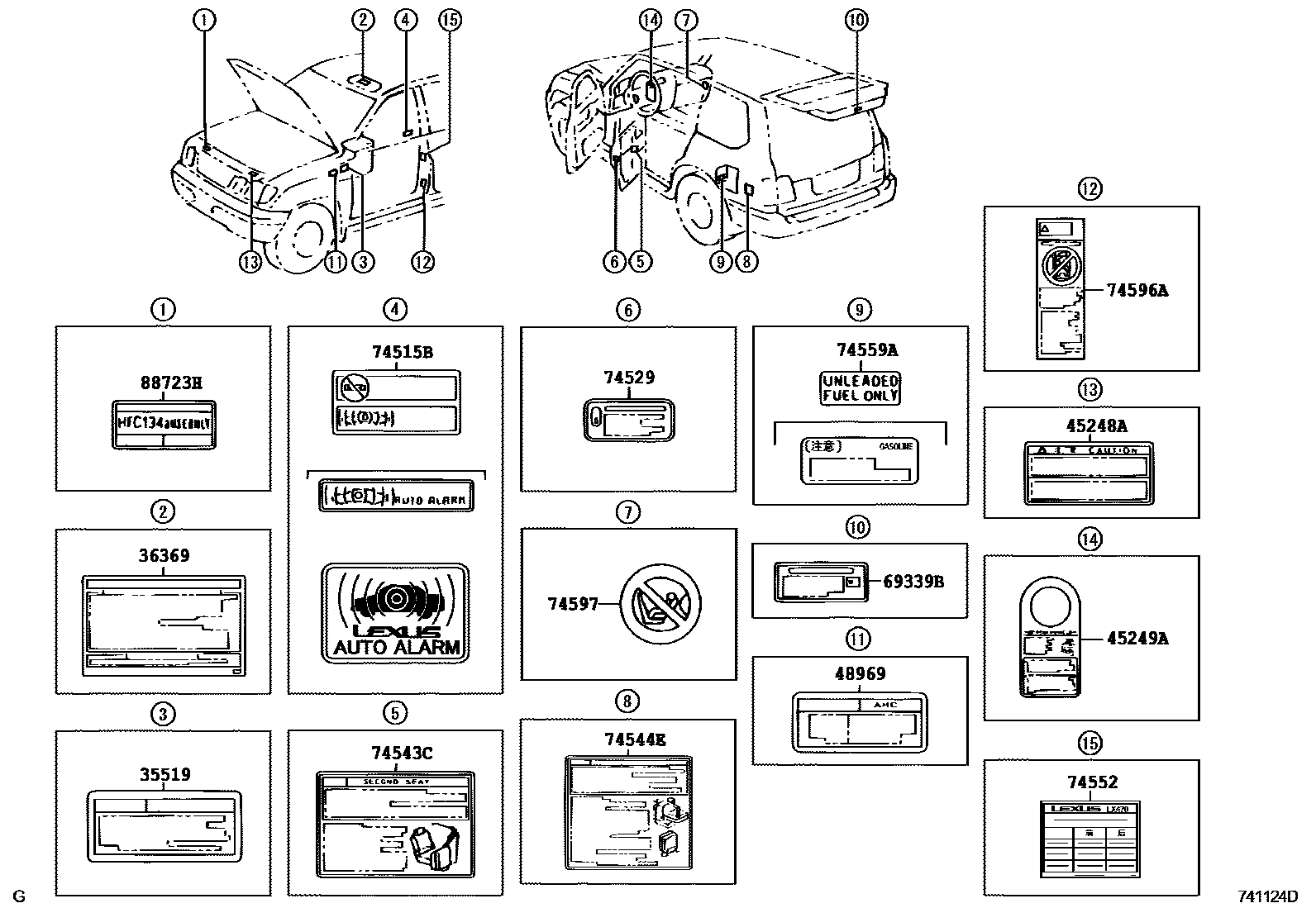

CAUTION PLATE

0001 1 0002 1

35519PLATE, AUTOMATIC TRANSMISSION CAUTION

main35519-60041iUZJ100200505

main35519-60080iUZJ100200505

CHINA SPEC

36369LABEL, TRANSFER INFORMATION

main36369-60470iUZJ100200208-200505

main36369-60600iUZJ100200505

CHINA SPEC

45248ALABEL, STEERING ACTUATOR CAUTION

main45248-60010iUZJ100200305-200505

main45248-60020iUZJ100200505

CHINA SPEC

45249ALABEL, STEERING ACTUATOR INFORMATION

main45249-60040iUZJ100200307-200505

main45249-60050iUZJ100200505

CHINA SPEC

48969LABEL, JACK UP CAUTION

main48969-60020iUZJ100200208-200505

main48969-60070iUZJ100200505

CHINA SPEC

69339BPLATE, CHILD PROTECTOR LOCK CAUTION

main69339-60020iUZJ100200702

main69339-91704iUZJ100200208-200505

74515BPLATE, THEFT WARNING

main74515-30040×2iUZJ100200701

main74515-50030×2iUZJ100200505-200612

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010×2iUZJ100200208-200505

main69339-52020×2iUZJ100200702

CHINA SPEC

74543CLABEL, REAR SEAT INFORMATION

main74543-60220iUZJ100200208-200408

main74543-60340iUZJ100200408-200505

main74543-60380iUZJ100200505

CHINA SPEC

74544ELABEL, REAR NO.2 SEAT INFORMATION

main74544-60122iUZJ100200208-200505

main74544-60160iUZJ100200505

CHINA SPEC

74552PLATE, SAFETY CAUTION

main74552-6A190iUZJ100200505

74559APLATE, FUEL CAUTION

main74559-14050iUZJ100200208-200505

main74579-33010iUZJ100200505

CHINA SPEC

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12020×2iUZJ100200208-200505

sub74596-53010

main74596-12030×2iUZJ100200505

CHINA SPEC

74597LABEL, DRIVER & PASSENGER AIRBAG CAUTION

main74598-20010iUZJ100200208-200505

88723HLABEL, COOLER SERVICE CAUTION

main88723-28220iUZJ100200208-200505

main88723-48070iUZJ100200702

CHINA SPEC

15 parts on this diagram · 2 diagrams in section
