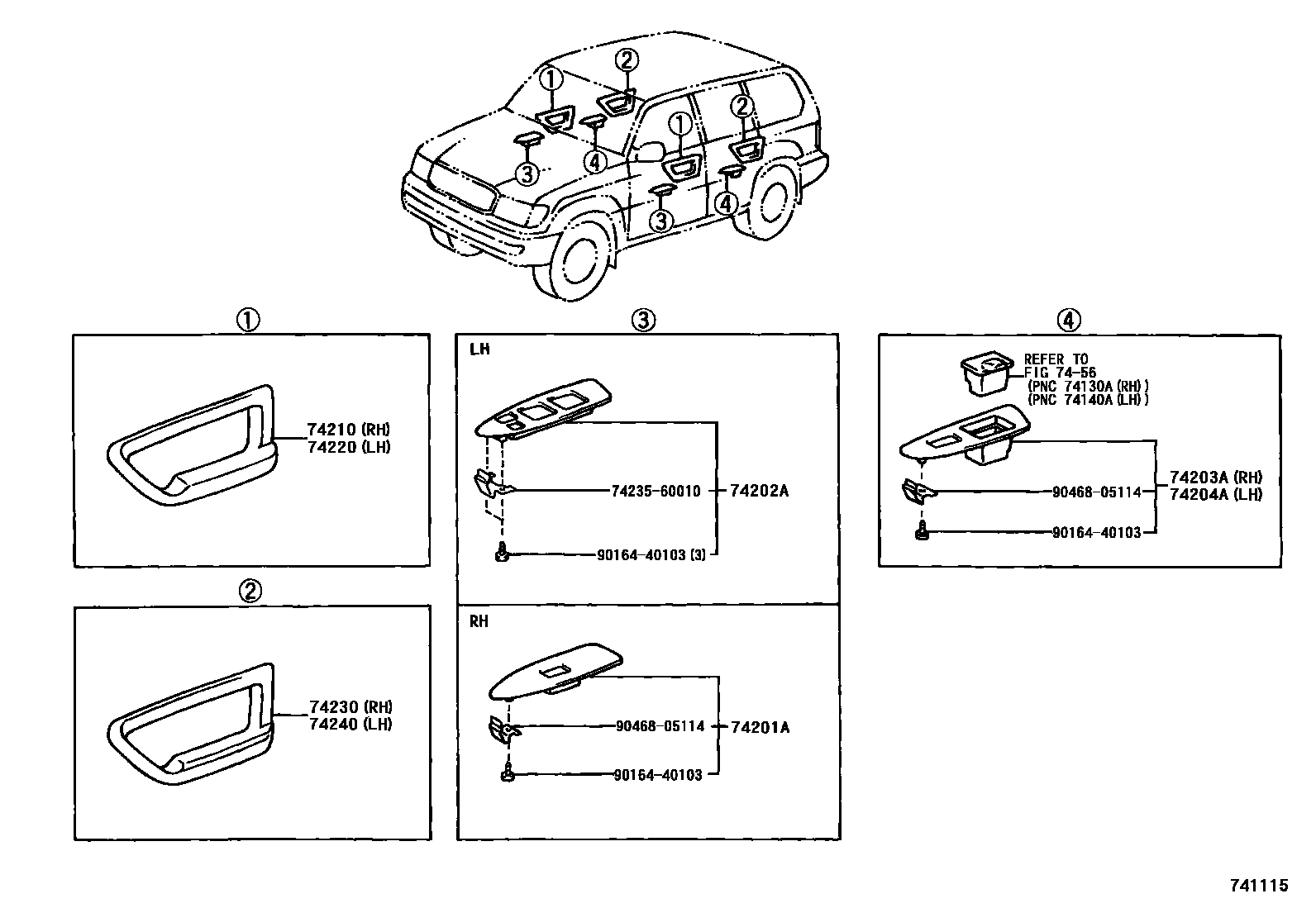

ARMREST & VISOR
74201APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH
74202APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH
74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH
74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH
74210ARMREST ASSY, FRONT, RH
DARK GRAY,TRIM1#
SANDALWOOD,TRIM0#
DARK GRAY,TRIM1#
SANDAL WOOD,TRIM0#
74220ARMREST ASSY, FRONT, LH
DARK GRAY,TRIM1#
SANDALWOOD,TRIM0#
DARK GRAY,TRIM1#
SANDAL WOOD,TRIM0#
74230ARMREST ASSY, REAR, RH
DARK GRAY,TRIM1#
SANDALWOOD,TRIM0#
DARK GRAY,TRIM1#
SANDAL WOOD,TRIM0#
74240ARMREST ASSY, REAR, LH
DARK GRAY,TRIM1#
SANDALWOOD,TRIM0#
DARK GRAY,TRIM1#
SANDAL WOOD,TRIM0#
7456
7423560010PANEL, REAR ARMREST BASE, UPPER
main74235-60010
9016440103
main90164-40103
9046805114
main90468-05114
12 parts on this diagram · 2 diagrams in section
