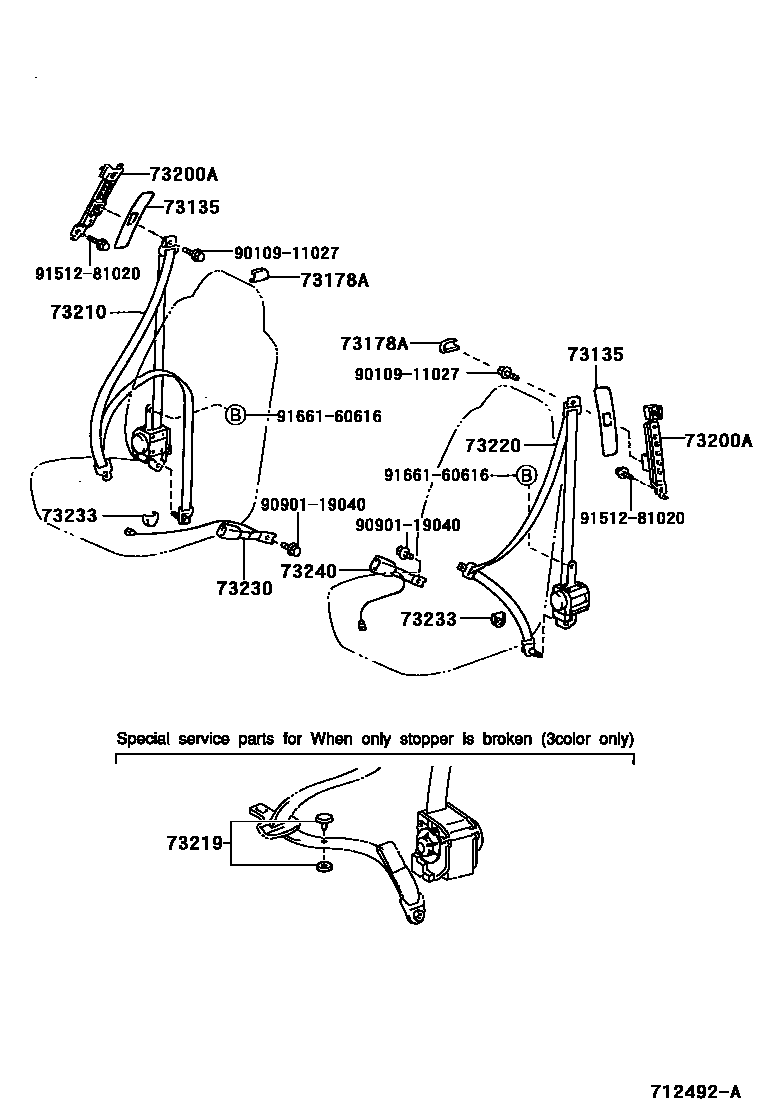

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-60030-A0iUZJ100200208-200708

IVORY,TRIM0#

main73135-60030-B0iUZJ100200208-200708

STONE,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-60020-A0iUZJ100200208-200708

IVORY,TRIM0#

sub73178-60020¥370

main73178-60020-B0iUZJ100200208-200708

STONE,TRIM1#

sub73178-60020¥370

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73290-60010iUZJ100¥5,300200208-200505

REAR NO.1 SEAT

main73290-60020iUZJ100¥5,300200208-200505

FRONT SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60403-A1iUZJ100200208-200708

IVORY,TRIM0#

main73210-60403-B1iUZJ100200208-200708

GRAY,TRIM1#

main73210-60521-A1iUZJ100200505-200708

CHINA SPEC,IVORY,TRIM0#

main73210-60521-B1iUZJ100200505-200708

CHINA SPEC,GRAY,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iUZJ100¥100200208-200505

BLACK

main73219-33020iUZJ100¥100200208-200505

GRAY

main73219-33030iUZJ100¥100200208-200505

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60323-A1iUZJ100200208-200708

IVORY,TRIM0#

main73220-60323-B1iUZJ100200208-200708

GRAY,TRIM1#

main73220-60441-A0iUZJ100200505-200708

CHINA SPEC,IVORY,TRIM0#

main73220-60441-B1iUZJ100200505-200708

CHINA SPEC,GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73240-60390-A0iUZJ100200208-200708

IVORY,TRIM0#

sub73240-60390¥5,800

main73240-60390-B0iUZJ100200208-200708

STONE,TRIM1#

sub73240-60390¥5,800

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1iUZJ100200208-200708

IVORY,TRIM0#

sub73233-33010¥300

main73233-33010-B6iUZJ100200208-200708

STONE,TRIM1#

sub73233-33010¥300

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60460-A0iUZJ100200208-200708

IVORY,TRIM0#

sub73230-60460¥5,800

main73230-60460-B0iUZJ100200208-200708

STONE,TRIM1#

sub73230-60460¥5,800

9010911027

main90109-11027¥180

9090119040

main90901-19040¥120

9151281020

main91512-81020¥170

9166160616

main91661-60616¥70

13 parts on this diagram · 3 diagrams in section
