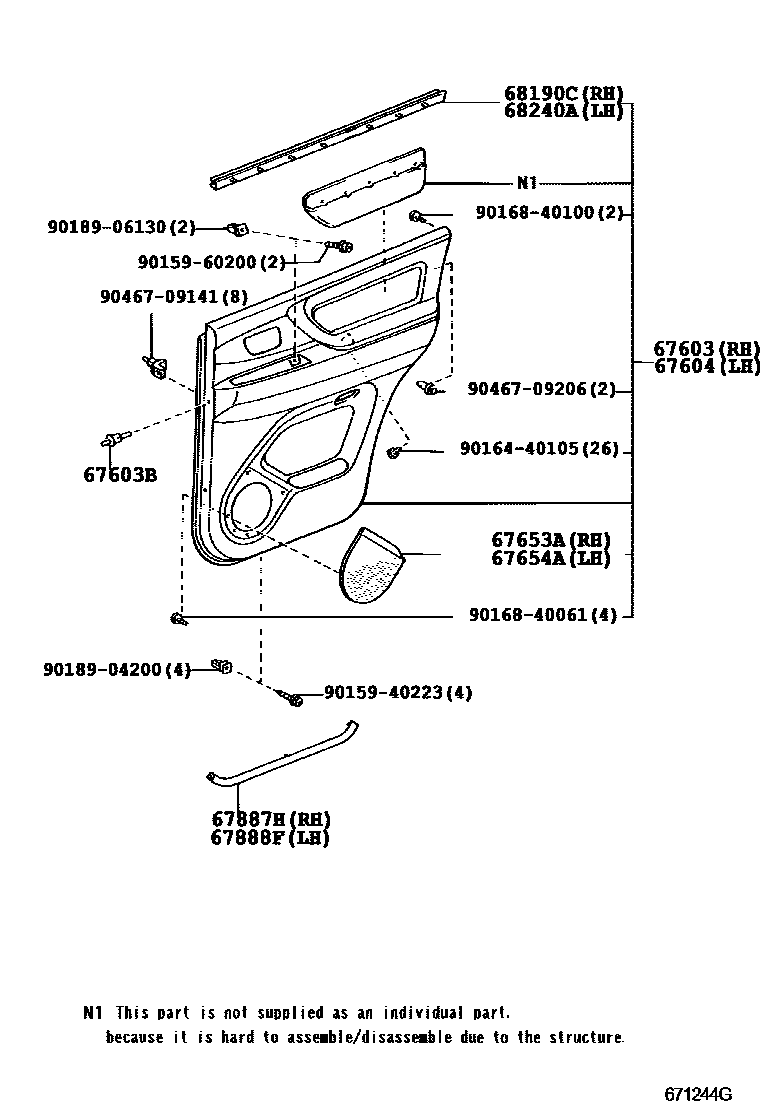

REAR DOOR PANEL & GLASS
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
IVORY,TRIM0#
STONE,TRIM1#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
IVORY,TRIM0#
STONE,TRIM1#
67653AGRILLE, SPEAKER REAR DOOR, RH
67654AGRILLE, SPEAKER REAR DOOR, LH
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH
68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
9015940223
main90159-40223
9015960200
main90159-60200
9016440105
main90164-40105
9016840061
main90168-40061
9016840100
main90168-40100
9018904200
main90189-04200
9018906130
main90189-06130
9046709141
main90467-09141
9046709206
main90467-09206
18 parts on this diagram · 2 diagrams in section
