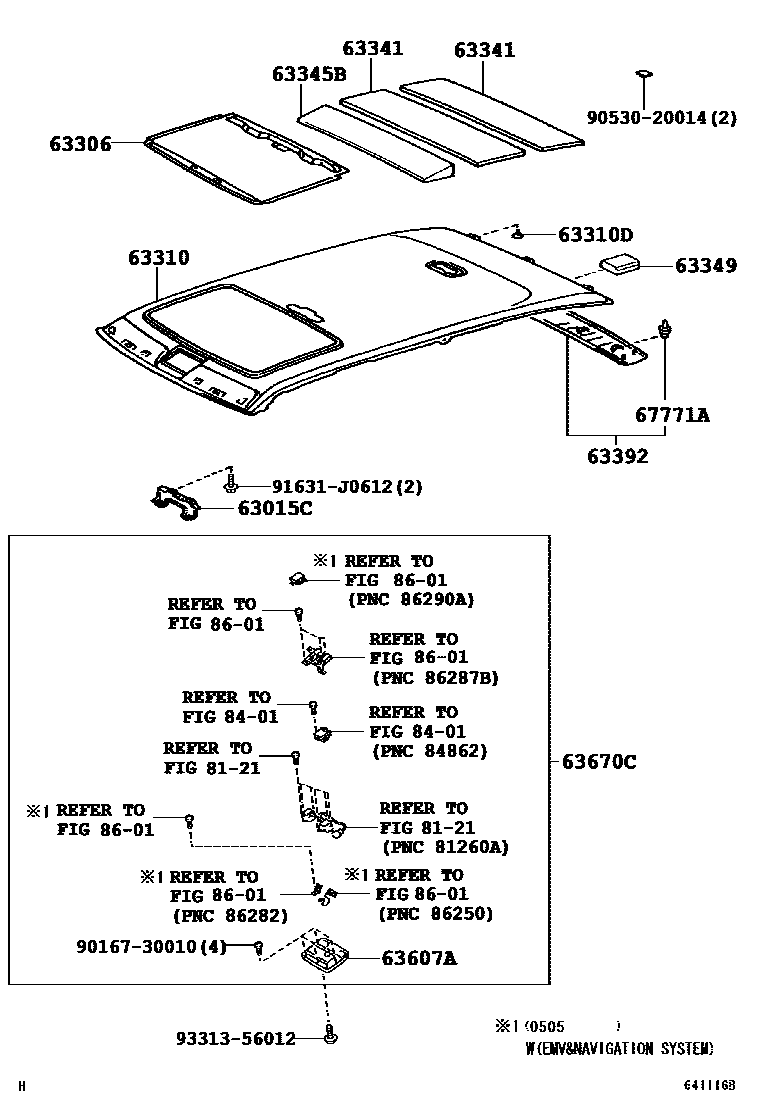

ROOF HEADLINING & SILENCER PAD
63015CBRACKET SUB-ASSY, ROOF CONSOLE
63306TRIM SUB-ASSY, SUNSHADE
IVORY,TRIM0#
STONE,TRIM1#
CHINA SPEC,IVORY,TRIM0#
CHINA SPEC,STONE,TRIM1#
63310HEADLINING ASSY, ROOF
IVORY,TRIM0#
STONE,TRIM1#
63310DCLIP, ROOF HEADLINING
63341PAD, ROOF SILENCER, NO.1
63345BPAD, ROOF SILENCER, CENTER
63349PAD, ROOF SILENCER, NO.9
63392TRIM, ROOF HEADLINING, REAR
63607APLATE SUB-ASSY, MAP LAMP
IVORY,TRIM0#
STONE,TRIM1#
63670CPLATE ASSY, MAP LAMP
W(EMV & NAVIGATION SYSTEM),IVORY,TRIM0#
W(EMV & NAVIGATION SYSTEM),STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
67771ARETAINER, ROOF HEADLINING
8121
8401
8601
9016730010
main90167-30010
9053020014
main90530-20014
91631J0612
main91631-J0612
9331356012
main93313-56012
18 parts on this diagram · 1 diagram in section
