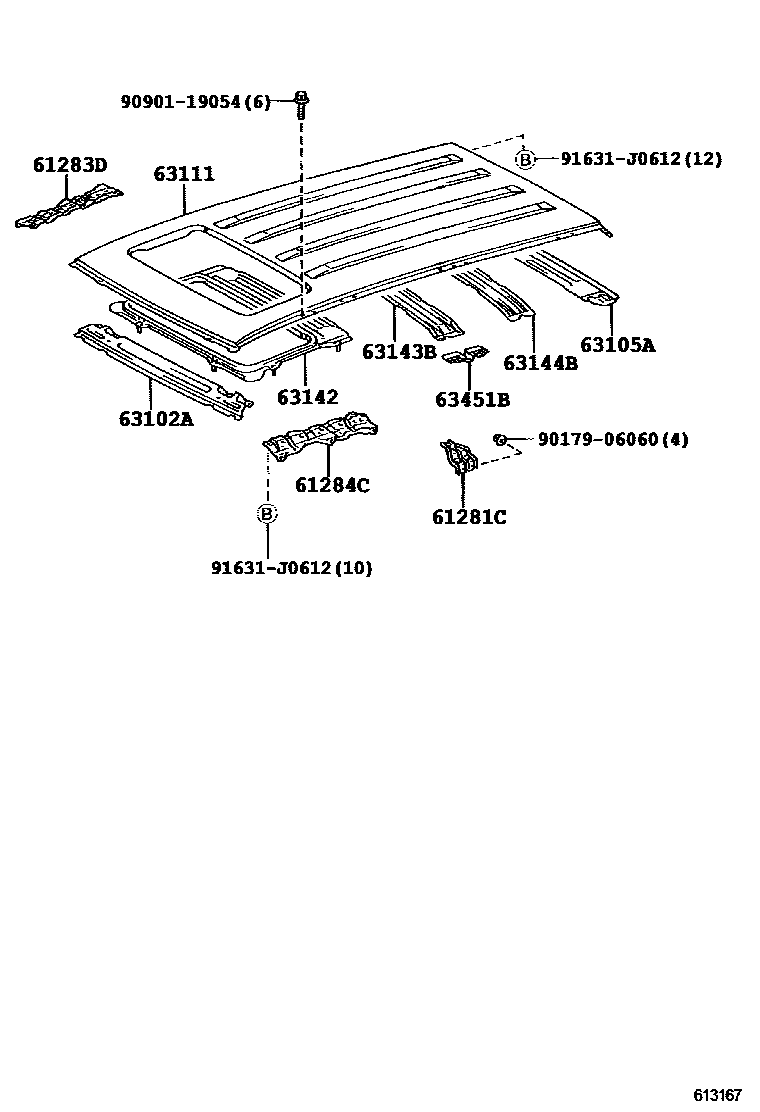

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1W(ROOF RAIL)

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60040iUZJ100200208-200505

61283DBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH

main61283-60021iUZJ100200208-200505

61284CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH

main61284-60021iUZJ100200208-200505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60070iUZJ100200208-200505

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60181iUZJ100200208-200505

63111PANEL, ROOF

main63111-60461iUZJ100200208-200505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60020iUZJ100200208-200505

W(MOON ROOF)

main63104-60040iUZJ100200208-200505

W(MOON ROOF & ROOF CARRIER)

main63143-60030iUZJ100200208-200505

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-60050iUZJ100200208-200505

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63127-60020iUZJ100200208-200505

63451BREINFORCEMENT, ROOF RACK, NO.1

main63451-60040iUZJ100200208-200708

9017906060

main90179-06060

9090119054

main90901-19054

91631J0612

main91631-J0612

13 parts on this diagram · 3 diagrams in section
