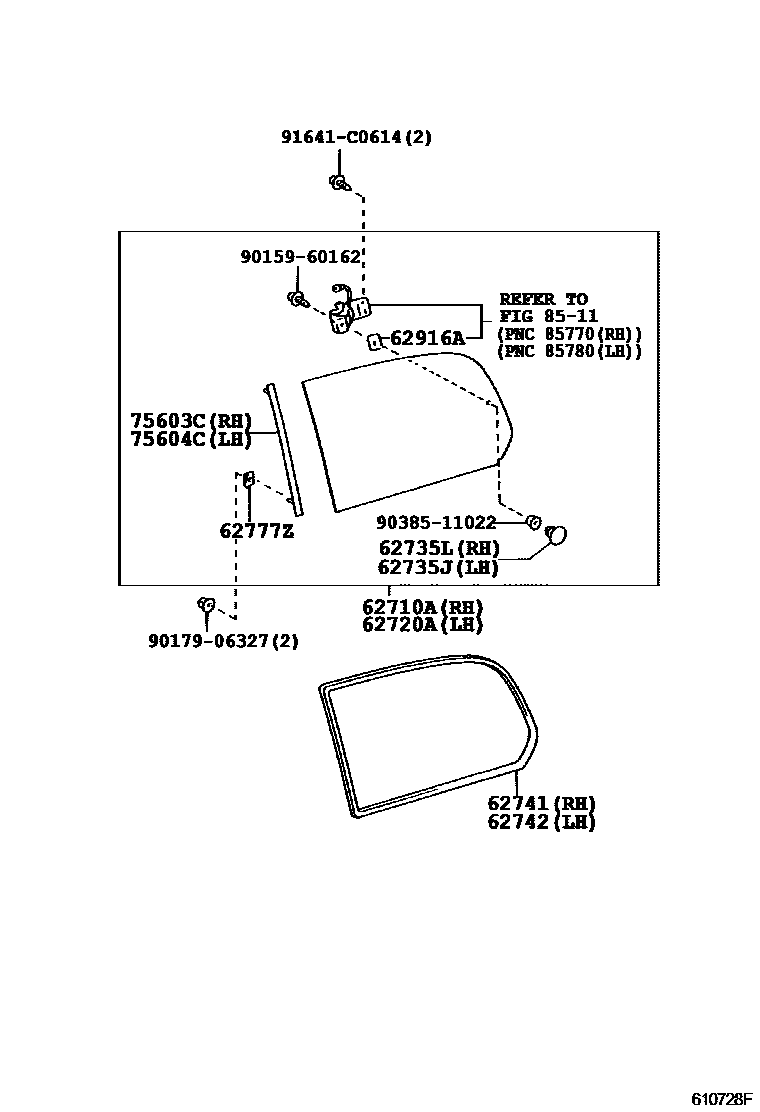

SIDE WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-60822iUZJ100200208-200301

*UVCTT,T=4.0,GREEN

sub62710-60823

main62710-60824iUZJ100200301-200708

*UVCTT,T=4.0,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-60732iUZJ100200208-200301

*UVCTT,T=4.0,GREEN

sub62720-60733

main62720-60734iUZJ100200301-200708

*UVCTT,T=4.0,GREEN

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-28040iUZJ100200208-200505

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-28040iUZJ100200208-200505

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-60090iUZJ100200208-200403

sub62741-60091

main62741-60091iUZJ100200403-200505

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-60080iUZJ100200208-200403

sub62742-60081

main62742-60081iUZJ100200403-200505

62777ZPLATE, QUARTER WINDOW RETAINER

main62777-60010iUZJ100200208-200708

62916APAD, SIDE WINDOW LOCK

main62916-60010iUZJ100200208-200505

75603CMOULDING,QUARTER WINDOW,OUTSIDE FRONT RH

main75641-60021iUZJ100200208-200708

75604CMOULDING,QUARTER WINDOW,OUTSIDE FRONT LH

main75642-60021iUZJ100200208-200708

8511

9015960162

main90159-60162

9017906327

main90179-06327

9038511022

main90385-11022

91641C0614

main91641-C0614

15 parts on this diagram · 1 diagram in section
