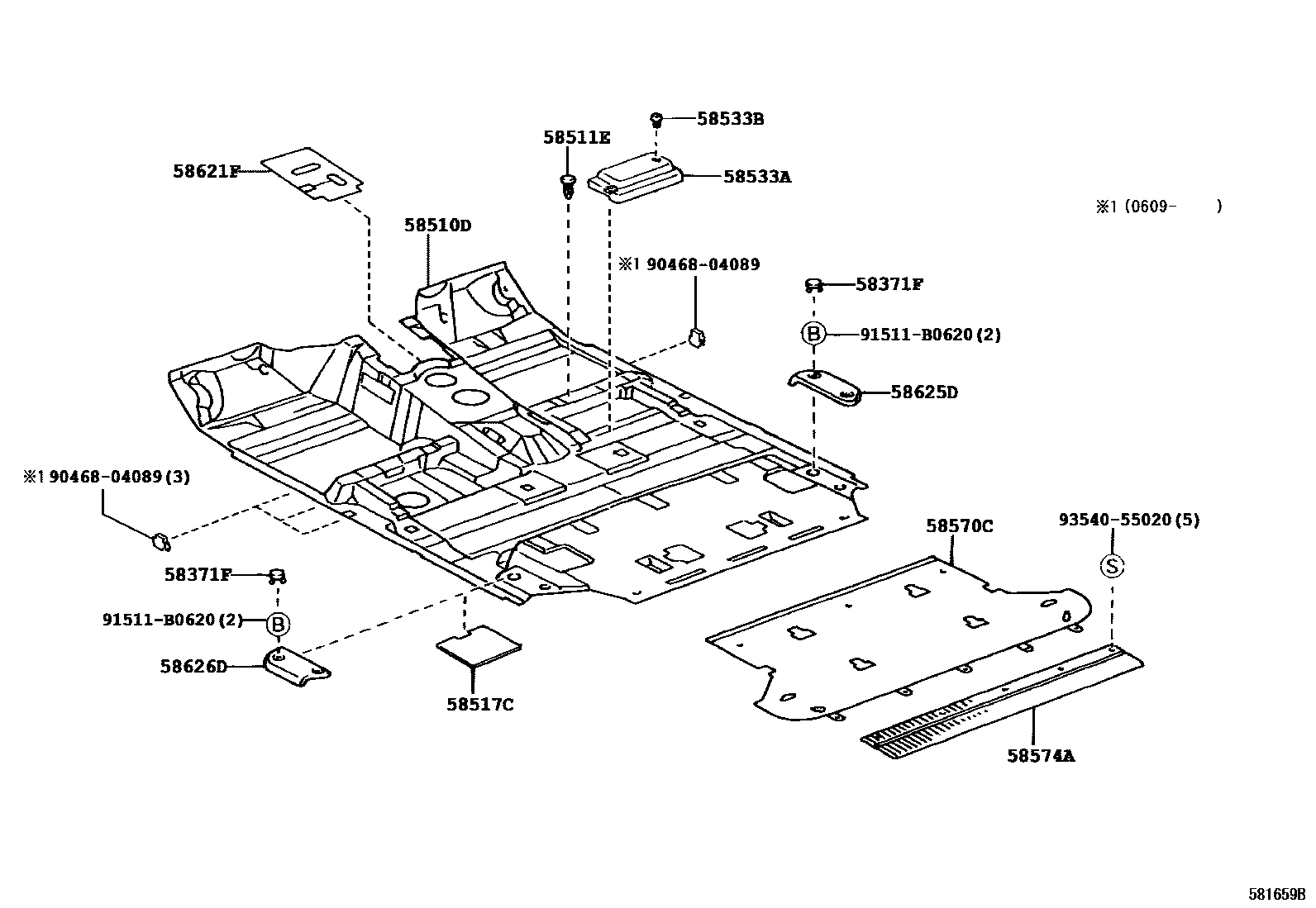

FLOOR MAT & SILENCER PAD
58371FCOVER, REAR FLOOR STEP, NO.1
58510DCARPET ASSY, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
58517CPAD, FRONT FLOOR MAT
58533ACOVER, FLOOR CARPET, CENTER RH
IVORY,TRIM0#
STONE,TRIM1#
58533BCLIP(FOR FLOOR CARPET COVER)
IVORY,TRIM0#
STONE,TRIM1#
58570CCARPET ASSY, REAR FLOOR
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
58621FSILENCER, CENTER CONSOLE, NO.1
58625DPLATE, REAR FLOOR MAT, NO.1
58626DPLATE, REAR FLOOR MAT, NO.2
9046804089
main90468-04089
91511B0620
main91511-B0620
9354055020
main93540-55020
14 parts on this diagram · 1 diagram in section
